~ Pass the front flasher light leads (left and right>
and headlight lead through
the headlight cover
hole.
[§] Pass the left handlebar switch lead behind the
upper bracket.
[g Fasten the left handlebar switch lead with a
plastic locking tie.
[Q] Pass the speedometer cable, speedometer
light leads and fuel tank breather hose through
the fuel tank hole.
o h.---~

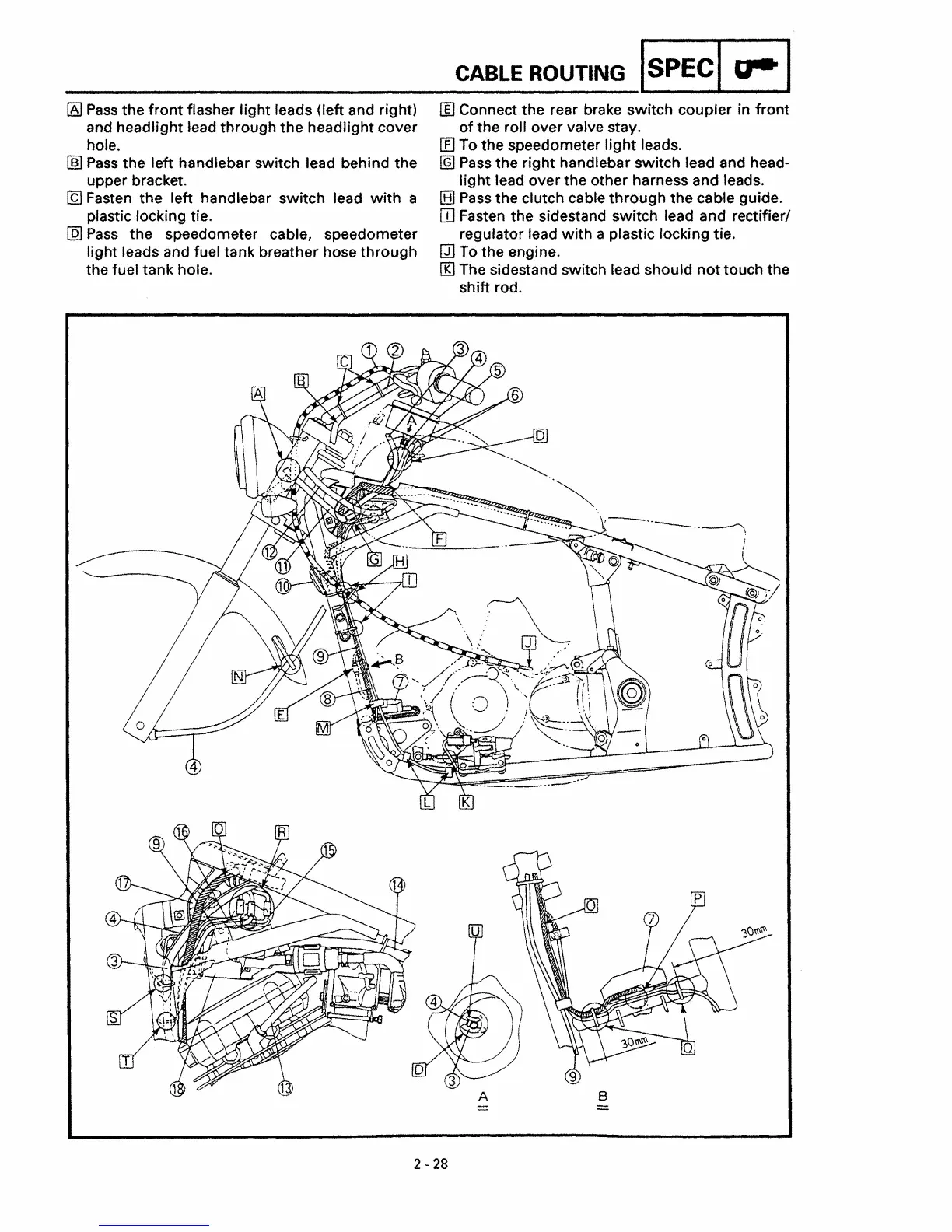

CABLE ROUTING ISPECI ~ I
(§J Connect the rear brake switch coupler in front
of the roll over valve stay.
[f] To the speedometer light leads.
[§] Pass the right handlebar switch lead and head-
light lead over the other harness and leads.
[8] Pass the clutch cable through the cable guide.
rn Fasten the sidestand switch lead and rectifier/
regulator lead
with a plastic locking tie.
Q) To the engine.
00 The sidestand switch lead should not touch the
shift rod.
