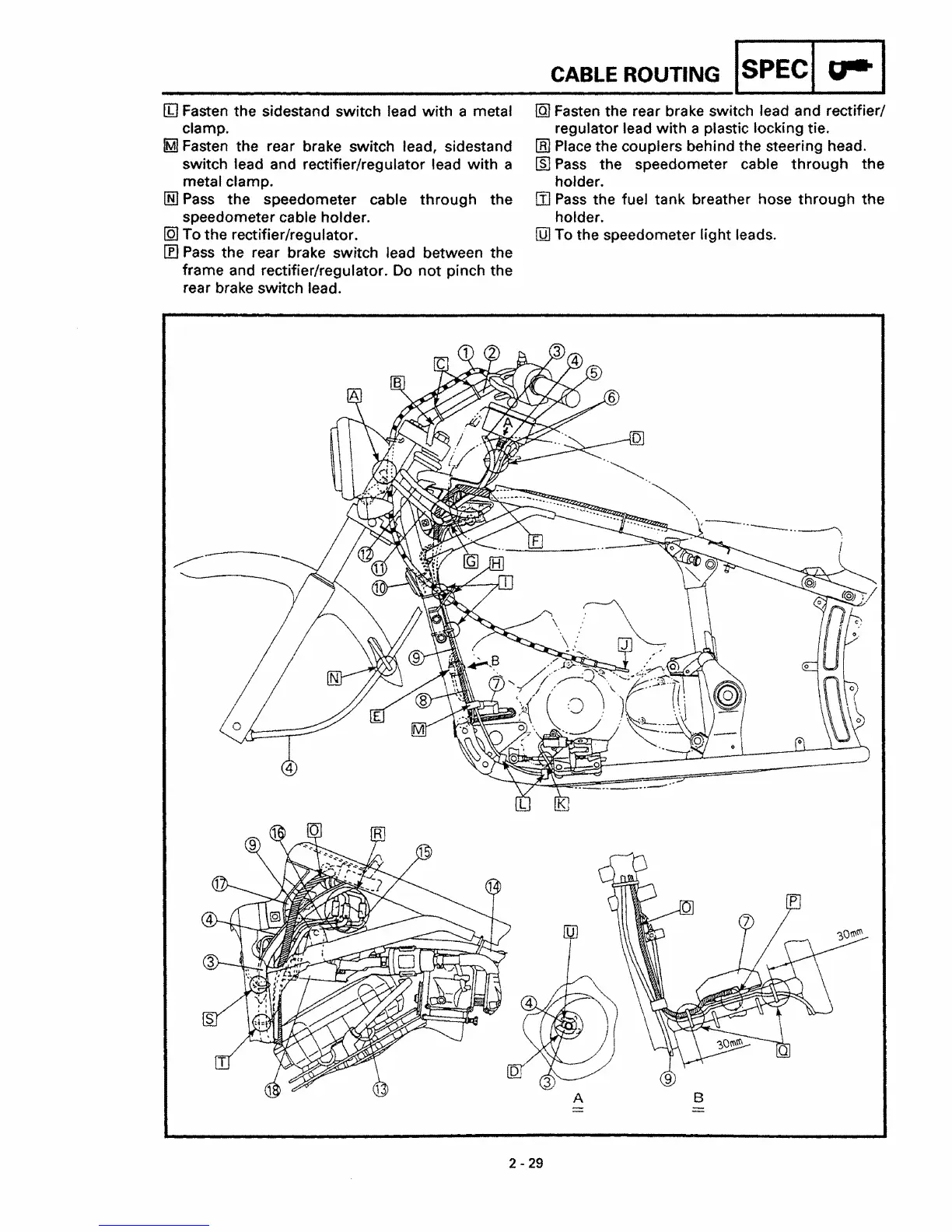

I!J
Fasten the sidestand switch lead
with
a metal
clamp.
1M!
Fasten the rear brake switch lead, sidestand
switch lead and rectifier/regulator lead
with
a
metal clamp.
lID
Pass
the speedometer cable through the
speedometer cable holder.
[Q]
To the rectifier/regulator.
[f]
Pass
the rear brake switch lead between the
frame and rectifier/regulator.
Do
not
pinch the
rear brake switch lead.
CABLE
ROUTING
ISPECI
U-I
[QJ
Fasten the rear brake switch lead and rectifier/
regulator lead
with
a plastic locking tie.
lB)
Place the couplers behind the steering head.
[§]
Pass
the speedometer cable
through
the
holder.
[I]
Pass
the fuel tank breather hose through the
holder.
[Q]
To the speedometer light leads.
A
=
B
2 - 29
To Next Page
