@ Starter relay
@ Carburetor heater relay
@ Neutral switch lead
@> Pickup coil lead
@ A.C. magneto lead
@ Battery negative (-) lead
@) Starter motor lead
® Starting circuit cut-off relay
~ Fuel tank breather hose
@ Speedometer cable
@ Ignitor unit
<D Frame bracket
® Wire harness
® Fuse box
@ Battery positive (+) lead
® Spark plug lead
® Starter cable
(J) Right handlebar switch lead
® Brake hose
@ Throttle cables
@) Thermo switch lead
® Flasher light relay

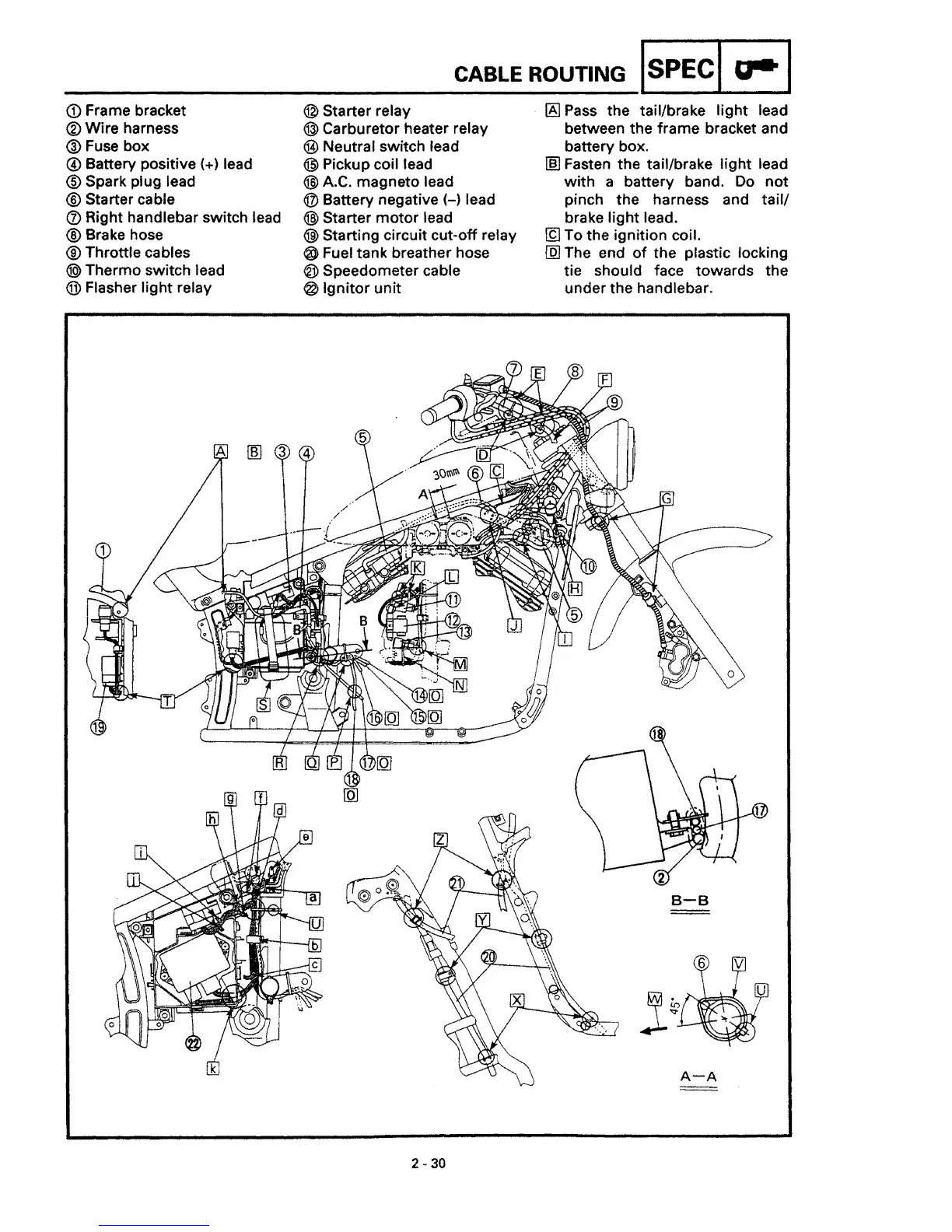

CABLE ROUTING ISPECI U-I
~ Pass the tail/brake light lead
between the frame bracket and
battery box.
1m Fasten the tail/brake light lead
with a battery band. Do not
pinch the harness and tail!
brake light lead.
f9 To the ignition coil.
(Qj The end of the plastic locking
tie should face towards the
under the handlebar.
A-A
