rID

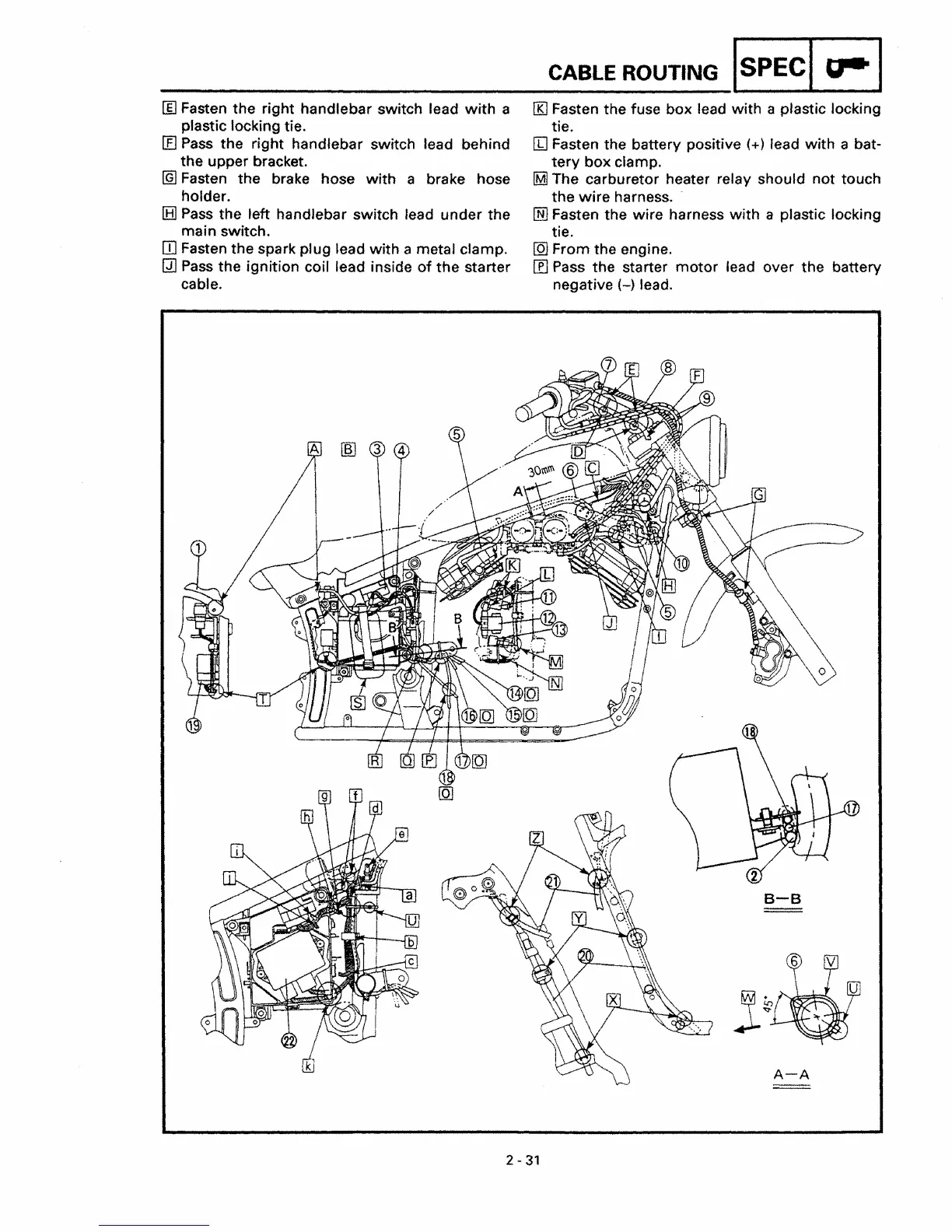

Fasten the right handlebar switch lead
with
a
plastic locking tie.
[E]
Pass
the
right handlebar switch lead behind
the upper bracket.
[§]
Fasten the brake hose
with
a brake hose
holder.
[8]
Pass
the left handlebar switch lead
under
the
main switch.
OJ
Fasten
the
spark plug lead
with
a metal clamp.
Q]
Pass
the
ignition coil lead inside
of
the
starter
cable.
CABLE
ROUTING I
SPEC
I
U-I
IKl
Fasten the fuse
box
lead
with
a plastic locking
tie.
[]J Fasten the battery positive
(+)
lead
with
a bat-
tery
box
clamp.
!M]
The carburetor heater relay should
not
touch
the
wire
harness.
[fD
Fasten the
wire
harness
with
a plastic locking
tie.
[Q]
From
the engine.
[fJ
Pass the starter
motor
lead over
the
battery
negative
(-)
lead.
A-A
