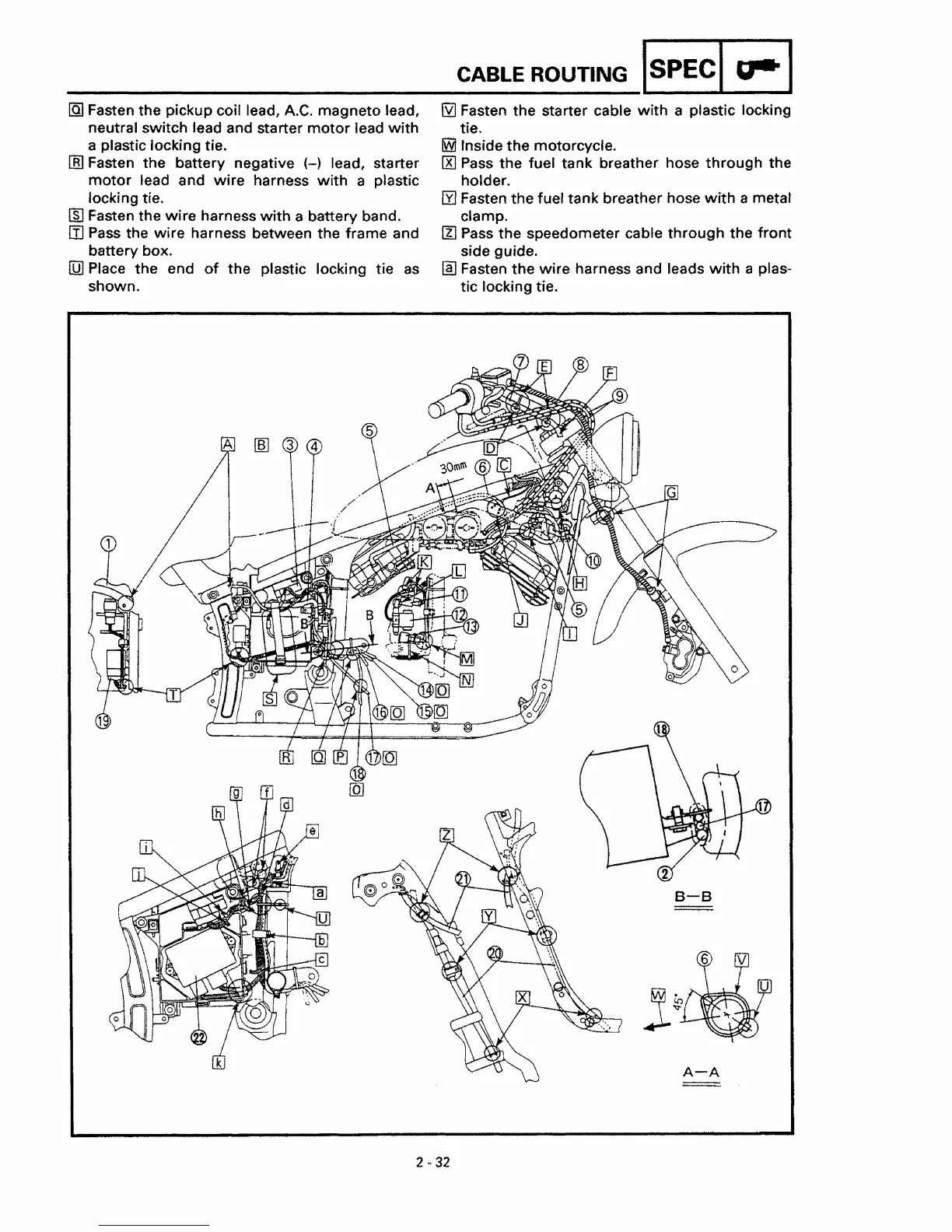

lQ] Fasten the pickup coil lead, A.C. magneto lead,
neutral switch lead and starter
motor lead with
a plastic locking tie.
[ID Fasten the battery negative (-) lead, starter
motor lead and wire harness with a plastic
locking tie.
[§] Fasten the wire harness with a battery band.
[j] Pass the wire harness between the frame and
battery box.
[Q] Place the end of the plastic locking tie as
shown.
rID 3 4
CABLE ROUTING I SPEC I ~ I
lYJ Fasten the starter cable with a plastic locking
tie.
~ Inside the motorcycle.
00 Pass the fuel tank breather hose through the
holder.
[YJ Fasten the fuel tank breather hose with a metal
clamp.
~ Pass the speedometer cable through the front
side guide.
@] Fasten the wire harness and leads with a plas"
tic locking tie.
A-A
2" 32
