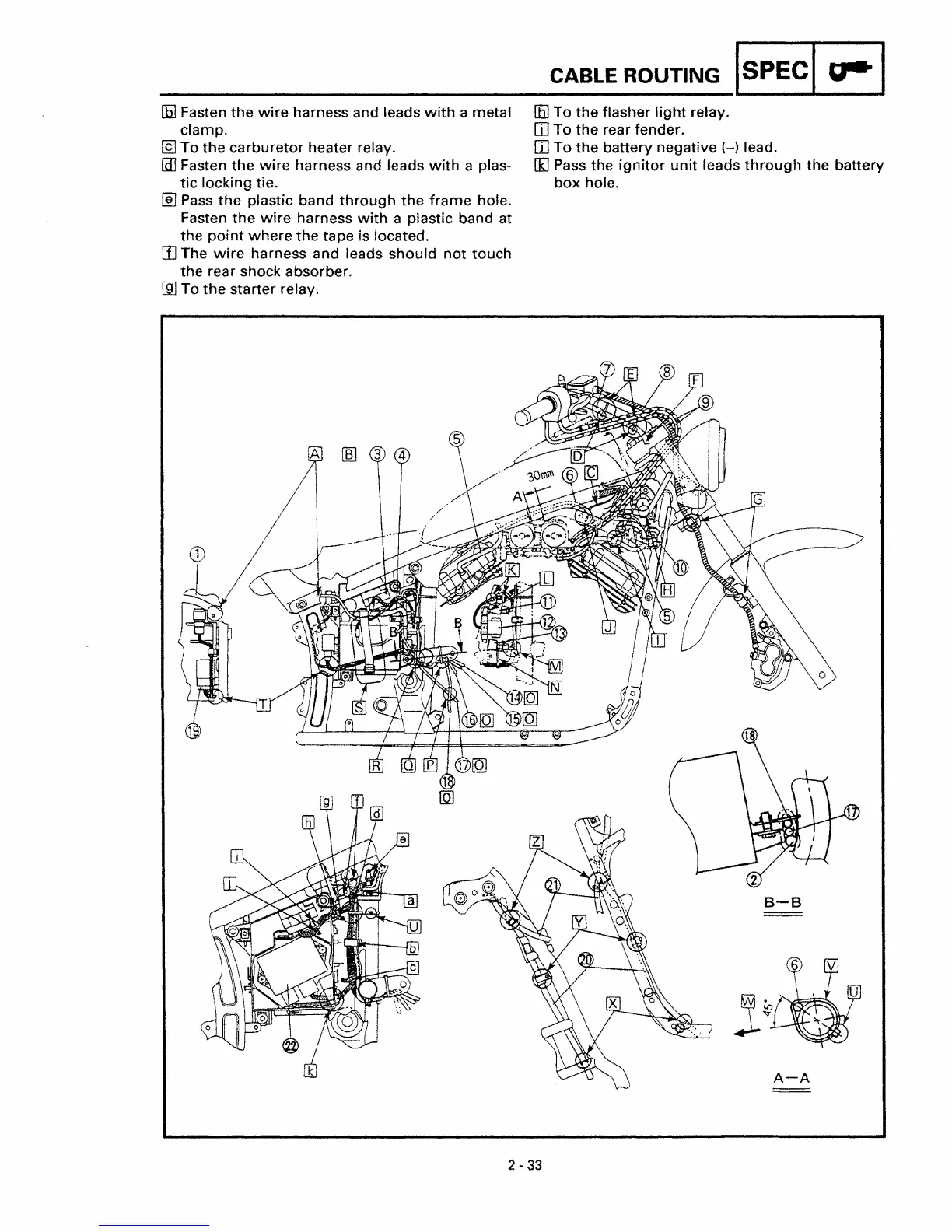

IE] Fasten the wire harness and leads with a metal
clamp.
@] To the carburetor heater relay.
(ill Fasten the wire harness and leads with a plas-
tic locking tie.
Pass the plastic band through the frame hole.
Fasten
the wire harness with a plastic band at
the
point where the tape is located.
rn The wire harness and leads should not touch
the rear shock absorber.
[ID To the starter relay.
[ID 3 4
CABLE ROUTING ISPECI a-I
[fi} To the flasher light relay.
rn To the rear fender.
OJ To the battery negative (-) lead.
[kJ Pass the ignitor unit leads through the battery
box hole.
A-A
