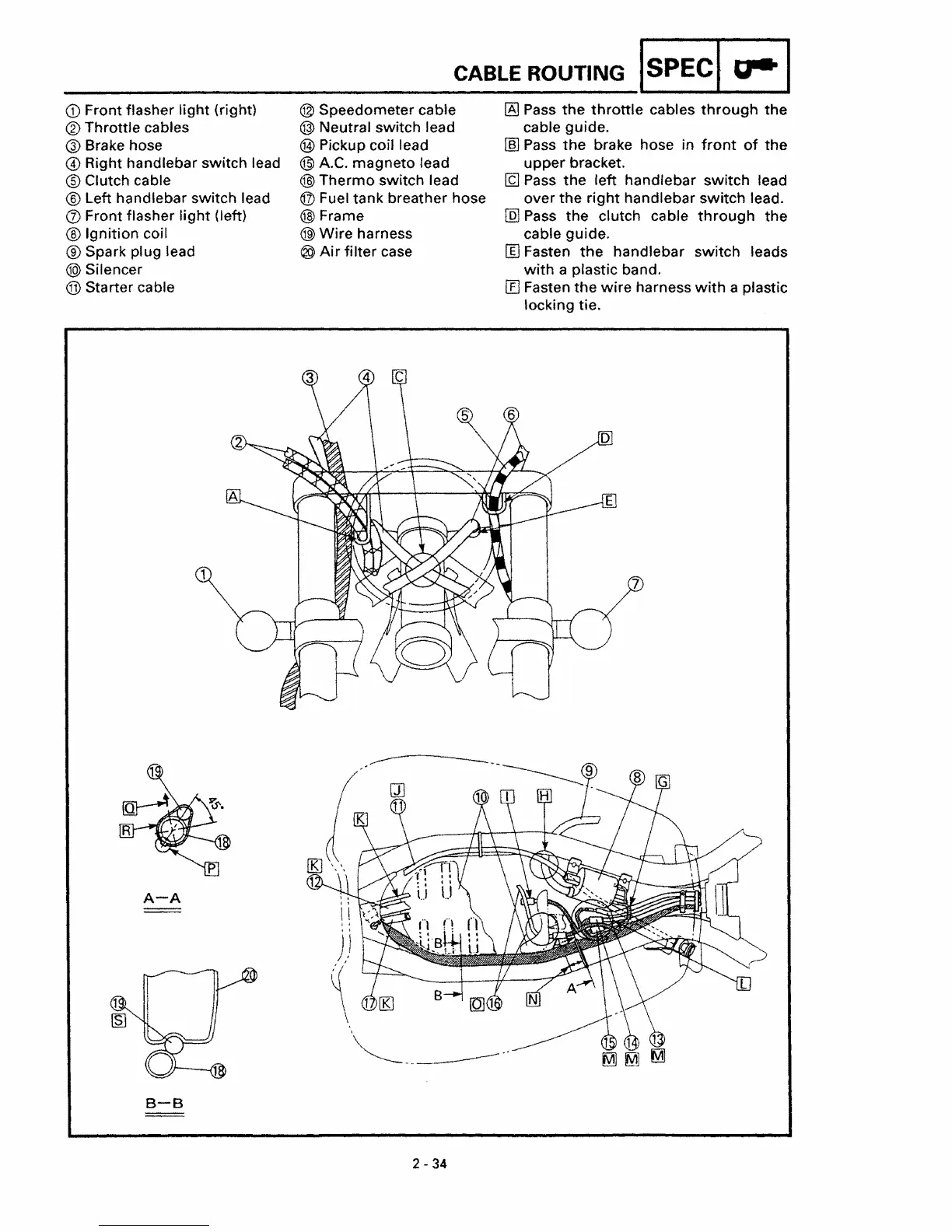

CABLE ROUTING ISPECI a-I
G) Front flasher light (right)
® Throttle cables
® Brake hose
@ Right handlebar switch lead
® Clutch cable
® Left handlebar switch lead
(J) Front flasher light (left)
® Ignition coil
® Spark plug lead
@ Silencer
® Starter cable
® Speedometer cable
@ Neutral switch lead
® Pickup coil lead
@ A.C. magneto lead
@) Thermo switch lead
@ Fuel tank breather hose
@> Frame
@ Wire harness
® Air filter case
[AJ Pass the throttle cables through the
cable guide.
rnJ Pass the brake hose in front of the
upper bracket.
[g Pass the left handlebar switch lead
over the
right handlebar switch lead.
[QJ Pass the clutch cable through the
cable guide.
Fasten
the handlebar switch leads
with a plastic band.
!£] Fasten the wire harness with a plastic
locking tie.
7
A-A
B-B
2 - 34
