[§1 To the ignition coil.
!BJ Pass the starter cable between the ignition coil
and spark plug lead.
IT] To the throttle position sensor (TPS).
Q] To the carburetor.
[K] To the fuel tank.
III Pass the neutral switch lead, pickup coil lead
and
A.C. magneto lead under the ignition coil
lead,
thermo switch lead and throttle position
sensor
(TPS) lead.
lMJ From the engine.

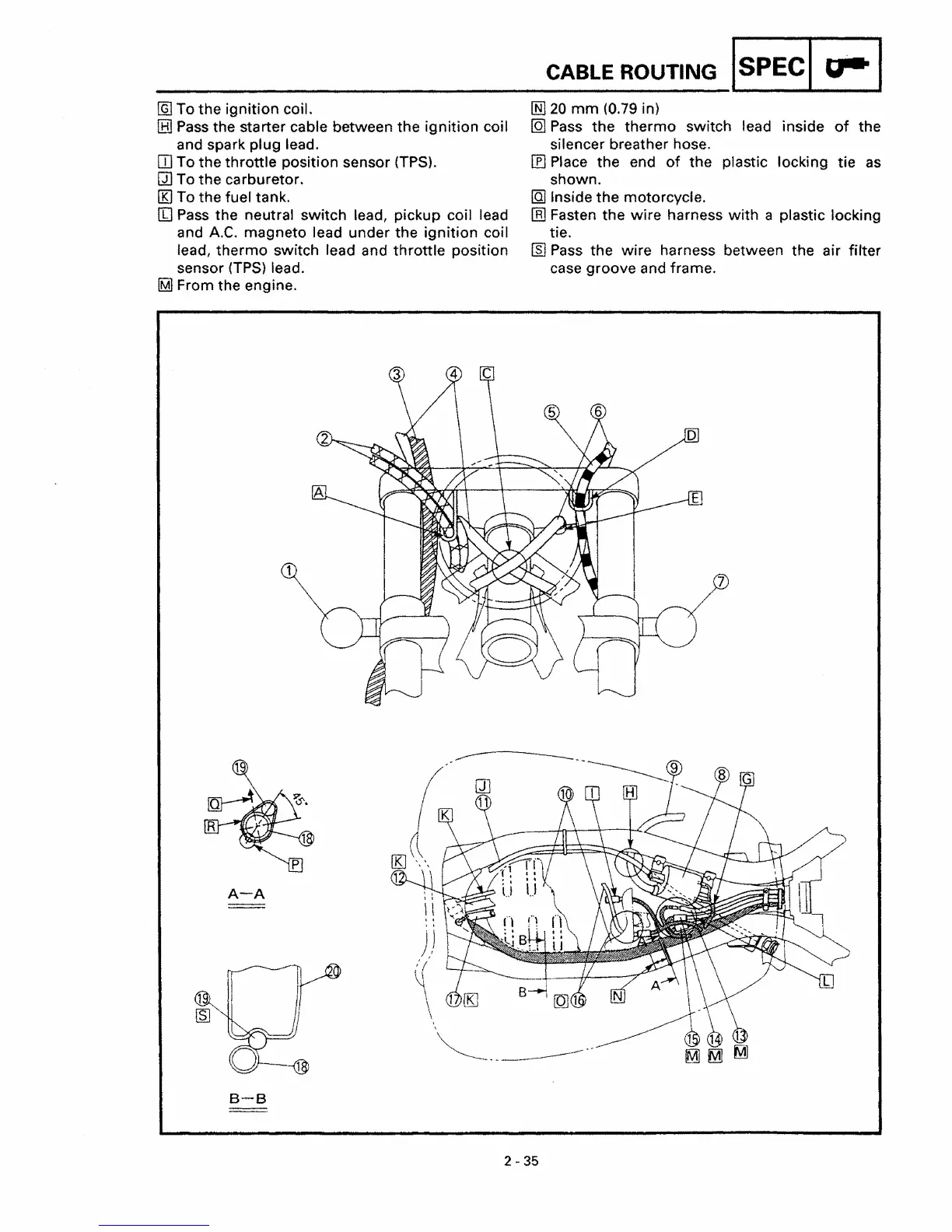

CABLE ROUTING !SPECI u-I
lliJ 20 mm (0.79 in)
[Q] Pass the thermo switch lead inside of the
silencer breather hose.
[E] Place the end of the plastic locking tie as
shown.
[Q] Inside the motorcycle.
[B] Fasten the wire harness with a plastic locking
tie.
lliJ Pass the wire harness between the air filter
case groove and frame.
7
19
p
A-A
---------
B-B
2 - 35
