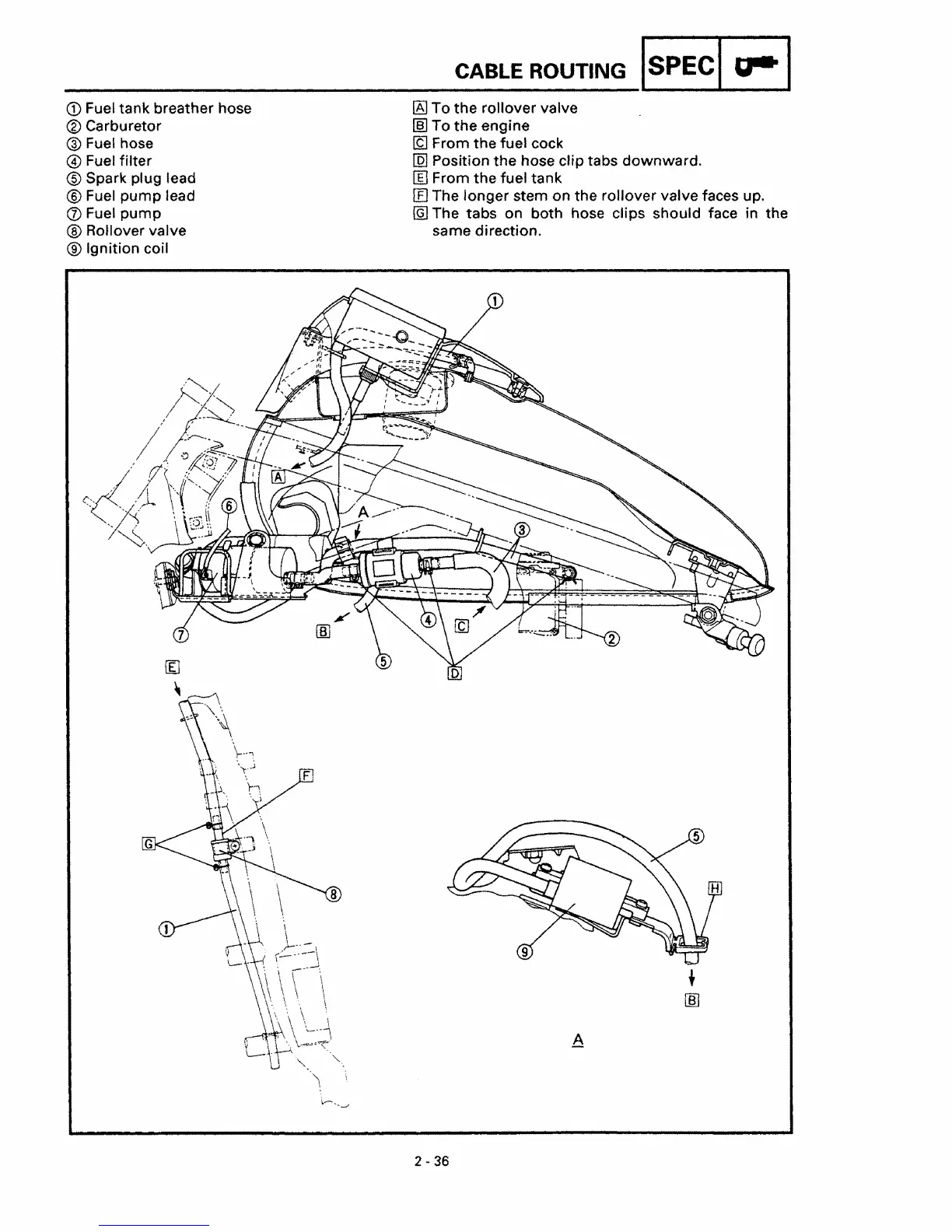

G) Fuel tank breather hose
® Carburetor
® Fuel hose
@ Fuel filter
® Spark plug lead
® Fuel pump lead
(j) Fuel pump
® Rollover valve
® Ignition coil
CABLE ROUTING ISPECI 0-1
~ To the rollover valve
[§] To the engine
[g From the fuel cock
[Q] Position the hose clip tabs downward.
[ID From the fuel tank
[E] The longer stem on the rollover valve faces up.
lQ] The tabs on both hose clips should face in the
same direction.
