<'D Thermo switch
® Spark plug lead
® Fuel tank breather hose
@ Carburetor
® Fuel filter
® Fuel cock
(J) Fuel hose
® Fuel pump
® Ignition coil

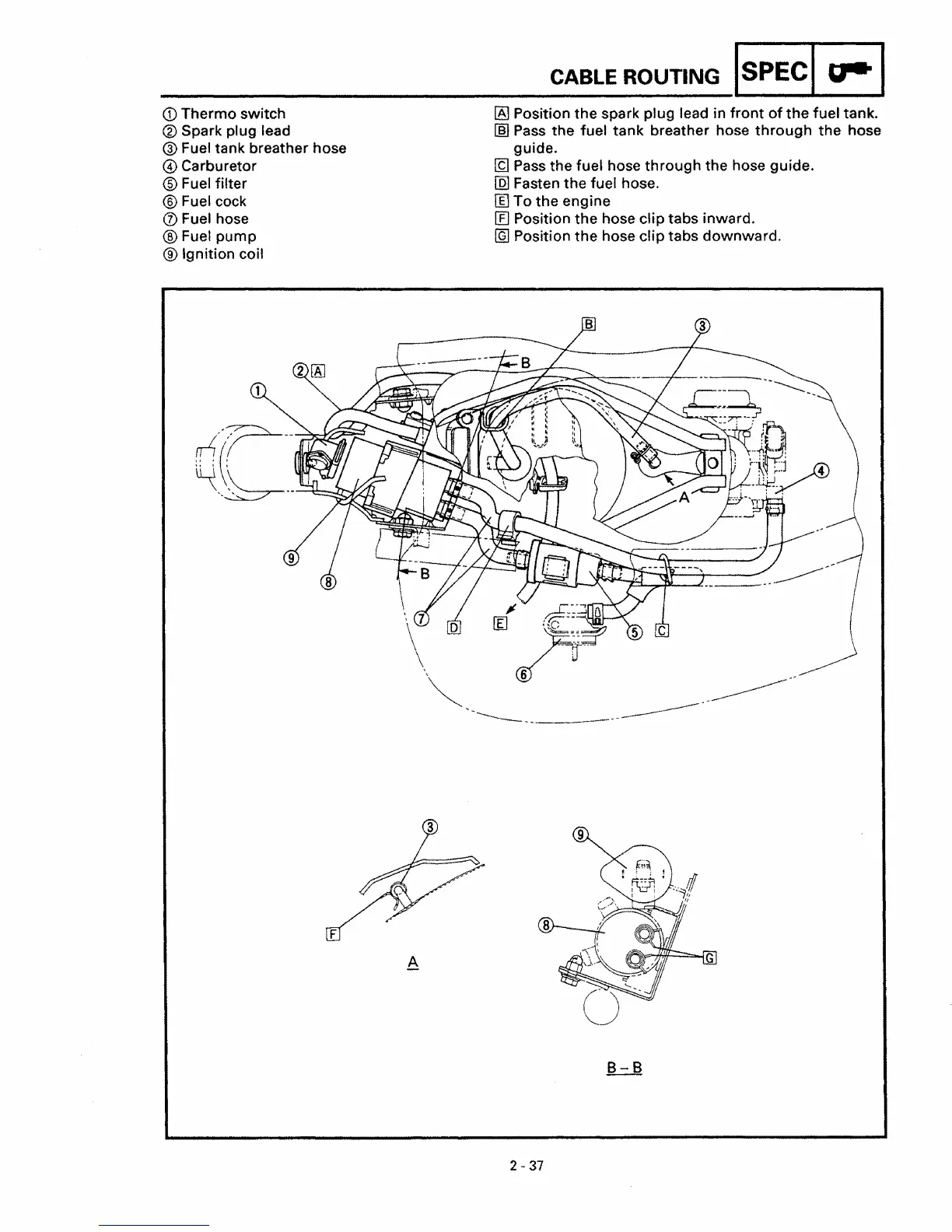

CABLE ROUTING ISPECI 0-1
~ Position the spark plug lead in front of the fuel tank.
I§] Pass the fuel tank breather hose through the hose
guide.
[g Pass the fuel hose through the hose guide.
[Q] Fasten the fuel hose.
To the engine
III Position the hose clip tabs inward.
[§] Position the hose clip tabs downward.
