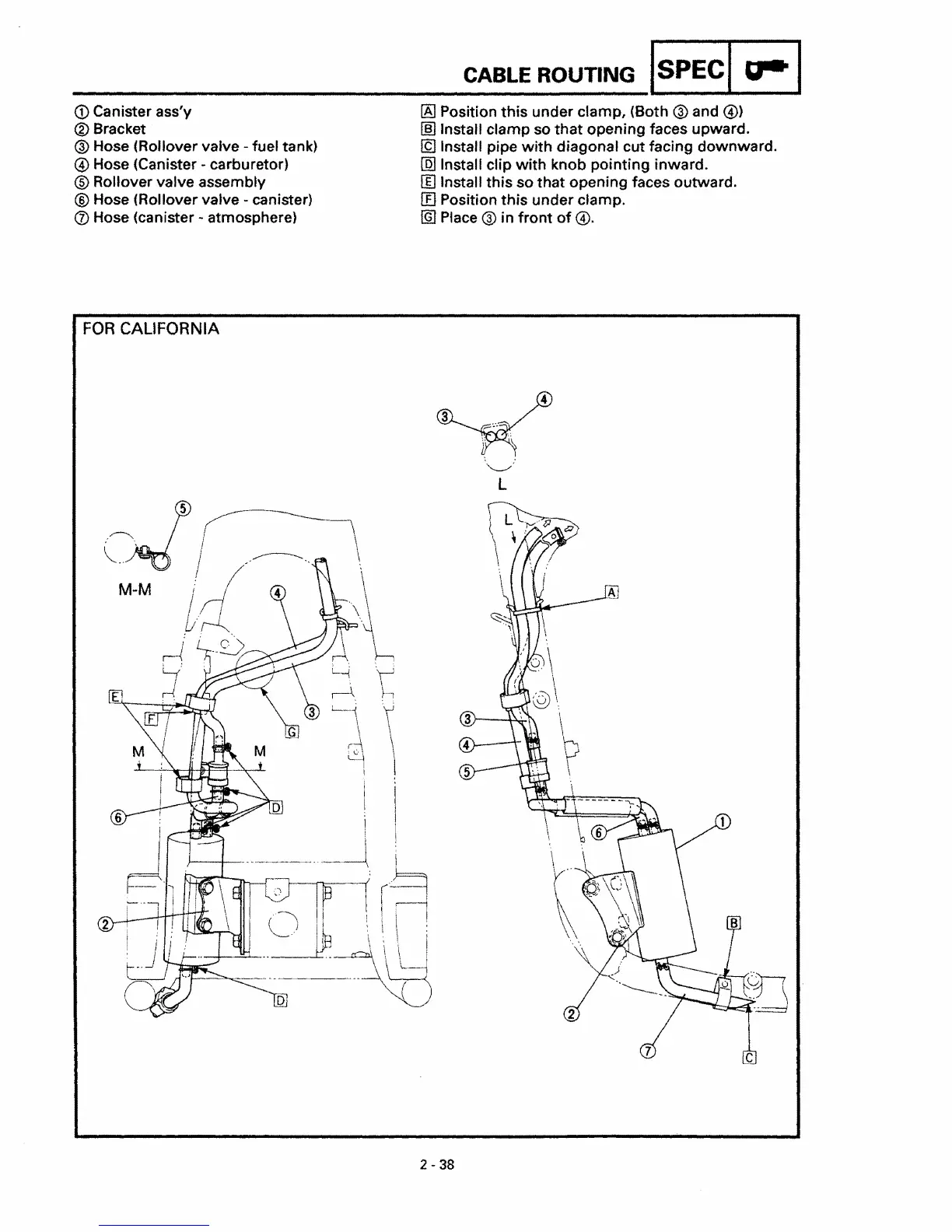

<D Canister ass'y
® Bracket
® Hose (Rollover valve - fuel tank)
@ Hose (Canister - carburetor)
® Rollover valve assembly
® Hose (Rollover valve - canister)
(j) Hose (canister - atmosphere)
FOR CALIFORNIA
oJ
M-M
CABLE ROUTING ISPECI ~ I
~ Position this under clamp, (Both ® and @)
1m Install clamp so that opening faces upward.
[g Install pipe with diagonal cut facing downward.
[QJ Install clip with knob pointing inward.
[§] Install this so that opening faces outward.
WPosition this under clamp.
[§) Place ® in front of @.
~
'''--..../,.
L
2 - 38
