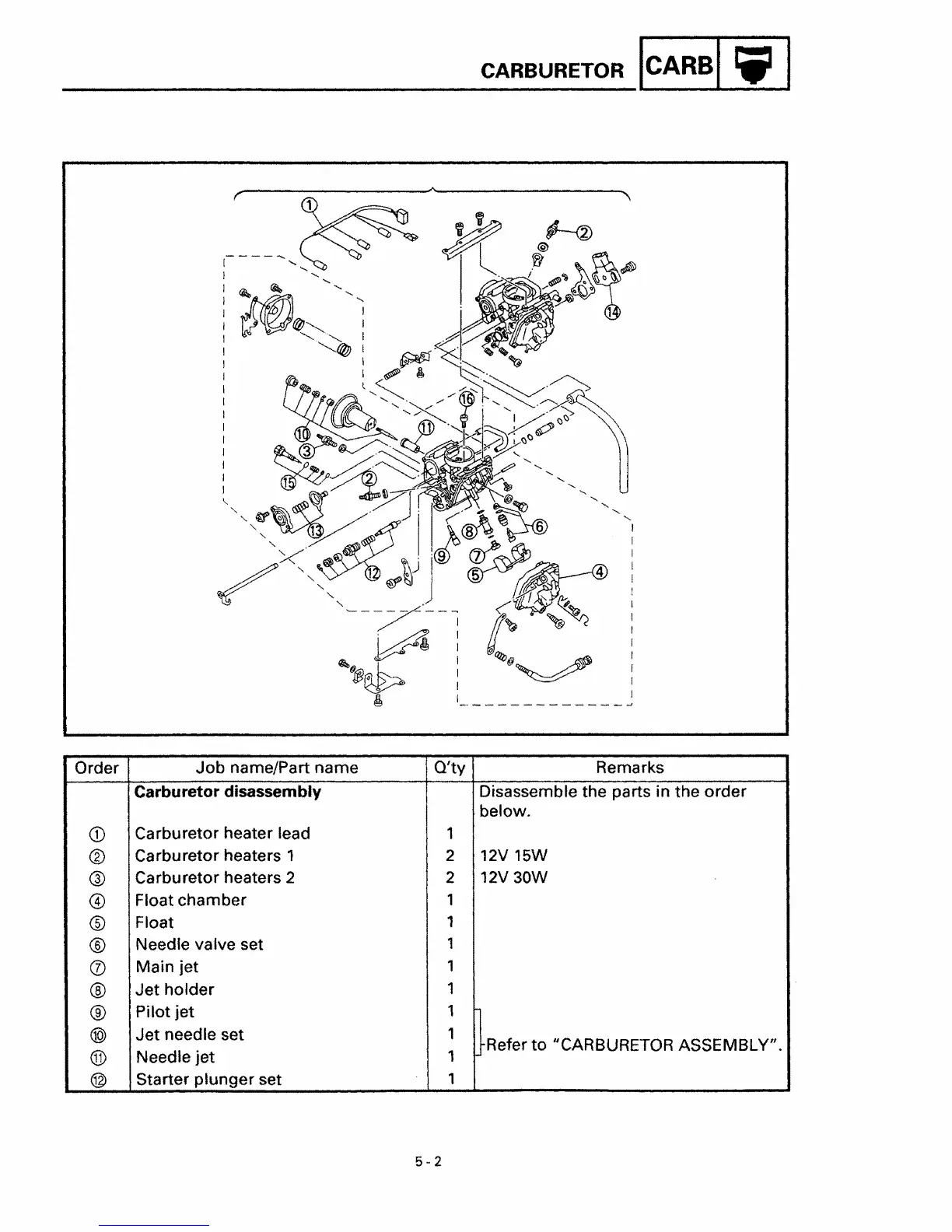

CARBURETOR ICARBI 'ill
Order
Job name/Part name
Qlty
Remarks
Carburetor disassembly Disassemble the parts in the order
below.
CD
Carburetor heater lead 1
®
Carburetor heaters 1
2 12V 15W
®
Carburetor heaters 2 2
12V 30W
@ Float chamber
1
®
Float
1
®
Needle valve set
1
(j)
Main jet
1
®
Jet holder
1
®
Pilot jet
1
@
Jet needle set
1
f-Refer to "CARBURETOR ASSEMBLY".
®
Needle jet
1
@
Starter plunger set
1
5-2
