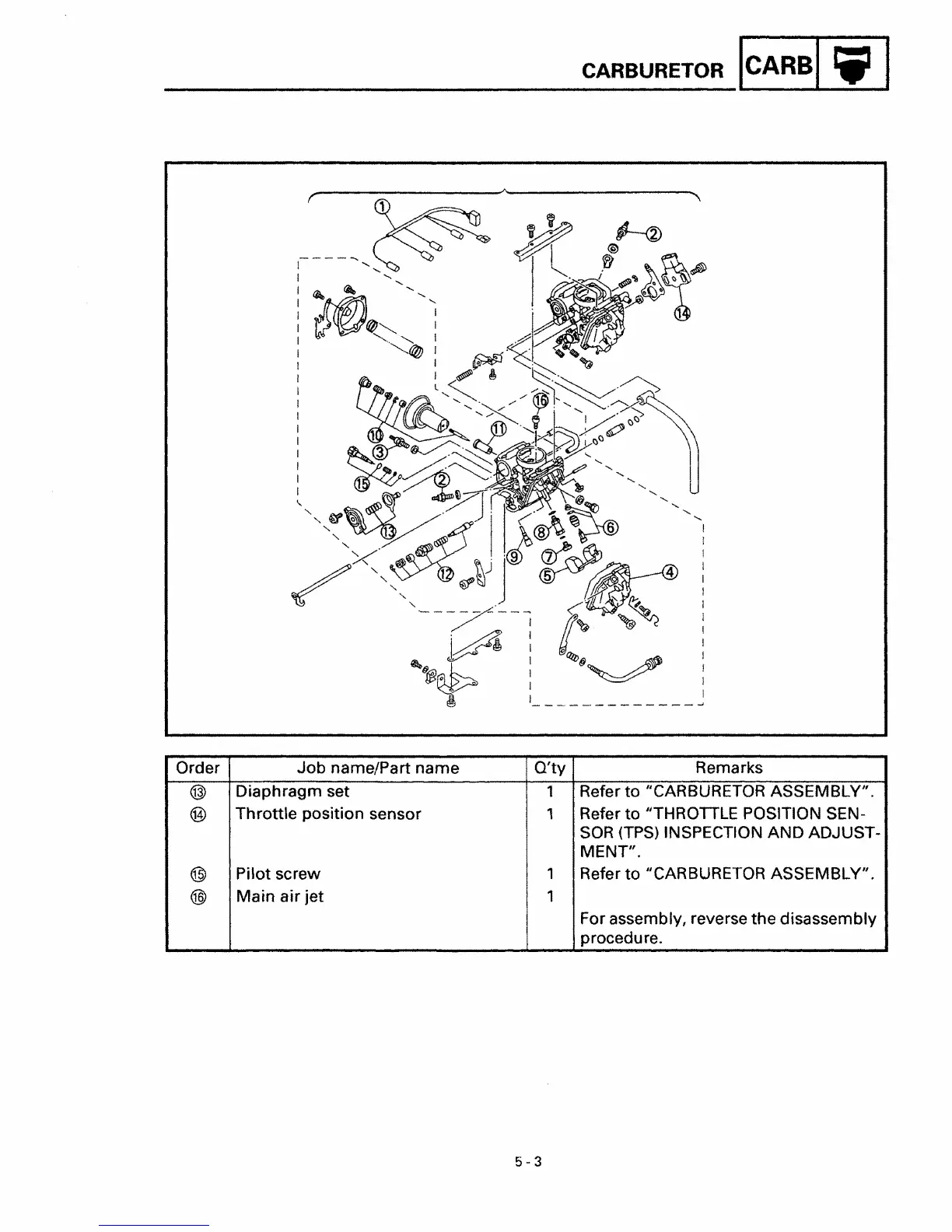

CARBURETOR ICARBIIiII
_----------',1'..----------,
Order Job name/Part name
O'ty Remarks
@
Diaphragm set
1 Refer to "CARBURETOR ASSEMBLY".
@
Throttle position sensor
1
Refer to "THROTTLE POSITION SEN-
SOR (TPS) INSPECTION
AND ADJUST-
MENT".
@
Pilot screw
1 Refer to "CARBURETOR ASSEMBLY".
@
Main air jet 1
For assembly, reverse the disassembly
procedure.
5-3
