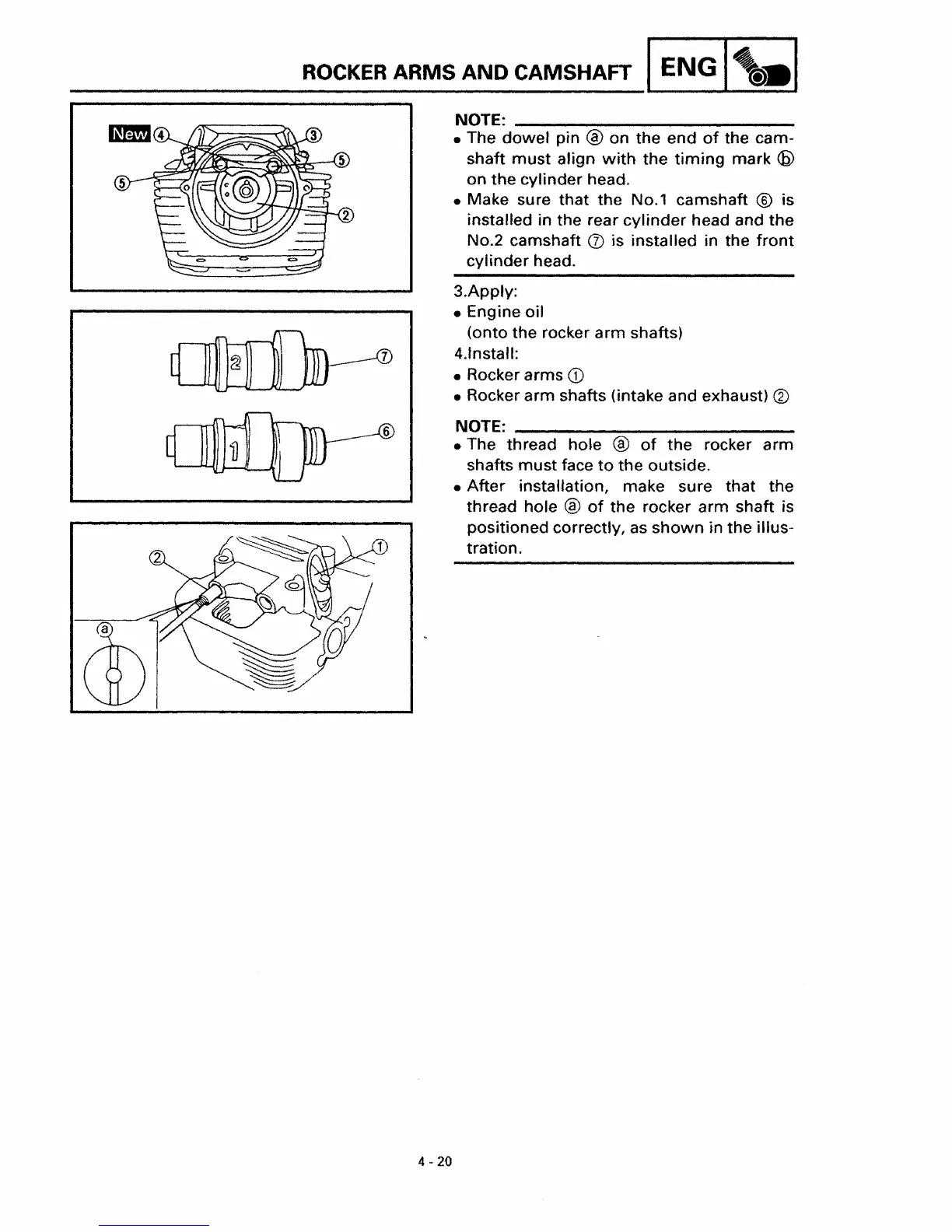

Yamaha XVS650 - ROCKER ARMS AND CAMSHAFT

ROCKER ARMS AND CAMSHAFT I ENG I '\.1
NOTE: ~ _
• The dowel pin ® on the end of the cam-
shaft
must align with the timing mark (6)
on the cylinder head.
• Make sure that the No.1 camshaft
® is
installed in the rear
cylinder head and the
NO.2 camshaft (J) is installed in the front
cylinder head.
3.Apply:
• Engine oil
(onto the rocker
arm shafts)
4.1nstall:
• Rocker arms
CD
• Rocker arm shafts (intake and exhaust) ®
NOTE: _
• The thread hole ® of the rocker arm
shafts must face to the outside.
•
After installation, make sure that the
thread hole
® of the rocker arm shaft is
positioned correctly, as
shown in the illus-
tration.
4 - 20
