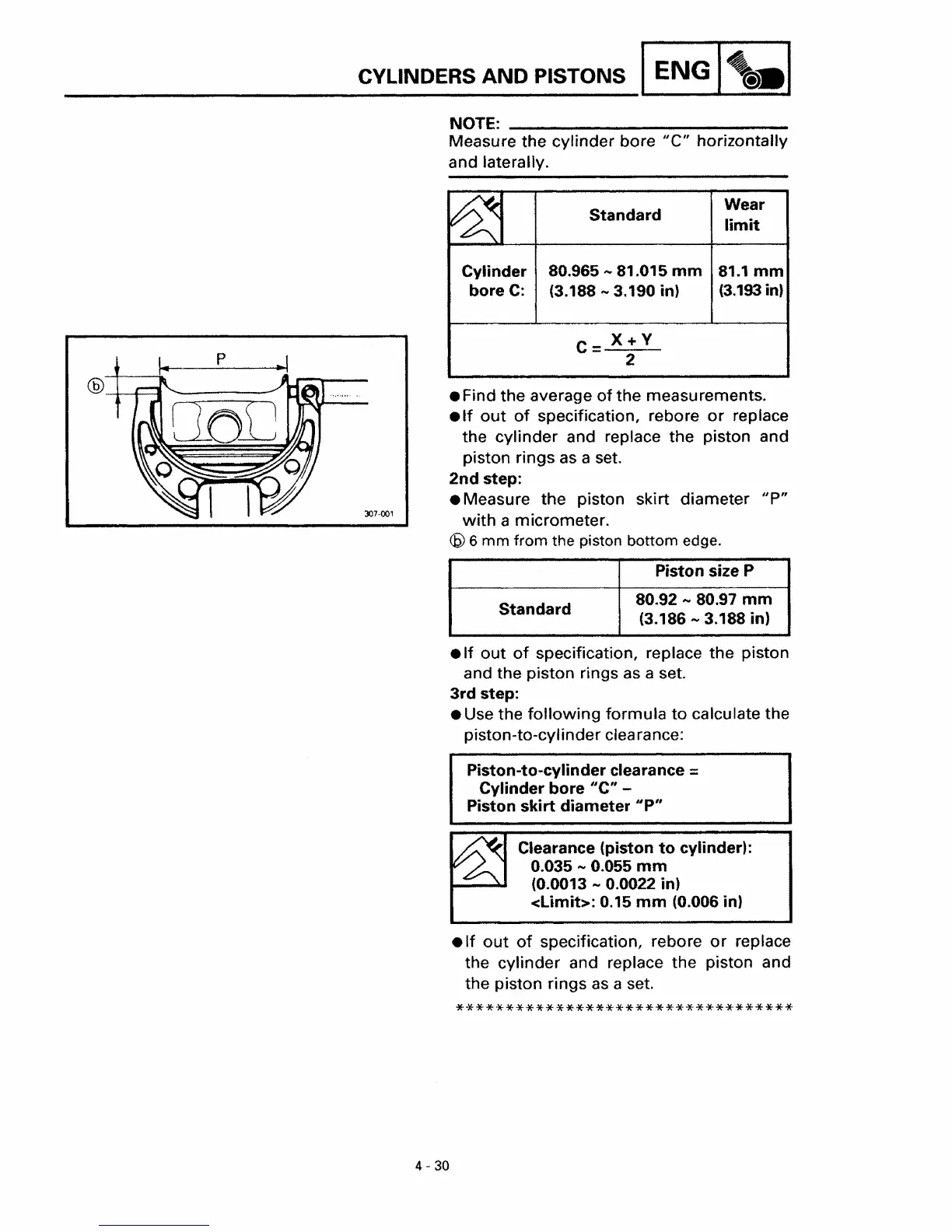

CYLINDERS AND PISTONS ENG
NOTE: _
Measure the cylinder bore "C" horizontally
and laterally.
Standard
Wear
limit
Cylinder
bore
C:
80.965 ,.. 81.015 mm 81.1 rom
(3.188
- 3.190 in) (3.193 in)
307-001
C= X+V
e Find the average of the measurements.
elf out of specification, rebore or replace
the
cylinder and replace the piston and
piston rings
as a set.
2nd step:
• Measure
the piston skirt diameter lip"
with a micrometer.
@ 6 mm from the piston bottom edge.
Piston size P
Standard
80.92 - 80.97 mm
(3.186 ,.. 3.188 in)
.If out of specification, replace the piston
and the piston rings as a set.
3rd step:
• Use the
following formula to calculate the
piston-to-cylinder clearance:
Piston-to-cylinder clearance
=
Cylinder bore "C" -
Piston skirt diameter IIp''
~
Clearance (piston to cylinder):
0.035
,.. 0.055 rom
(0.0013 - 0.0022 in)
<limit>: 0.15 mm (0.006 in)
elf out of specification, rebore or replace
the cylinder and replace the piston and
the piston rings
as a set.
**********************************
4 - 30
