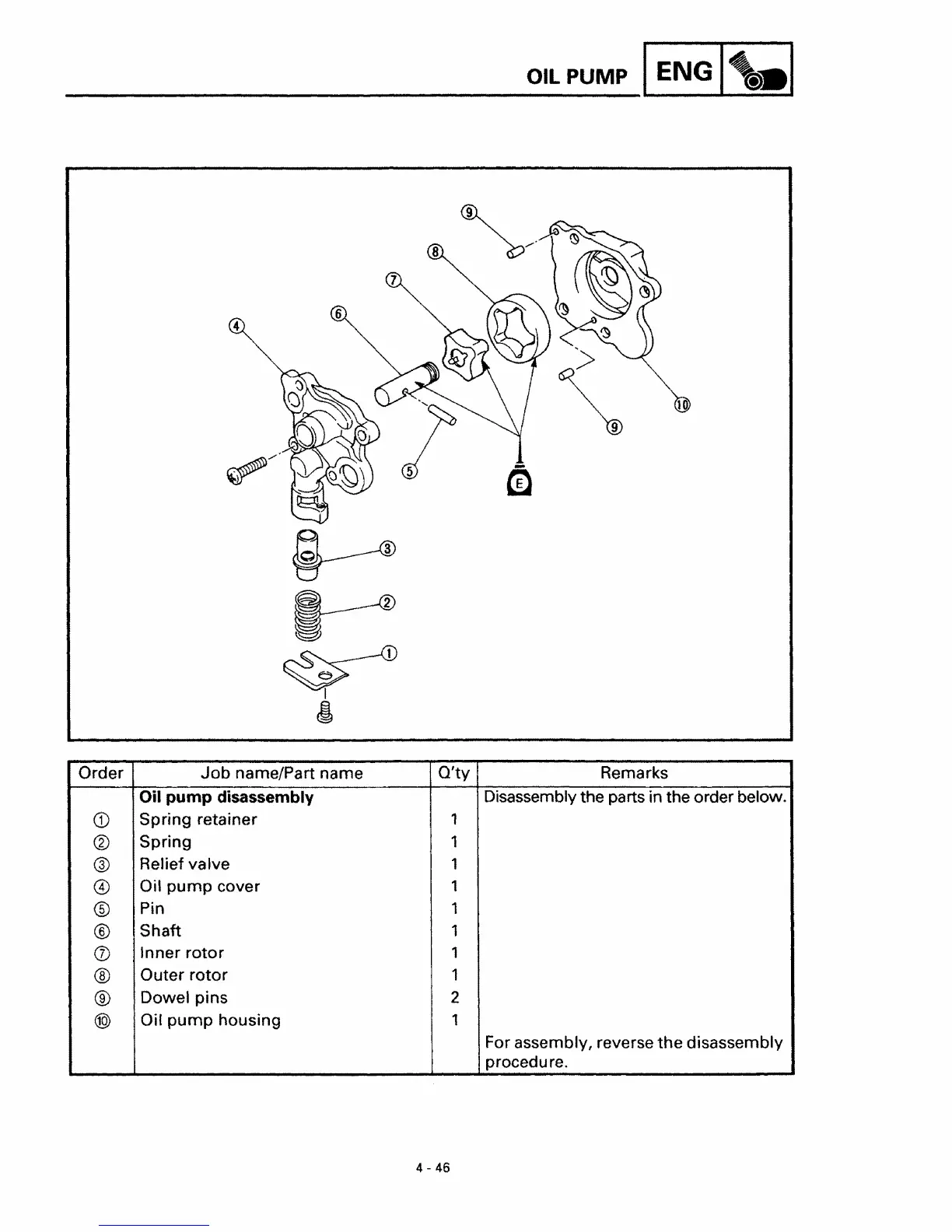

OIL PUMP ENG
P
1
10
Order Job name/Part name
Q'ty
Remarks
Oil pump disassembly
Disassembly the parts in the order below.
CD
Spring retainer
1
®
Spring
1
®
Relief valve 1
@
Oil pump cover
1
®
Pin
1
®
Shaft 1
(J)
Inner rotor
1
®
Outer rotor
1
®
Dowel pins 2
@>
Oil pump housing
1
For assembly, reverse the disassembly
procedure.
4 - 46
