~23 Nm (2.3 m . kg, 16.6 it . Ib) I
~
-~
~
~~
.. ~
@ ~
~-
8
30 Nm (3.0 m· kg, 21.7 it ·Ib)
Order Job name/Part name
Q'ty
Remarks

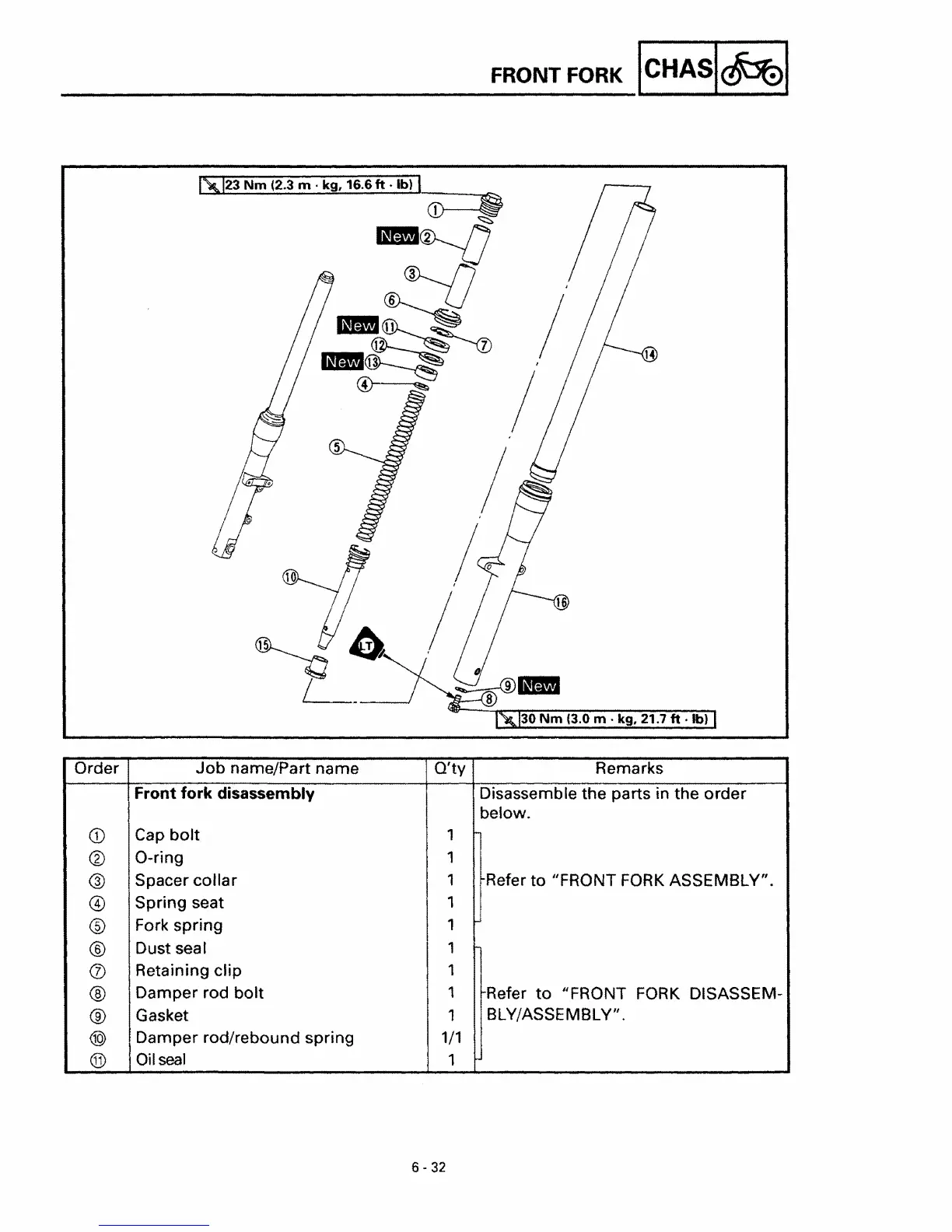

Front
fork disassembly
Disassemble the parts in the
order
below.
G)
Cap bolt
1
®
O-ring 1
®
Spacer collar
1
Refer to "FRONT FORK ASSEMBLY".
@ Spring seat
1
®
Fork spring
1
®
Dust seal
1
(j)
Retaining clip
1
®
Damper rod bolt
1
Refer to "FRONT FORK DISASSEM-
®
Gasket 1
BL Y/ASSEMBLY
II
•
@)
Damper rod/rebound spring 1/1
®
Oil seal
1
6 - 32
