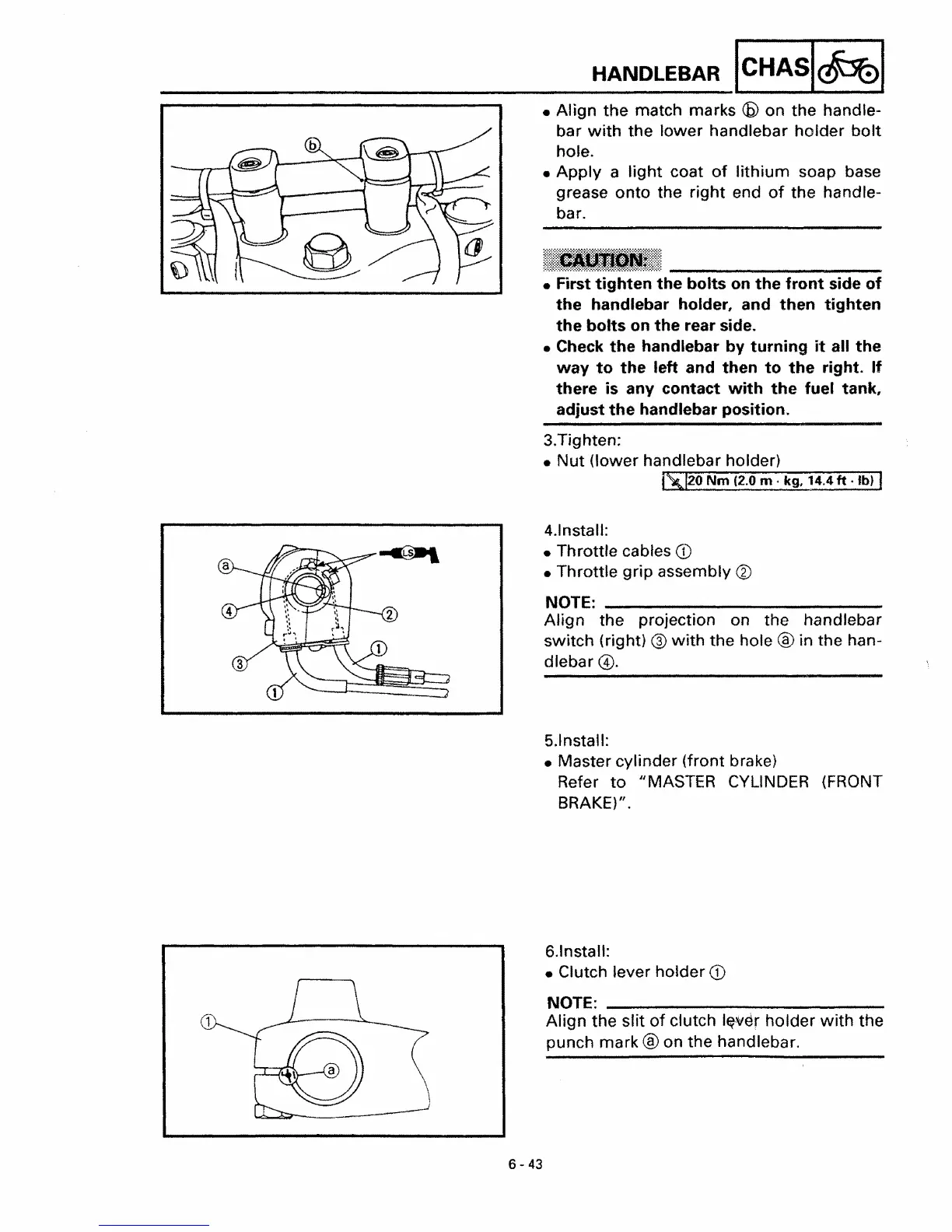

~~~~~~~~~~~~_H_AN_D_L_E_~_R_ICHA~~I
• Align the match marks (6) on the handle-
bar
with the lower handlebar holder bolt
hole.
•
Apply a light coat of lithium soap base
grease
onto the right end of the handle-
bar.
• First
tighten the bolts on the front side of
the handlebar holder, and then tighten
the bolts on the rear side.
• Check
the handlebar by turning it all the
way to the left and then to the right. If
there is any contact with the fuel tank,
adjust the handlebar position.
3.Tighten:
•
Nut (lower handlebar holder)
~1r=-20~N::"':"m~(2=-.O=-m-. -::-kg-t""::'14-=-.~4 '='"11-· '::':'"lb":'""JI
4.1nstal1:
• Throttle cables Q)
• Throttle grip assembly ®
NOTE: _
Align the projection on the handlebar
switch (right)
® with the hole ® in the han-
dlebar@.
5.1nstall:
• Master cylinder (front brake)
Refer
to "MASTER CYLINDER (FRONT
BRAKE}".
6.1nstall:
• Clutch lever holder
Q)
NOTE: _
Align the slit of clutch I~,var holder with the
punch mark
® on the handlebar.
6 - 43
