32 Nm (3.2 m . kg, 23.1 ft . Ib)
6

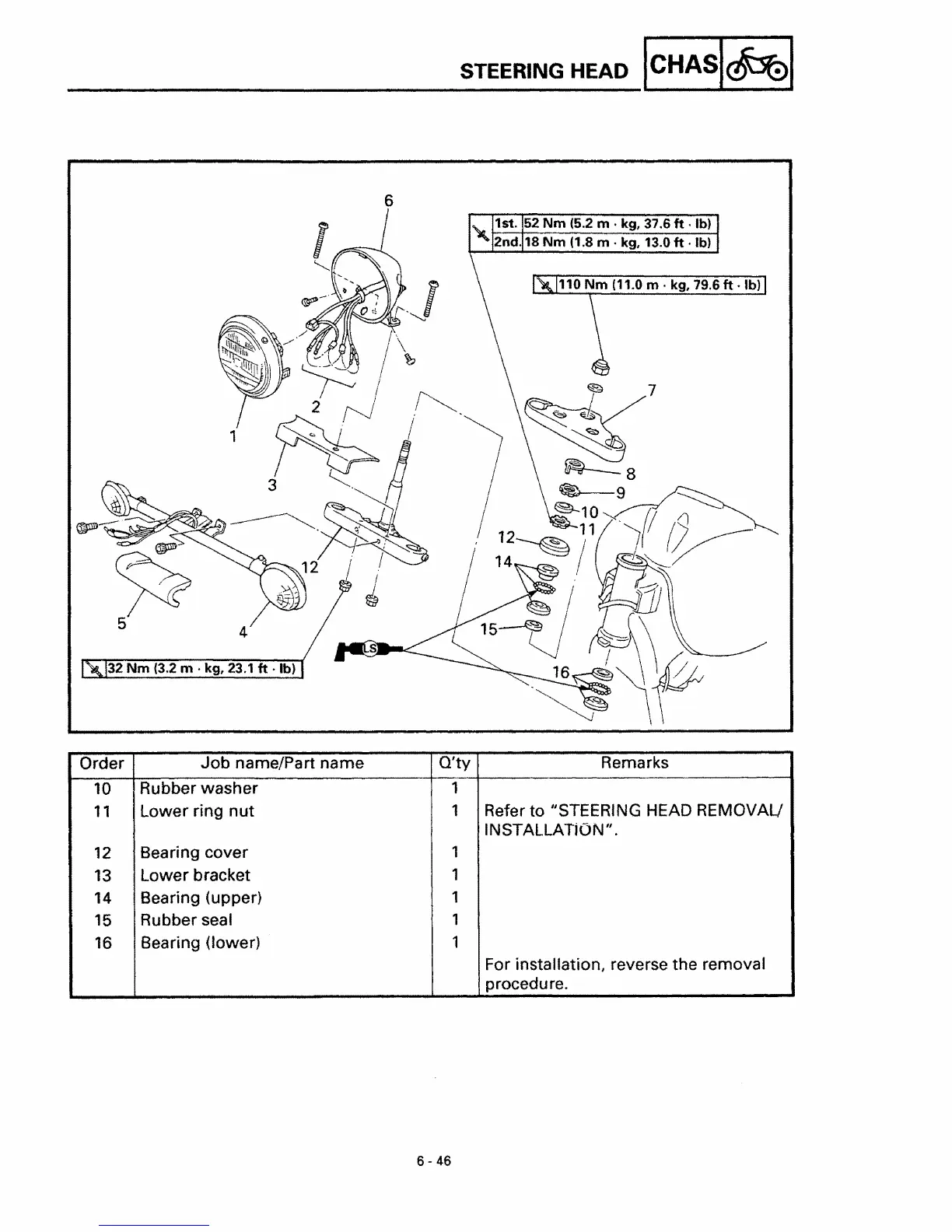

STEERING HEAD ICHASlhl
'X 1st. 52 Nm (5.2 m . kg, 37.6 ft . Ib)
nd. 18 Nm (1.8 m . kg, 13.0 ft . Ib)
Order
Job name/Part name
Q'ty
Remarks
10
Rubber washer
1
11
Lower ring nut
1
Refer to "STEERING HEAD REMOVAL!
INSTALLATiON".
12
Bearing cover
1
13
Lower bracket
1
14
Bearing (upper)
1
15
Rubber seal
1
16
Bearing (lower)
1
For installation, reverse the removal
procedure.
