____________
S_H_A_~_D_R_IV_E_I~~~I
3.1nspect:
• Oil leakage
**********************************
Inspection steps:
.Clean
the entire motorcycle
thoroughly,
then
dry
it.
.Apply
a leak-locating
compound
or
dry
powder
spray
to
the shaft drive.
• Road test the motorcycle
for
the distance
necessary
to
locate
the
leak.
Leakage
~
Inspect
the
component
hous-
ing, gasket and/or seal
for
damage.
Damage
~
Replace
the
component.

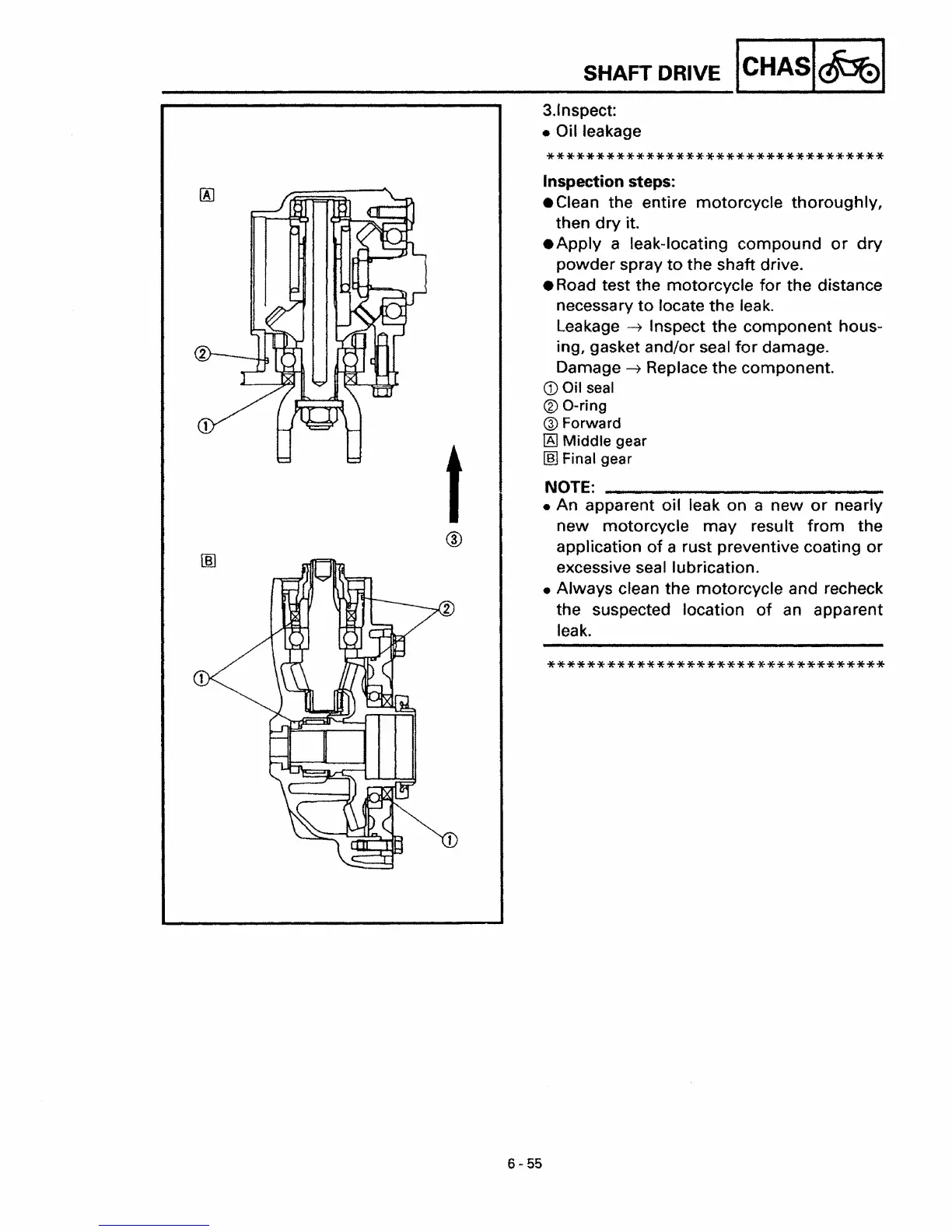

CD
Oil seal
® O-ring
® Forward
IAI
Middle gear
rnJ
Final gear
NOTE:
• An apparent oil leak on a
new
or
nearly
new motorcycle
may
result
from
the
application
of
a rust preventive coating
or
excessive seal lubrication.
• Always clean the motorcycle and recheck
the suspected location
of
an
apparent
leak.
**********************************
