ELECTRIC STARTING SYSTEM I ELEC II=:=J I
EB803010

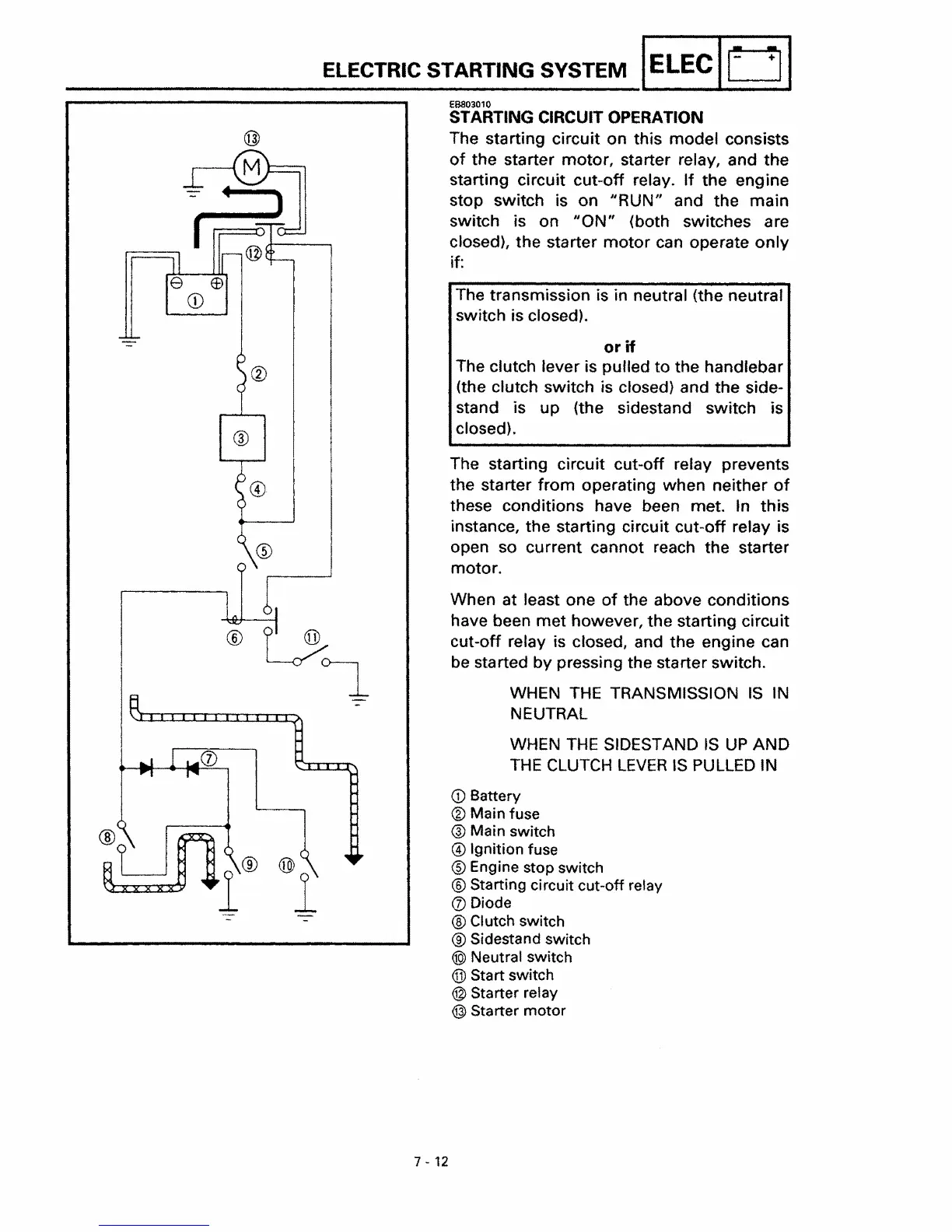

STARTING CIRCUIT OPERATION
The starting circuit on this model consists
of the starter motor, starter relay, and the
starting circuit cut-off relay. If the engine
stop switch is on
"RUN" and the main
switch is on
"ON" (both switches are
closed), the starter
motor can operate only
if:
The transmission is in neutral (the neutral
switch is closed),
or if
The clutch lever is pulled to the handlebar
(the clutch switch is closed) and the
side-
stand is up {the sidestand switch is
closed}.
The starting circuit cut-off relay prevents
the starter from operating when neither
of
these conditions have been met. In this
instance, the starting circuit cut-off relay is
open so current cannot reach the starter
motor.
When at least one
of the above conditions
have been met however, the starting circuit
cut-off relay is closed, and the engine can
be started by pressing the starter switch.
WHEN THE TRANSMISSION IS IN
NEUTRAL
WHEN THE SIDESTAND IS UP AND
THE CLUTCH LEVER IS PULLED IN
ilJJl
®
1
®
1
CD Battery
® Main fuse
® Main switch
@ Ignition fuse
® Engine stop switch
® Starting circuit cut-off relay
(j) Diode
®Clutch switch
® Sidestand switch
@> Neutral switch
® Sta rt switch
@ Starter relay
@) Starter motor
7 - 12
