a.Measure:
• Brush spring force
Fatigue/out
of specification ~ Replace as
a set.
Brush spring force:
520,., 920 g (18.4,., 32.5 oz)
Brush length wear limit:
4 mm (0.16 in)

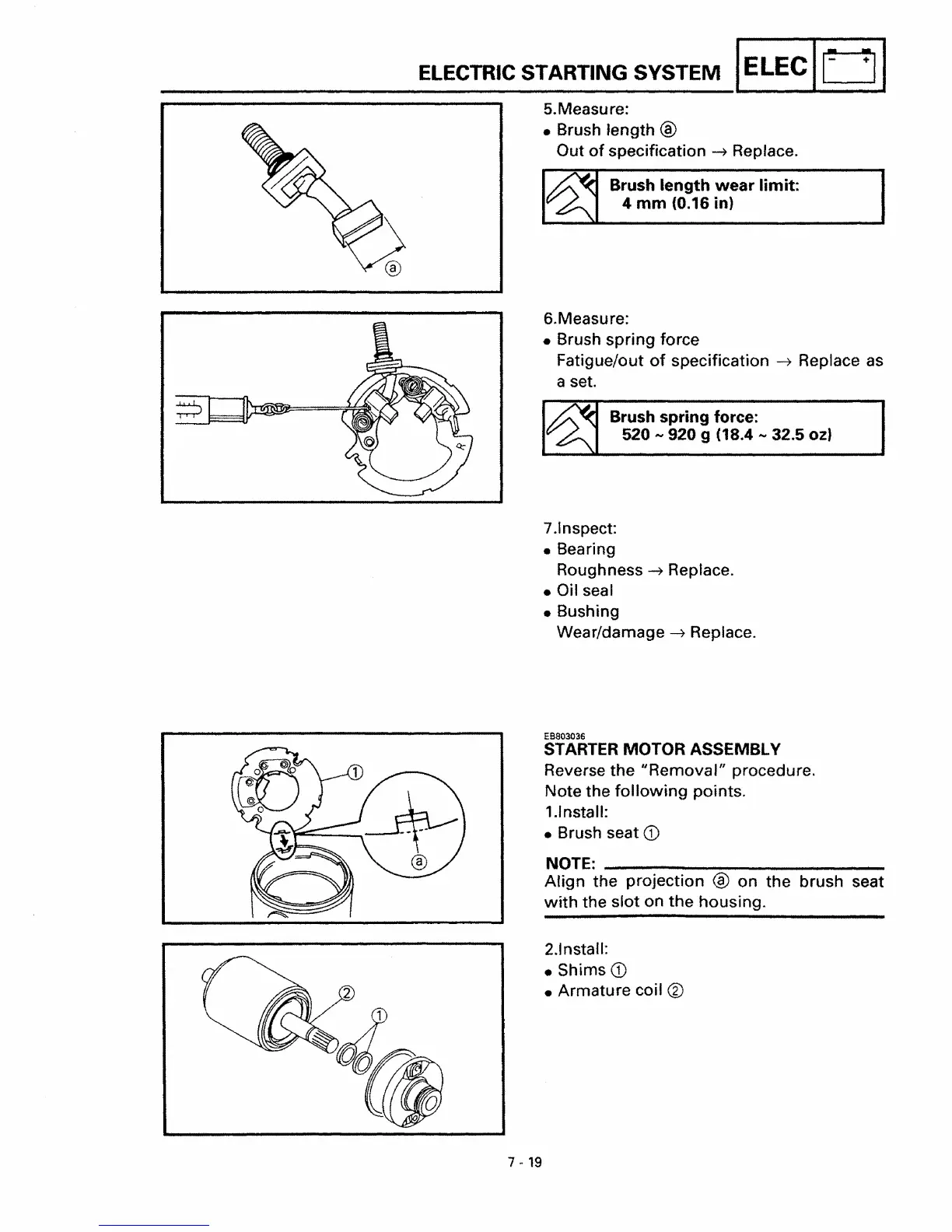

ELECTRIC STARTING SYSTEM IELECI c:11
5.Measure:
• Brush length ®
Out of specification ~ Replace.
7.1nspect:
• Bearing
Roughness
~ Replace.
• Oil seal
• Bushing
Wear/damage
~ Replace.
EBa03036
STARTER MOTOR ASSEMBLY
Reverse the "Removal" procedure.
Note the
following points.
1.1nstall:
• Brush seat
CD
NOTE: _
Align the projection ® on the brush seat
with the slot on the housing.
2.lnstall:
• Shims
CD
• Armature coil ®
