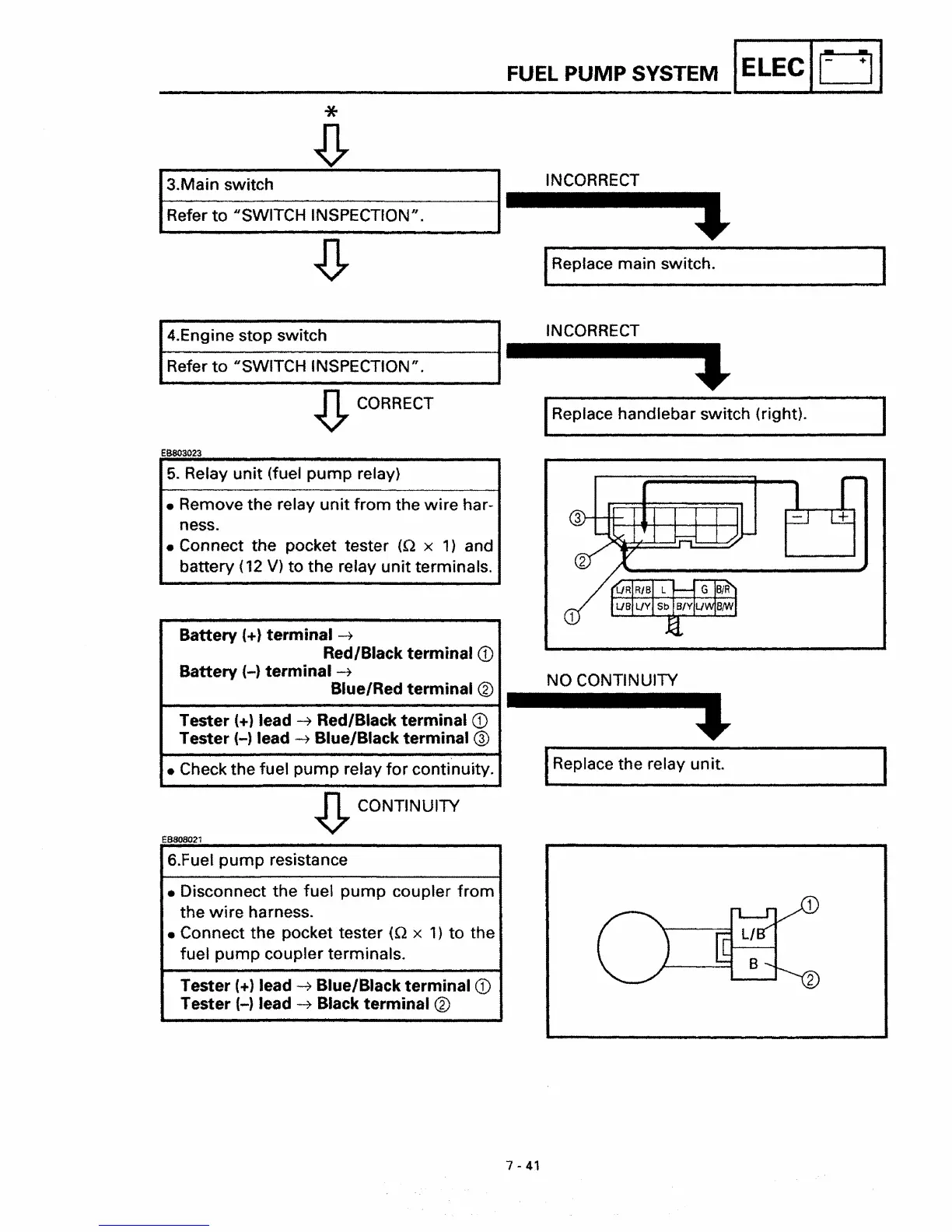

3.Main switch
Refer
to ~~SWITCH INSPECTION".
4.Engine stop switch
Refer
to "SWITCH INSPECTION".
...{!,. CORRECT
EB803023
5. Relay unit (fuel pump relay)
• Remove the relay
unit from the wire har-
ness.
• Connect
the pocket tester ((2 x 1) and
battery
(12 V) to the relay unit terminals.
Battery (+) terminal -t
Red/Black terminal CD
Battery (-) terminal -t
Blue/Red terminal ®
Tester (+) lead -t Red/Black terminal CD
Tester (-) lead -t Blue/Black terminal ®
• Check the fuel pump relay for continuity .
...{!,. CONTINUITY
EBS08021
6.Fuel pump resistance
• Disconnect the fuel
pump coupler from
the wire harness.
• Connect the pocket tester
(0 x 1) to the
fuel
pump coupler terminals.
Tester
(+) lead ~ Blue/Black terminal CD
Tester (-) lead -t Black terminal ®
FUEL PUMP SYSTEM IELECI0 I
INCORRECT
IReplace main switch.
INCORRECT
IReplace handlebar switch (right).
NO CONTINUITY
IReplace the relay unit.
7 - 41
