Yamaha XVS650 - CARBURETOR HEATER SYSTEM

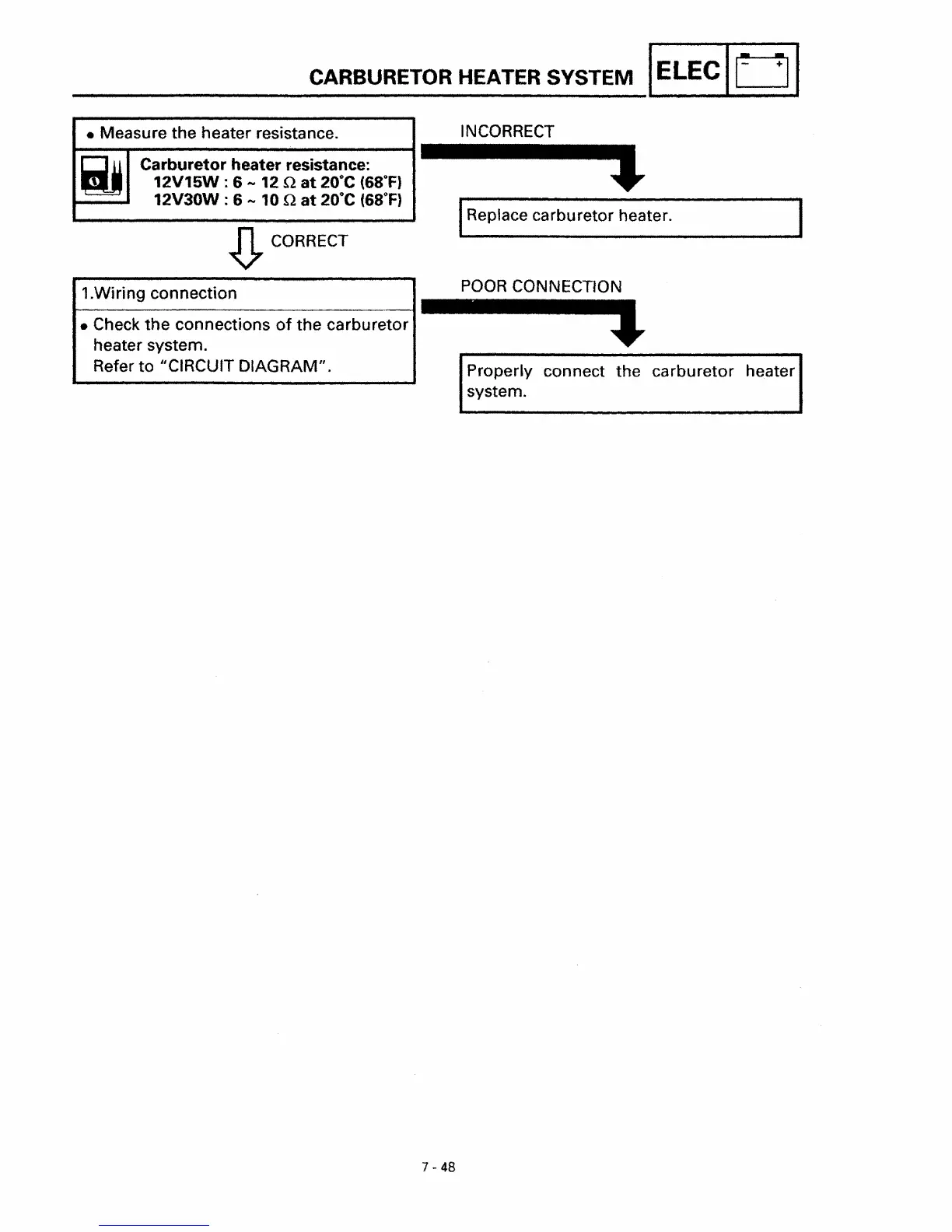

CARBURETOR HEATER SYSTEM I ELEC Id I
• Measure the heater resistance.
iiM
Carburetor heater resistance:
12V15W : 6 - 12
Q at 20°C (68°F)
12V30W: 6 - 10 Q at 20°C (68°F)
~ CORRECT
1.Wiring connection
• Check
the connections of the carburetor
heater system.
Refer
to "CIRCUIT DIAGRAM".
INCORRECT
IReplace carbu retor heater.
POOR CONNECTION
l
Properly connect the carburetor heater
system.
