IQI
To the throttle position sensor
(TPS).
[B]
To the carburetor.
OJ
To the fuel tank.
Q]
Pass
the neutral switch lead, pickup coil lead
and
A.C.
magneto lead under the ignition coil
lead, thermo switch lead and throttle position
sensor
(TPS)
lead.
lRl
From the engine.
UJ
20
mm
(0.79 in)
lMl
Pass
the thermo switch lead inside
of
the
silencer breather hose.

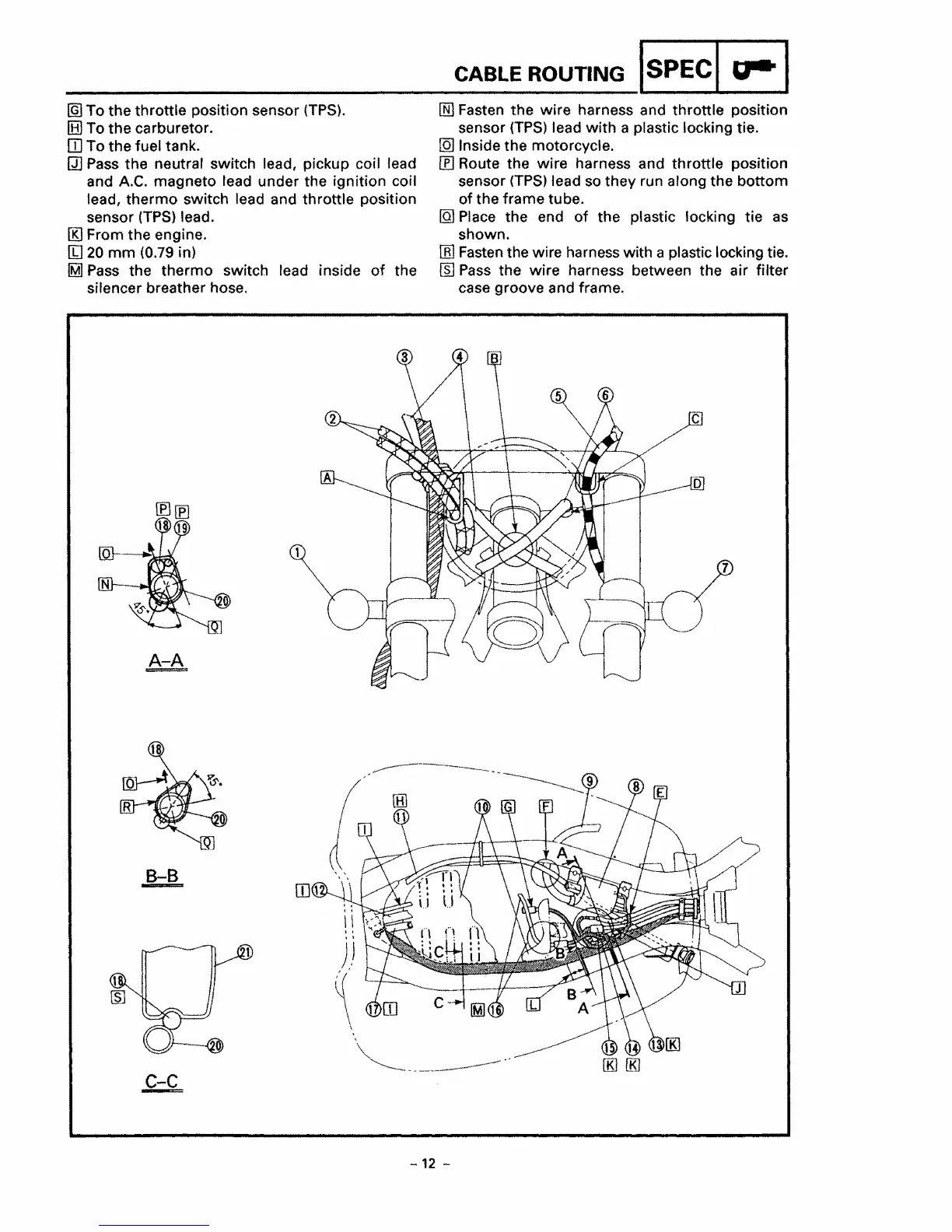

CABLE ROUTING ISPECI~ I
[ill
Fasten the
wire
harness and throttle position
sensor
(TPS)
lead with a plastic locking tie.
!Q]
Inside the motorcycle.
[f]
Route the wire harness and throttle position
sensor
(TPS)
lead so they run along the bottom
of the frame tube.
[Q]
Place the end
of
the plastic locking tie
as
shown.
[ill
Fasten
the wire harness with a plastic locking tie.
[§]
Pass
the wire harness between the air filter
case groove and frame.
A-A
==
7
B-B
-
c-c
-==
-12
-
