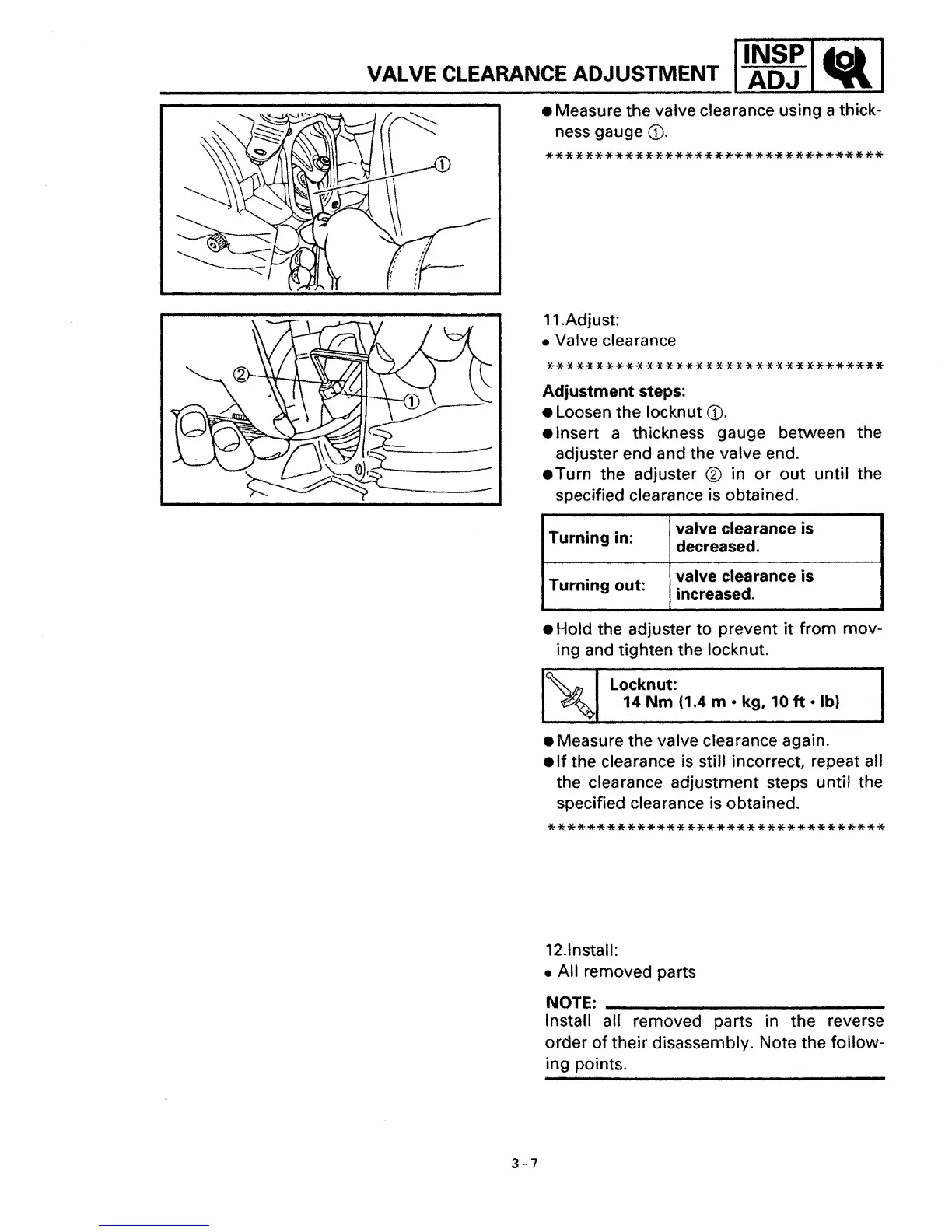

VALVE CLEARANCE ADJUSTMENT
11~8r
ltill
• Measure the valve clearance using a thick-
ness gauge
(1).
**********************************
11.Adjust:
• Valve clearance
**********************************
Adjustment
steps:
• Loosen the locknut
(1)
.
• Insert a thickness gauge between the
adjuster end and the valve end.
• Turn the adjuster
® in
or
out
until the
specified clearance is obtained.
Turning in:
valve clearance is
decreased.
Turning
out:
valve clearance
is
increased.
• Hold the adjuster
to
prevent
it
from
mov-
ing and tighten the locknut.
~
-.
Locknut:
~~
14
Nm
(1.4 m • kg, 10
It
·Ib)
• Measure the valve clearance again.
•
If
the clearance is still incorrect, repeat all
the clearance adjustment steps until the
specified clearance is obtained.
**********************************
12.1nstall:
• All removed
pa
rts
NOTE:
_
Install all removed parts in the reverse
order
of
their
disassembly. Note the
follow-
ing points.
3-7
