COMPRESSION PRESSURE MEASUREMENT II:gs I_I
EB303060

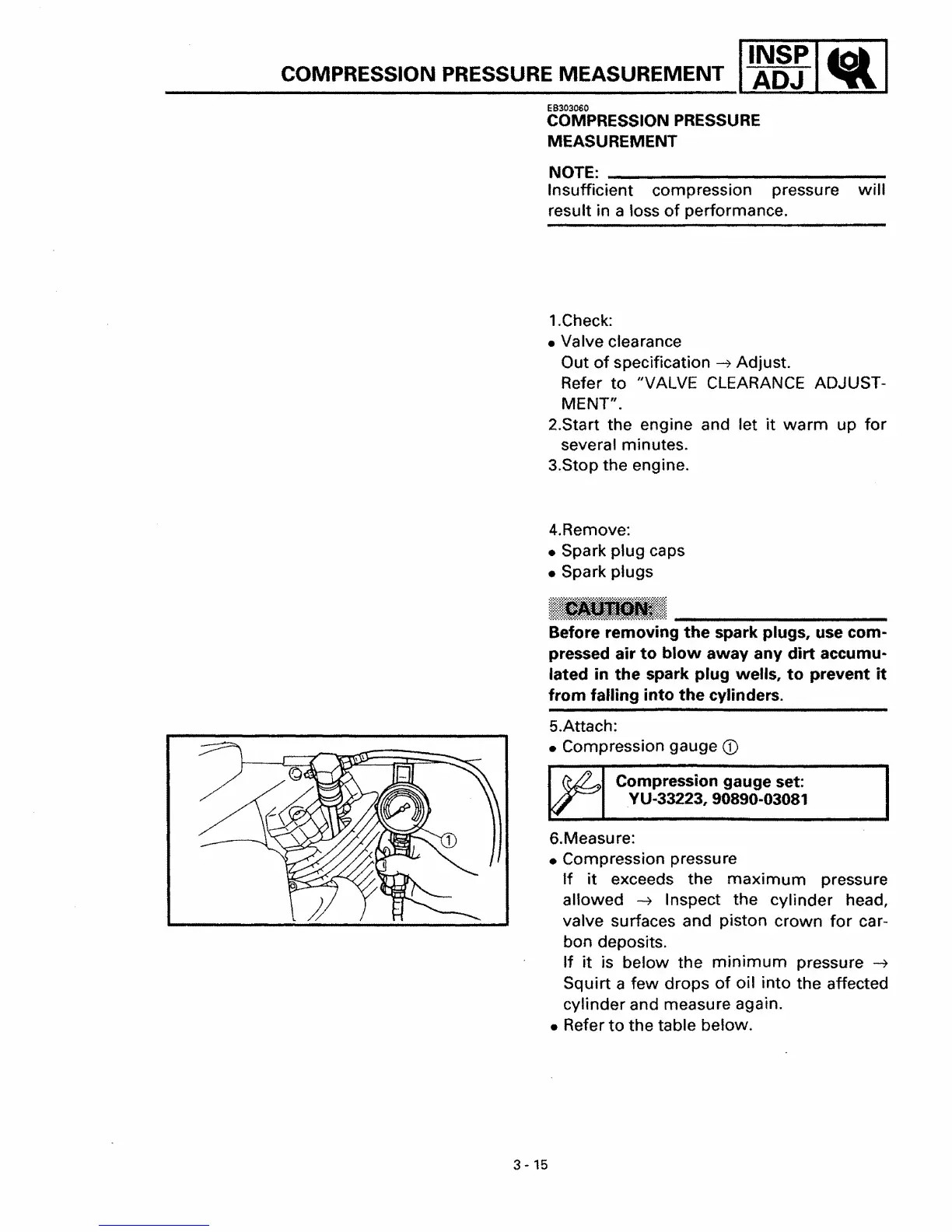

COMPRESSION PRESSURE
MEASUREMENT
NOTE: _
Insufficient compression pressure will
result in a loss of performance.
1.Check:
• Valve clearance
Out of specification -7 Adjust.
Refer
to "VALVE CLEARANCE ADJUST-
MENT".
2.Start the engine and let it warm up for
several minutes.
3.Stop
the engine.
4.Remove:
• Spark
plug caps
• Spark
plugs
Before removing the spark plugs, use com-
pressed air to blow away any dirt accumu-
lated in the spark plug wells, to prevent it
from falling into the cylinders.
6.Measure:
• Compression pressu
re
If it exceeds the maximum pressure
allowed ~ Inspect the cylinder head,
valve surfaces
and piston crown for car-
bon deposits.
If it is below the minimum pressure -7
Squirt a few drops of oil into the affected
cylinder and measure again.
• Refer
to the table below.
'. Compression gauge set:
VU-33223,90890-03081
5.Attach:
• Compression
gauge CD
