MIDDLE GEAR
ENG
*****************************************************
CAUTION:
*****************************************************
90 Nm (9.0 mkg)
NOTE:
4. Install:
 Middle driven shaft assembly
Install steps:
 Clean the outside of the middle driven shaft
and the inside of the bearing.
 Fit the middle driven shaft assembly onto the
bearing housing.
 Place the middle driven shaft assembly onto
a hydraulic press.
 Never directly press the shaft end with a
hydraulic press, this will result in damage
to the shaft thread.

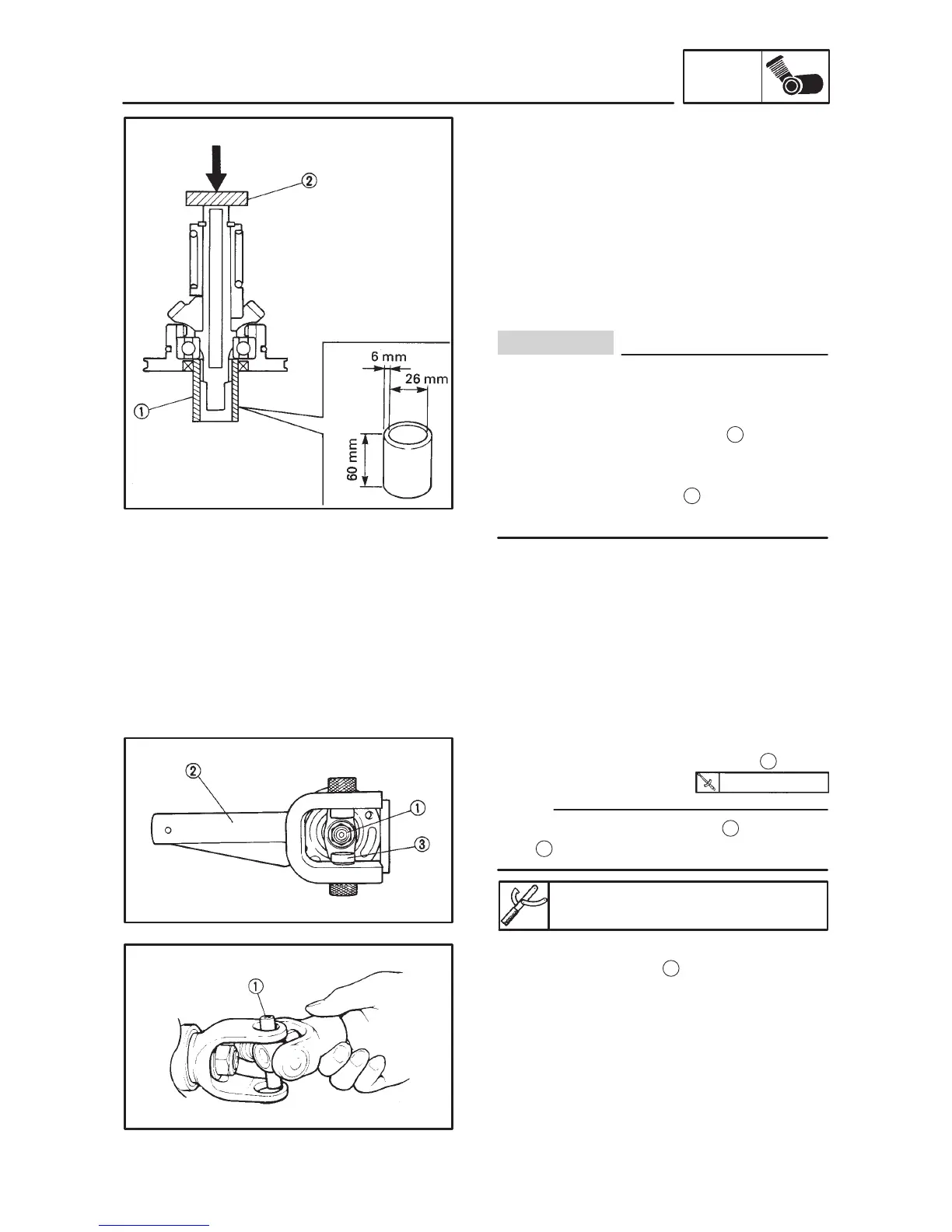

 Install the hand-made tool
1
to protect
the bearing and bearing housing from
damage.
 Install the wood piece
2
on the shaft end
to protect the thread from damage.
 Press the wood piece and secure the middle
driven shaft assembly.
5. Tighten:
 Nut (middle driven pinion gear)
1
Use the universal joint holder
2
to hold the
yoke
3
.
Universal joint holder:
90890-04062
6. Install:
 Yoke (cross joint)
1
(into the hole on yoke)
