4-77
MIDDLE GEAR
ENG
CAUTION:
NOTE:
NOTE:
25 Nm (2.5 mkg)
NOTE:

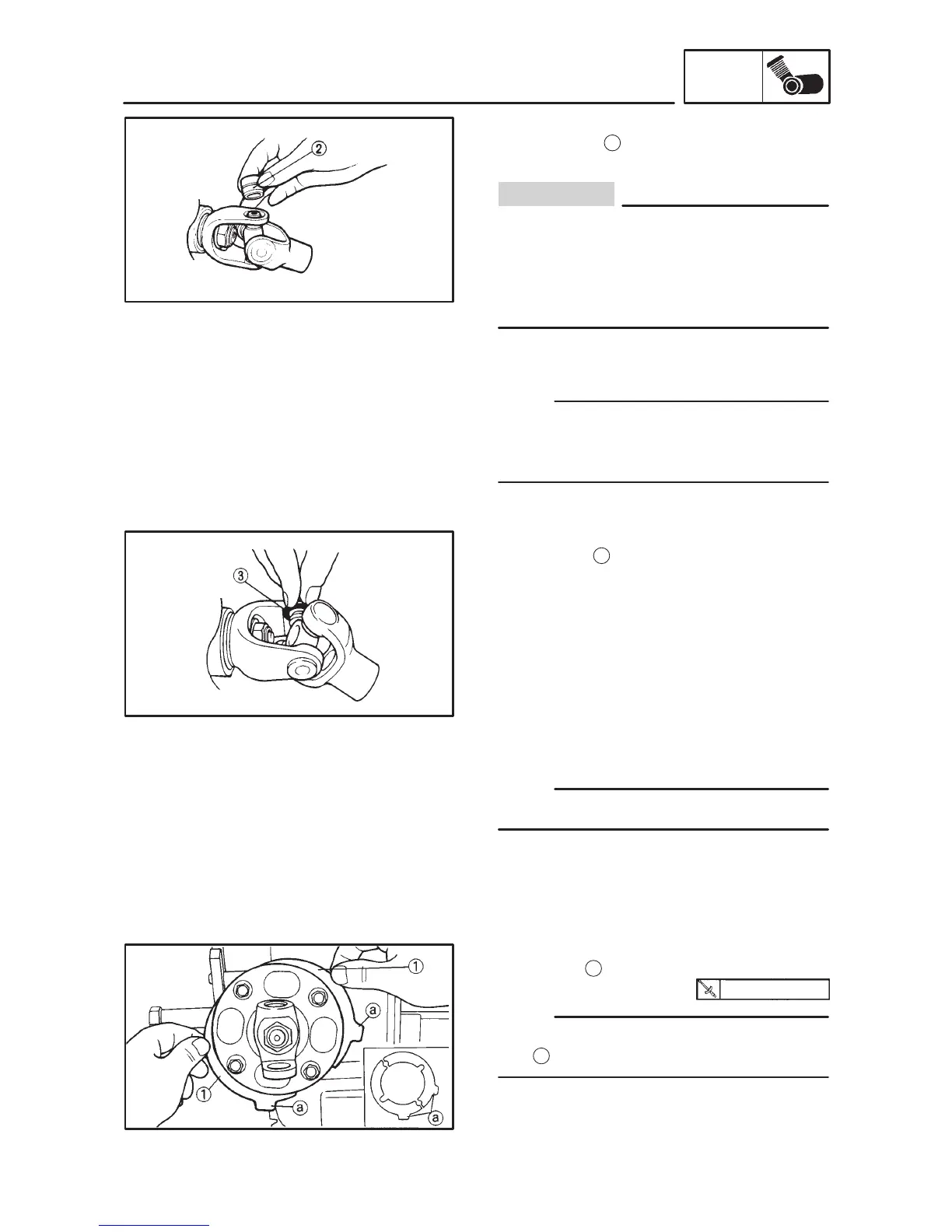

7. Install:
Bearings
1
(onto the cross joint)
The needles can easily fall out of their races,
so check each bearing. Slide the universal
joint yoke back and forth on the bearings. If
a needle is out of place the yoke will not go
all the way onto the bearing.
8. Using a suitable socket press each bearing
into the hole on yoke.
The bearings must be inserted far enough into
the cross joint so that the circlips can be
installed.
9. Install:
Circlips
3
(into the groove of each bearing)
10. Install:
Middle driven pinion gear assembly
Just finger tighten the bolts at this stage.
11. Install:
Shims
1
Bolts
When installing the shims, make sure that the
tabs
a
are positioned correctly.
To Next Page
