SHAFT DRIVE
CHAS
Ring gear shim
Thickness (mm) 0.25, 0.30, 0.40
*****************************************************
115 Nm (11.5 mkg)
CAUTION:
Therefore, the ring gear shim thickness is
0.55 mm. Shim sizes are supplied in the fol-
lowing thickness.
Since ring gear shims can only be selected in
0.10 mm increments, round off the hundredths
digit and select the appropriate shim(s).
Hundredths
Rounded value
0, 1, 2, 3, 4 0
5, 6, 7, 8, 9 10

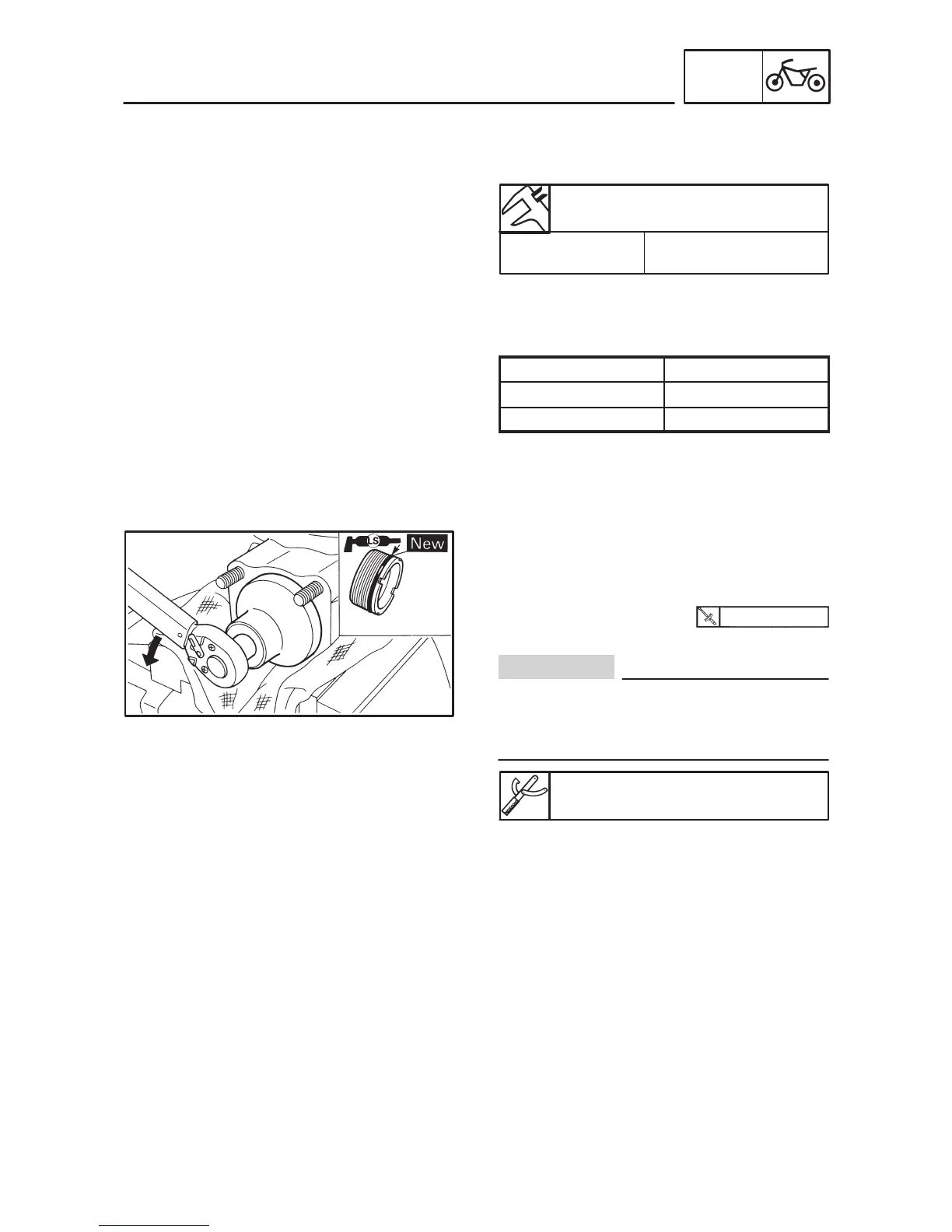

2. Install:
Shims (proper size as calculated)
Final drive shaft assembly
Bearing retainer (final drive shaft)
Use a bearing retainer wrench.
The final drive shaft bearing retainer has
left-hand threads. Turn the retainer counter-
clockwise to tighten it.
Bearing retainer wrench:
90890-04050
3. Adjust:
Gear backlash
Refer to “FINAL GEAR BACKLASH MEA-
SUREMENT” and “FINAL GEAR BACK-
LASH ADJUSTMENT”.
4. Measure/select:
Ring gear thrust washer clearance
To Next Page
