7-14
EB803021

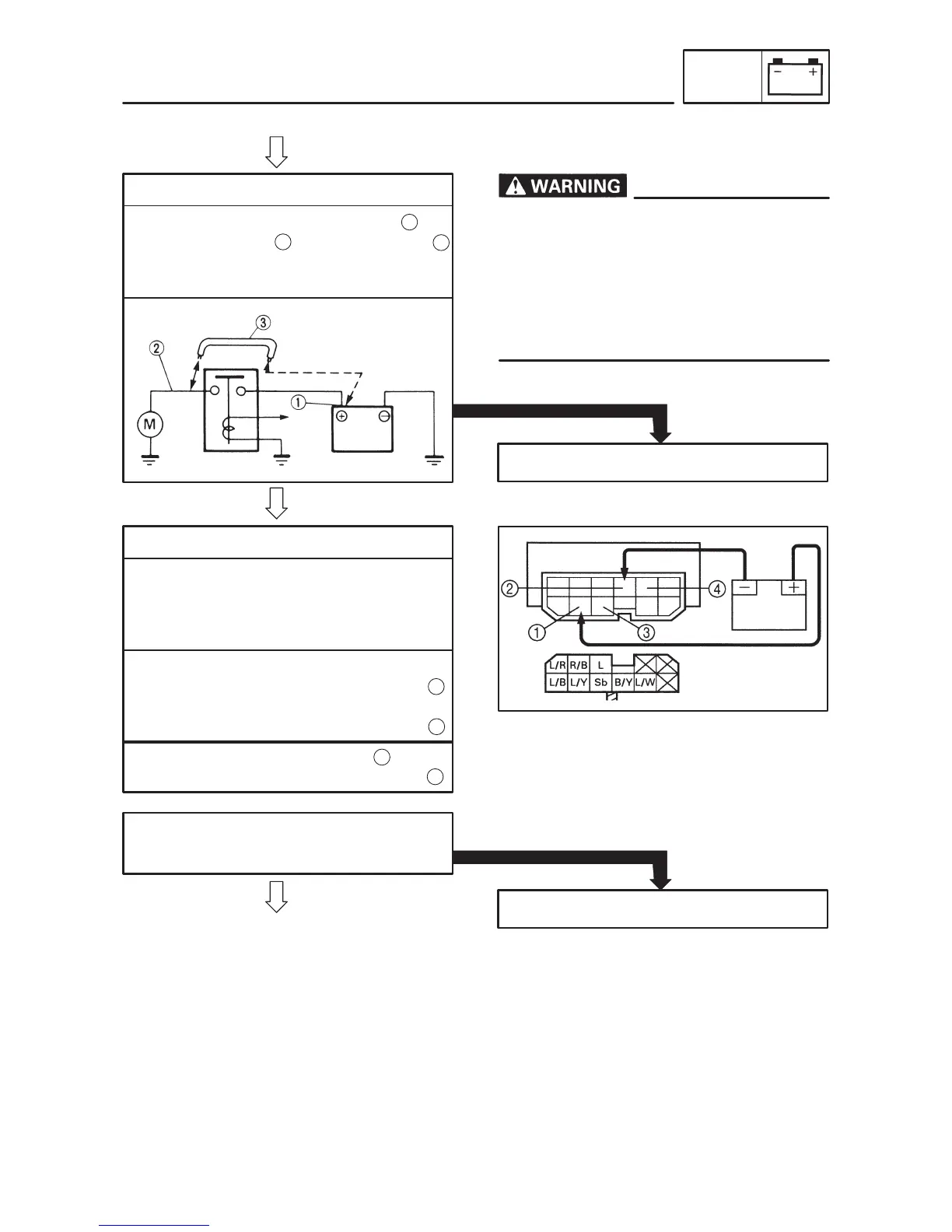

3. Starter motor
S Connect the battery positive terminal and
starter motor cable using a jumper lead
:.
S Check the operation of the starter motor.
Repair or replace the starter motor.
DOES NOT MOVE
:
EB803023
4. Relay unit (starting circuit cut-off relay)
S Remove the relay unit from the wire har-
ness.
S Connect the pocket tester (Ω 1) and bat-
tery (12 V) to the relay unit terminals.
Battery (+) terminal
Red/Black terminal
Battery (–) terminal
Black/Yellow terminal
D A wire that is used as a jumper lead must
have the equivalent capacity or more as
that of the battery lead, otherwise the
jumper lead may burn.
D This check is likely to produce sparks, so
be sure that no flammable gas or fluid is
in the vicinity.
Tester (+) lead Blue terminal
Tester (–) lead Blue/White terminal
MOVES
:
Replace the relay unit.
S Check the starting circuit cut-off relay for
continuity.
CONTINUITY
:
1
2
3
NO CONTINUITY
1
2
3
4
ELECTRIC STARTING SYSTEM
ELEC
To Next Page
