2-27

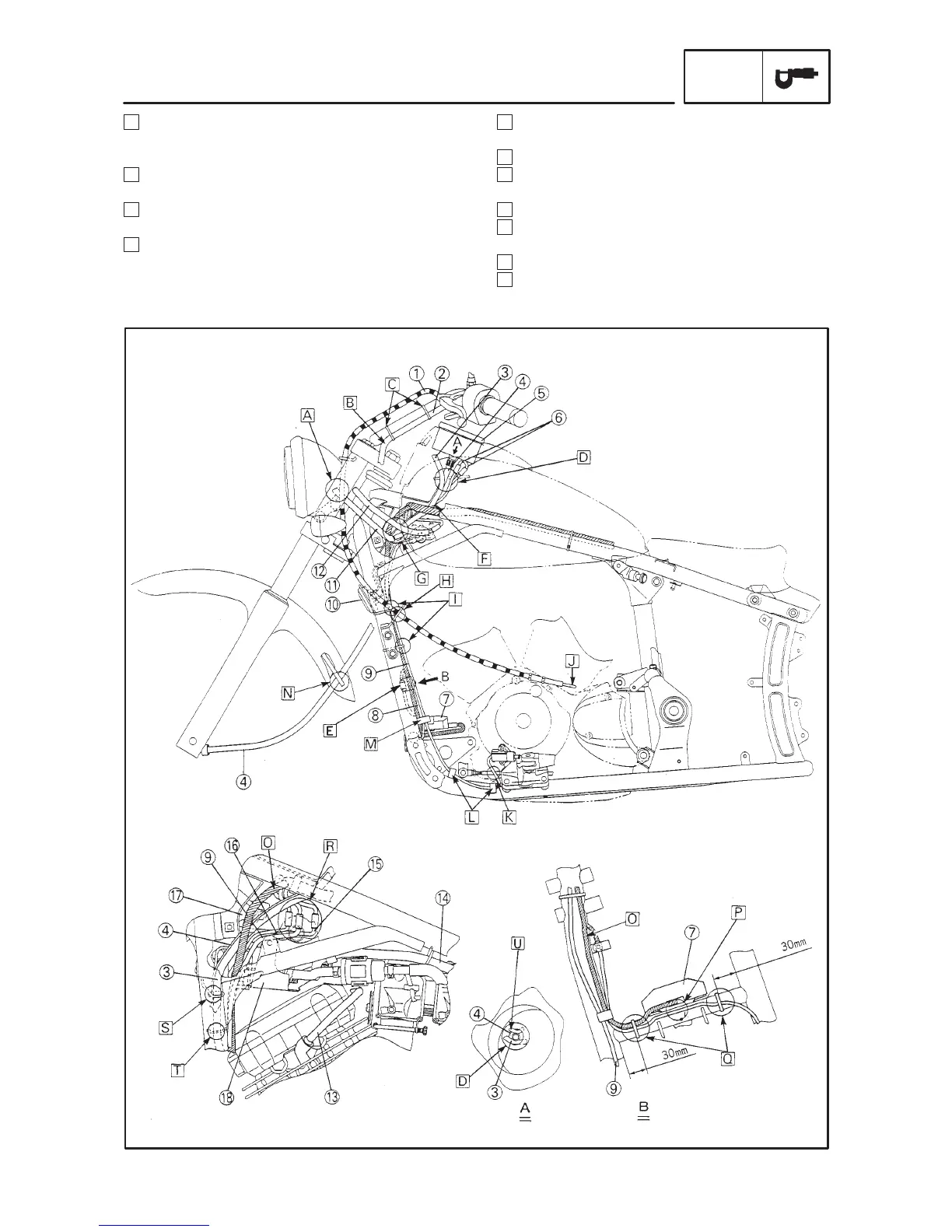

CABLE ROUTING
SPEC
A Pass the front flasher light leads (left and
right) and headlight lead through the
headlight cover hole.
B Pass the left handlebar switch lead behind
the upper bracket.
C Fasten the left handlebar switch lead with a
plastic locking tie.
D Pass the speedometer cable, speedometer
light leads and fuel tank breather hose
through the fuel tank hole.
E Connect the rear brake switch coupler in front
of the roll over valve stay.
F To the speedometer light leads.
G Pass the right handlebar switch lead and head-
light lead over the other harness and leads.
H Pass the clutch cable through the cable guide.
I Fasten the sidestand switch lead and rectifier/
regulator lead with a plastic locking tie.
J To the engine.
K The sidestand switch lead should not touch
the shift rod.
