2-28

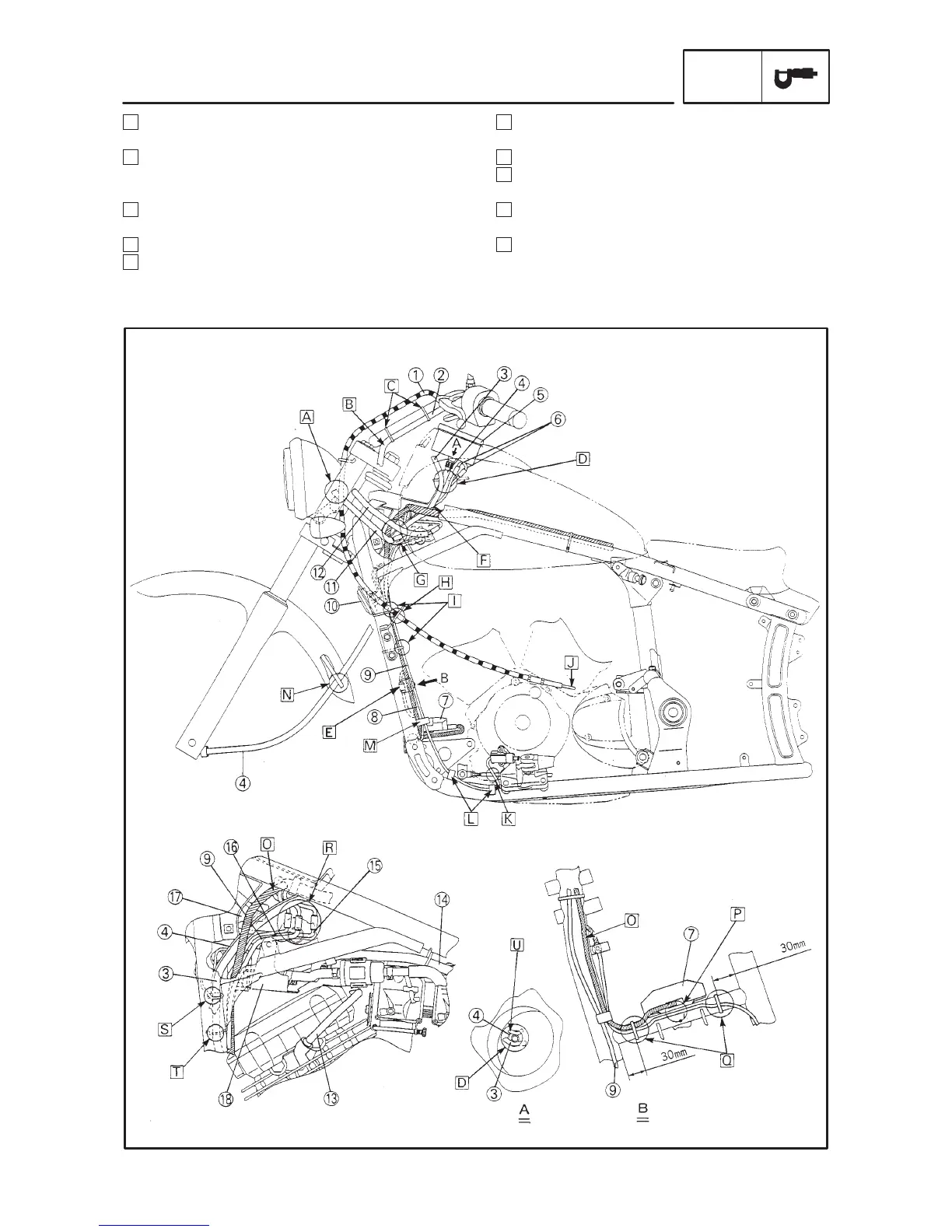

Q Fasten the rear brake switch lead and rectifier/
regulator lead with a plastic locking tie.
R Place the couplers behind the steering head.
S Pass the speedometer cable through the
holder.
T Pass the fuel tank breather hose through the
holder.
U To the speedometer light leads.
L Fasten the sidestand switch lead with a metal
clamp.
M Fasten the rear brake switch lead, sidestand
switch lead and rectifier/regulator lead with
a metal clamp.
N Pass the speedometer cable through the
speedometer cable holder.
O To the rectifier/regulator.
P Pass the rear brake switch lead between the
frame and rectifier/regulator. Do not pinch
the rear brake switch lead.
CABLE ROUTING
SPEC
