2-30
K Fasten the fuse box lead with a plastic locking
tie.
L Fasten the battery positive (+) lead with a bat-
tery box clamp.
M The carburetor heater relay should not touch
the wire harness.
N Fasten the wire harness with a plastic locking
tie.
O From the engine.
P Pass the starter motor lead over the battery
negative (–) lead.
E Fasten the right handlebar switch lead with a
plastic locking tie.
F Pass the right handlebar switch lead behind
the upper bracket.
G Fasten the brake hose with a brake hose
holder.
H Pass the left handlebar switch lead under the
main switch.
I Fasten the spark plug lead with a metal clamp.
J Pass the ignition coil lead inside of the starter
cable.

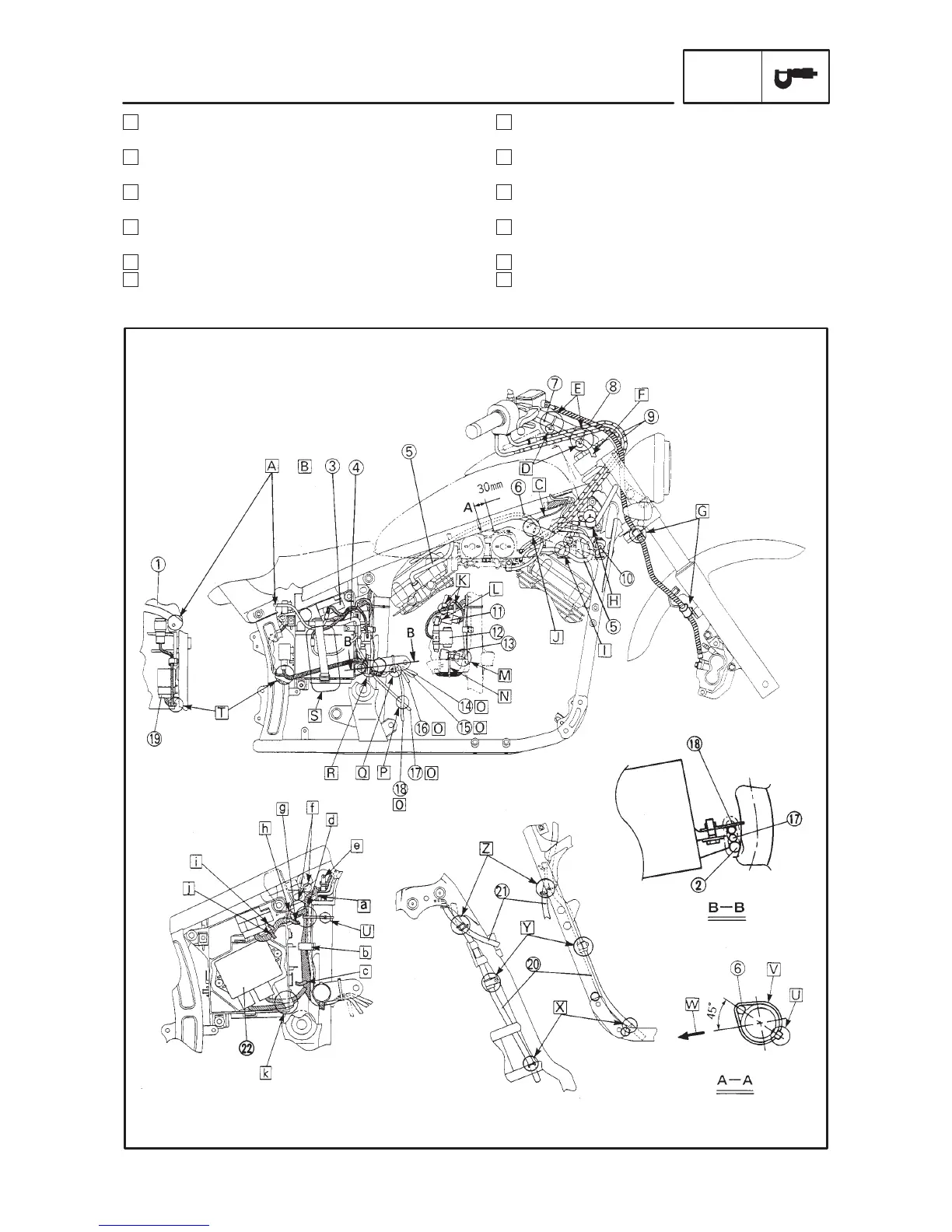

CABLE ROUTING
SPEC
