D.1 In-panel Wiring
D-9
D
CP-215 Repeater-TP Cable Connections
The following figure shows a CP-215 Repeater-TP transmission line connection example.

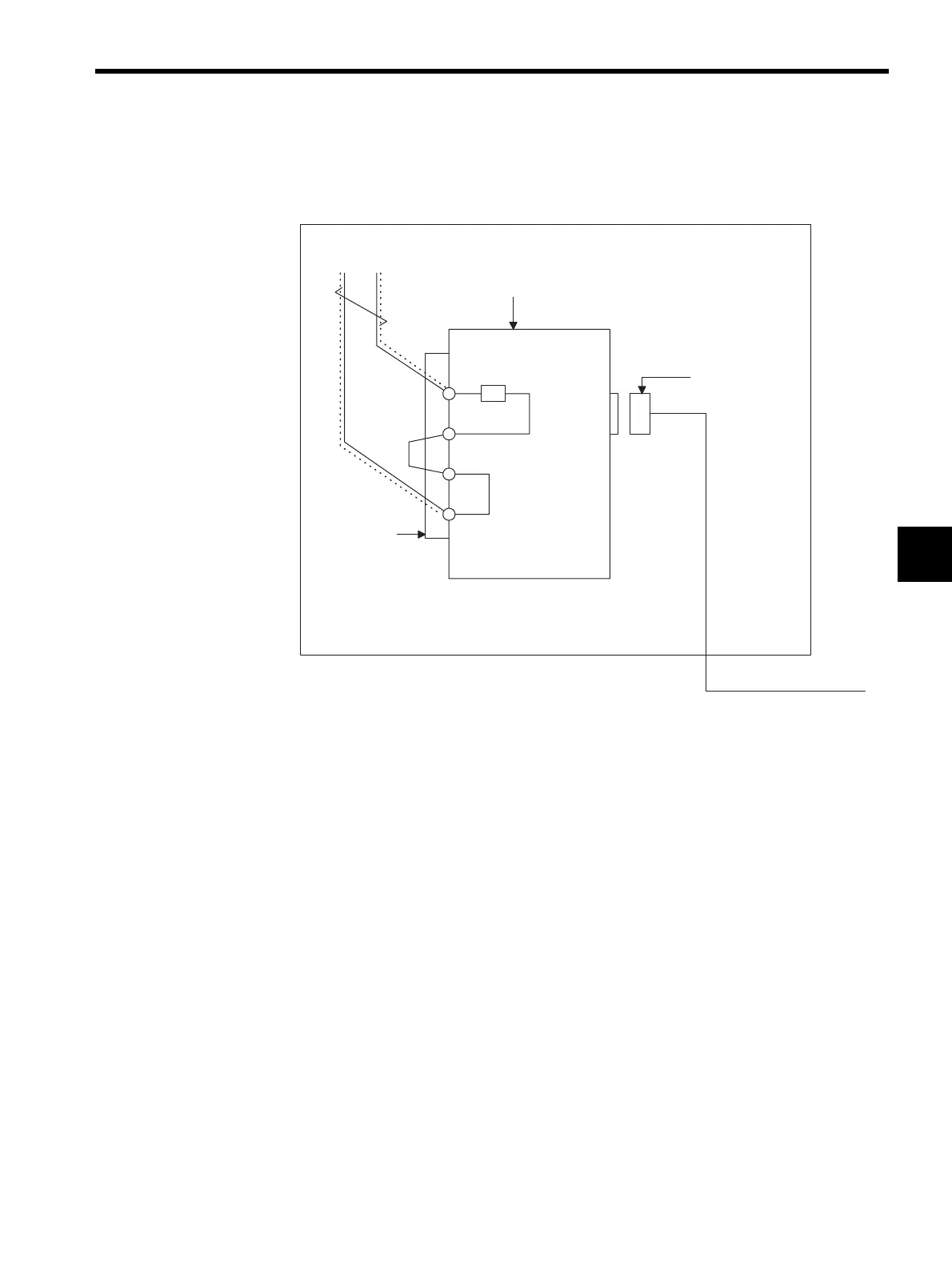

Fig. D.6 CP-215 Repeater-TP Transmission Line Connection Example
• Connect the in-panel twisted-pair cable (YS-IPEV-SB, 1P × 0.3 mm
2
, manufactured by
Fujikura Corporation) with an MR-8LM(G) connector to the CN1 transmission connec-
tor on the Repeater.
• Connect pins 8 and 1 of the CN1 transmission connector on the Repeater to SRD+ and
SRD-, respectively.
• Connect an H-PCF optical fiber cable equipped with a two-core optical connector to the
CN3 optical transmission connector on the Repeater.
• If the Repeater is located at the end of the transmission line, short-circuit pins 4 and 5 of
the CN1 to connect the internal 75Ω terminating resistance.
1
4
5
8
75Ω
SRD+ SRD-
215IF in-panel cable
CP-215 Repeater-TP
CN3
Two-core optical
connector
H-PCF optical fiber cable
CN1
MR-8LM (G)
To Next Page
