5 215IF Module
5.6.3 Example of a Network Configuration Using the Relay Function
5-34

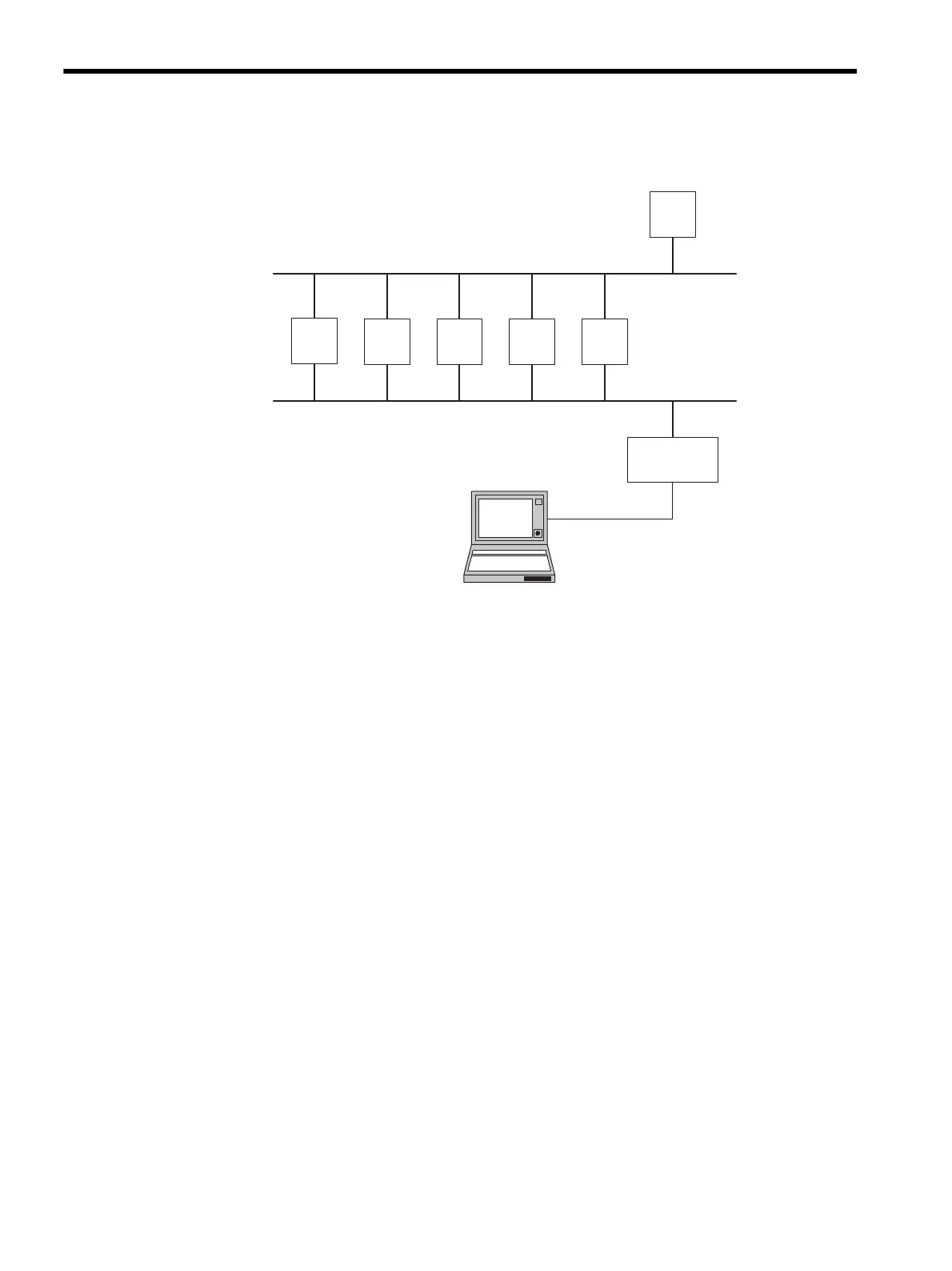

 215IF Network Configuration 3
Settings
1. NW#1 ST#6
NW#2 ST#15
• Message Relay Function: Yes
• No. of Relayed Network 1: 1 to 2
• No. of Relayed Network 2: Not set
2. NW#1 ST#2 to ST#5
NW#2 ST#11 to ST#14
• Message Relay Function: No
• No. of Relayed Network 1: Not set
• No. of Relayed Network 2: Not set
3. NW#1 ST#1
• Message Relay Function: Yes
• No. of Relayed Network 1: 1 to 1
• No. of Relayed Network 2: Not set
4. NW# ST#10
• Message Relay Function: Yes
• No. of Relayed Network 1: 2 to 2
• No. of Relayed Network 2: Not set
ST#2 ST#3 ST#4 ST#5
ST#6
RS-232C
CP-215
NW#1
MPE720
ST#15
NW#2
ST#10
ST#1
ST#11 ST#12 ST#13 ST#14
CP-215
