5.3 Key Operations and Display
5-7

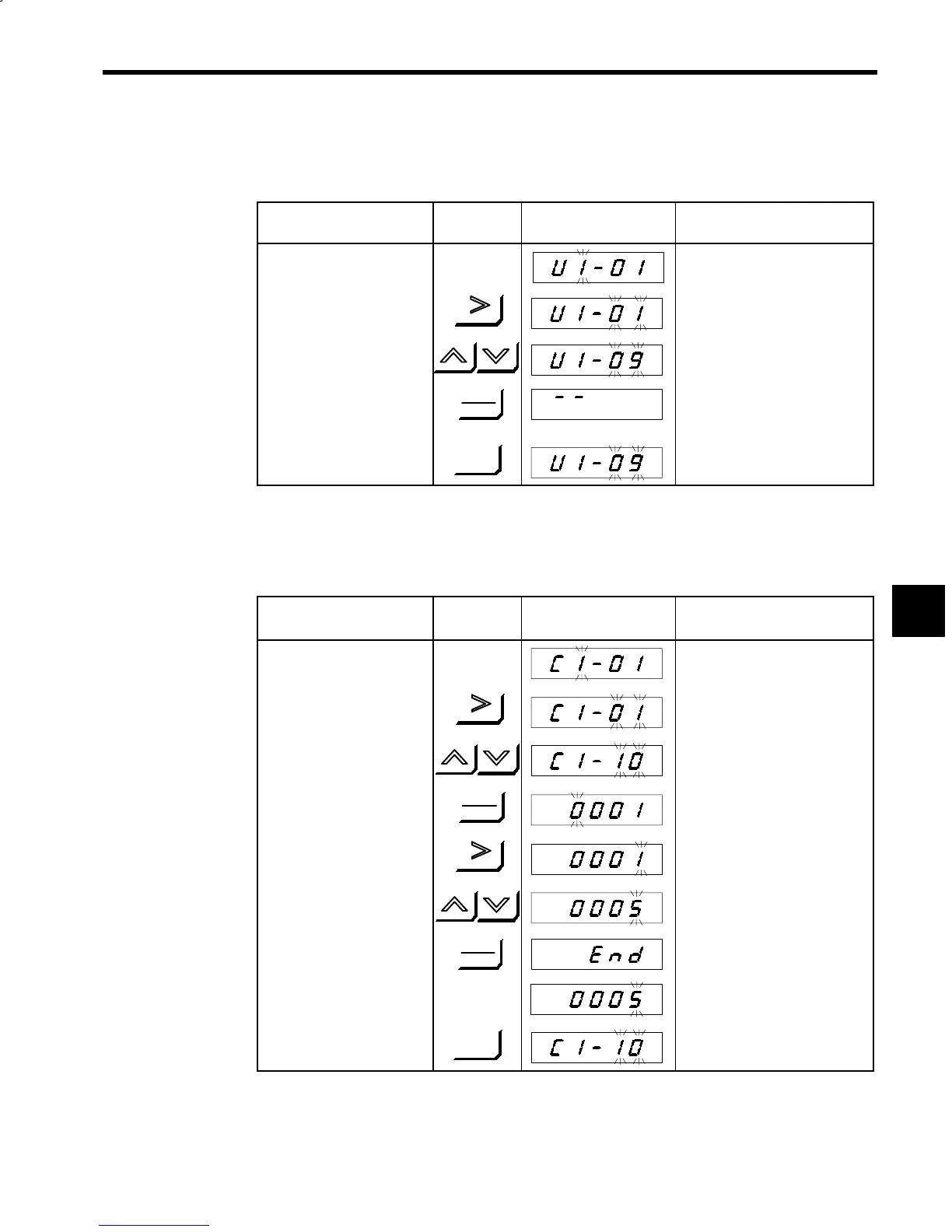

5.3.3 Operation Status Display Mode
To check data in operation status display mode, do as follows. The following shows the example where
U1-09 (sequence input signal status) is to be changed.
Description
Key
Sequence
Digital Operator Display Remarks
S U1-01 is displayed.
S Move blinking cursor to the
data No.
RESET
Depress [>] key once more to return
the blinking cursor.
S Select U1-09.
S Display U1-09 data con-
tents.
DATA
ENTER
The display example is the status
when [RDY] and [EMG] signals are
ON.
S Return to operation status
No. display
DSPL
For explanations of operation status display, refer to Chapter 11 Operating Status Displays.
5.3.4 Control Constant Display Mode
To check data or set/change a constant in control constant display mode, do as follow. The following shows
the example where C1-10 (soft-start time) is to be changed.
Description
Key
Sequence
Digital Operator Display Remarks
S C1-01 is displayed.
S Move blinking cursor to the
data No.
RESET
Depress [>] key once more to return
the blinking cursor.
S Select C1-10.
S Display C1-10 data con-
tents.
DATA
ENTER

S Select data line to be
changed.
RESET

S Change set value. (1→5)

S Write-in set value.
DATA
ENTER
Displayed for 0.5 sec.*
S Press DATA/ENTER Key
until “End” is displayed.

Returns to previous display before
write-in.
S Return to control constant
No. display.
DSPL
Note: When data outside the input range are set, “End” will not appear on the display and all data lines
will continue blinking even when the [DATA/ENTER] is held down. To correct this condition,
depress [DSPL] key returning to the data number display and correct the settings.
Refer to Chapter 10 Control Constants for contents of control constants.
