YASKAWA VS-656MR5

Handling

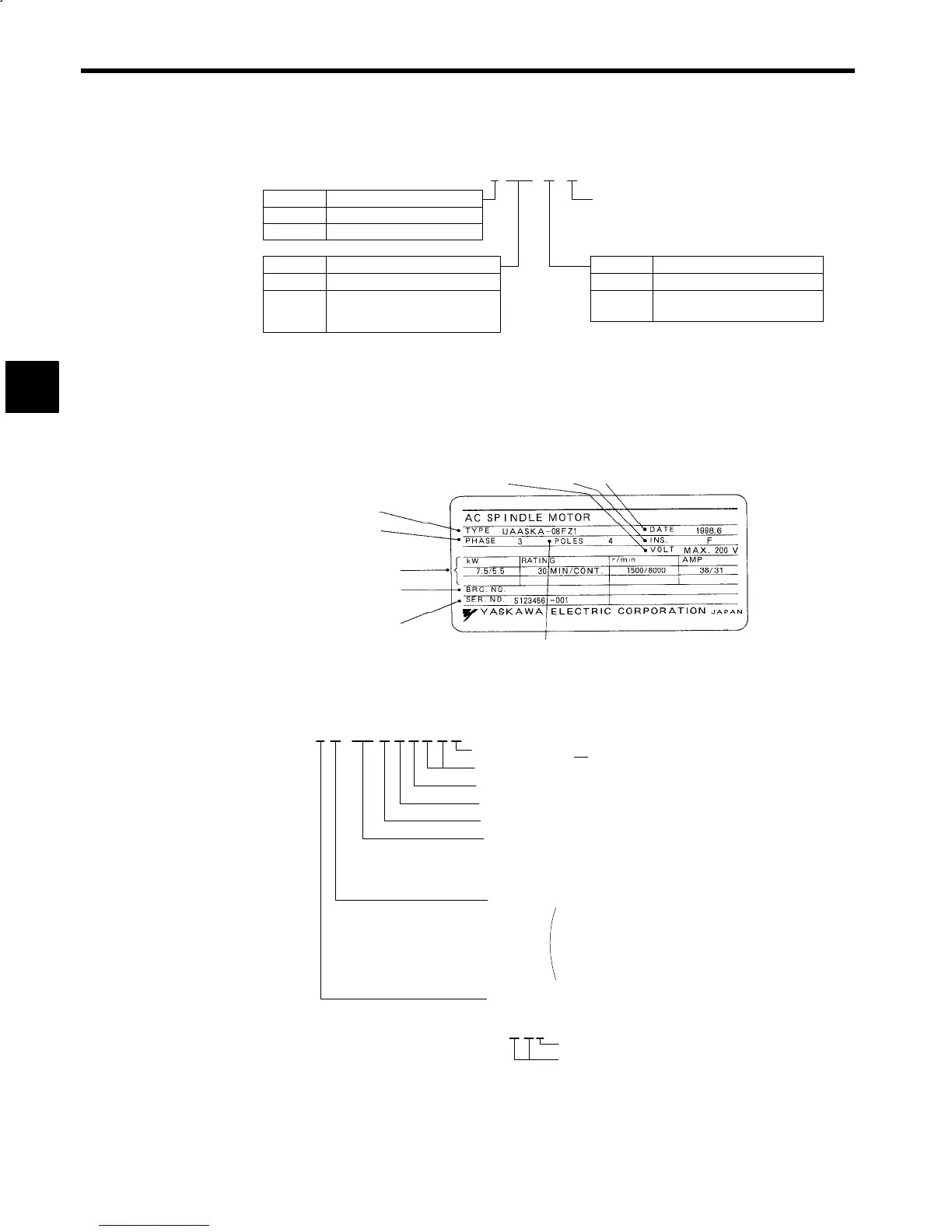

2.1.3 Motor Nameplate Information
2-4
J
Converter Specification Designation
20115E
Revision symbol
Symbol
Enclosure
External heatsink
cooling type
0 Open chassis type
5
Voltage
2 3-phase 200 V class
Symbol
Symbol Max. applicable motor output
4 3-phase 400 V class
3P7 5HP (3.7kW)
5P5
to
045
7.5HP (5.5kW)
to
60HP (45kW)
(“P” indicates a decimal point.)
* For special specifications, a spec. sheet No.
appears on the nameplate.
Fig 2.6 Converter Model Numbers
2.1.3 Motor Nameplate Information
J
Nameplate Information
Rated voltage
Insulation class
Month and year of manufacture
Model number
Number of phases
Ratings
Bearing number
(load side/motor side)
Serial number
Number of poles
Fig 2.7 Motor Nameplate
J
Motor Model Designations
Voltage class ( : 200 V, E: 400 V)
Other specifications
Installation method (1: Flange-mounted; 3: Foot-mounted)
Detector specifications (Z: With home position)
Design order (F: M5 standard; L: High speed)
Capacity (04: 3.7/2.2 kW to 45: 45/37 kW)
Output characteristics
A: Base speed: 1,500 min
−1
B: Wide range output 1:12 (Winding selection)
D: Other wide range output (Winding selection)
E: Base speed: 3,000 min
−1
J: Base speed: 1,150 min
−1
Cooling method (K: Forced air cooling)
Other specifications: None
UAASKj−jjjjjjjj
UAASKA−22FZ3OOE
(45:45/37 kW)
400 V
Example:
:
:
Fig 2.8 Motor Model Numbers
2
