YASKAWA VS-656MR5

Magnetic Sensor Orientation Control
9.4.1 Magnetic Sensor Orientation Card (ETC62614X)
9-6
9.4 Dimensions

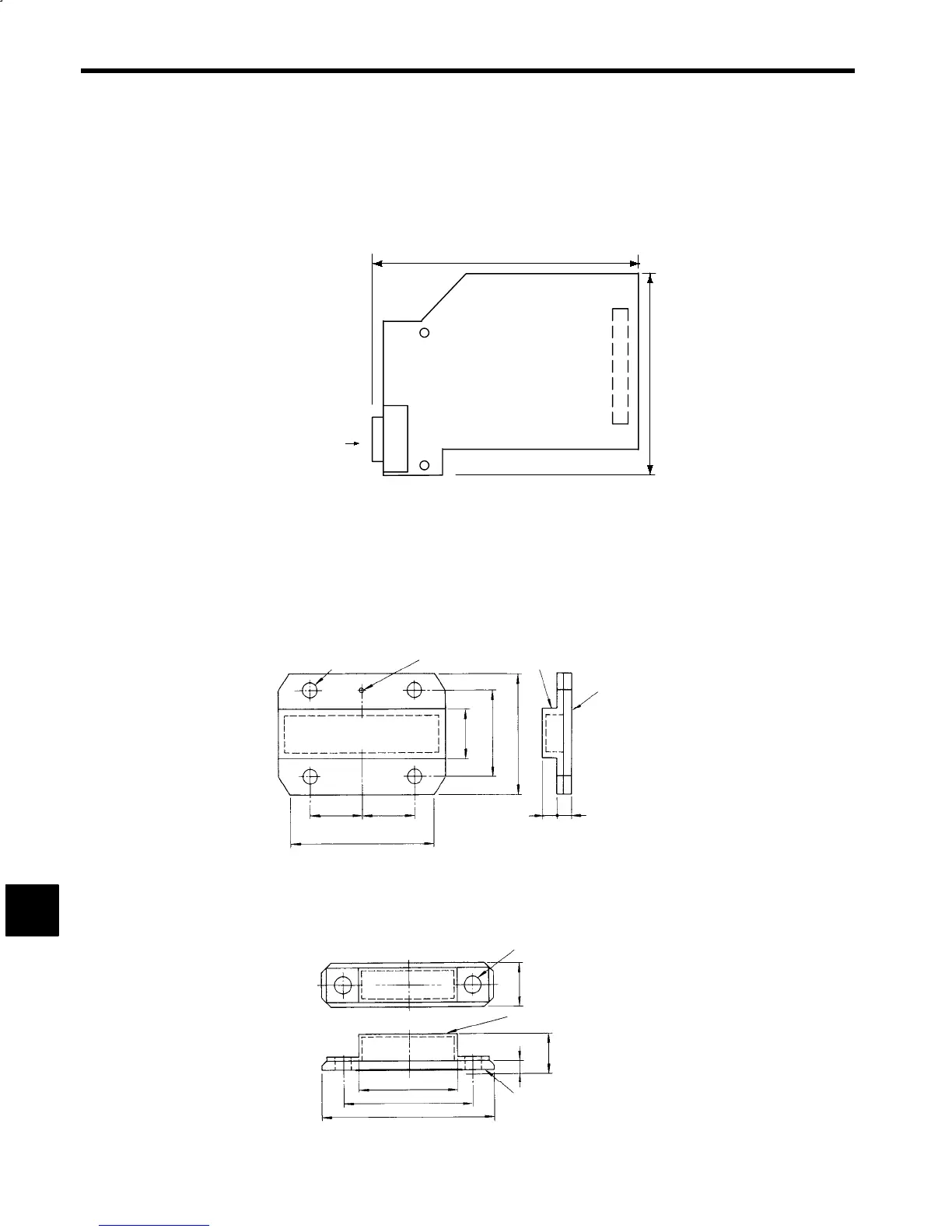

The dimensions for the Orientation Card, Magnet, and Magnetic Sensor are shown in the following diagrams.
9.4.1 Magnetic Sensor Orientation Card (ETC62614X)
(Unit: mm)
10CN
91
123
Note: The Magnetic Sensor Orientation Card can be shipped after being mounted to the Unit at
the factory.
Fig 9.3 Dimensions of Magnetic Sensor Orientation Card
9.4.2 Magnet
J MG-1378BS
Four, 4.3-dia mounting holes
Differential standard
hole, dia: 1.0
Stainless steel cover 0.5 t
MG−1378−BS
S
N
MACOME CORP
15
15
50
SPC 2.0 t
5
2.5
12
22
30
(Unit: mm)
Fig 9.4 Dimensions of MG-1378BS Magnet
J MG-1444S
Stainless steel cover 0.5 t
Base plate
Name
plate
S
N
30
40
50
2
7
10
2-φ4.3
(Unit: mm)
Fig 9.5 Dimensions of MG-1444S Magnet
9
