6.4 Constant Settings
6 -15
6.4.15 BCD Stop Position Reference Resolution (P
BCD
: C2-12 and C3-12)
Make sure the Motor has stopped before setting the BCD stop position reference resolution.
The BCD stop position reference resolution can be set between 0.5_ and 180.0_, but the stop position refer-
ence must be within ±360_. For example, when the set value = 90_, the resolution will be 90_ with a stop
position reference of 1, 180_ with a stop position reference of 2, 0_ with a stop position reference of 4,
and 90_ with a stop position reference of 5.
When C2-12 or C3-12 = 90
−10
−5
+360°
−360°
0
5
10

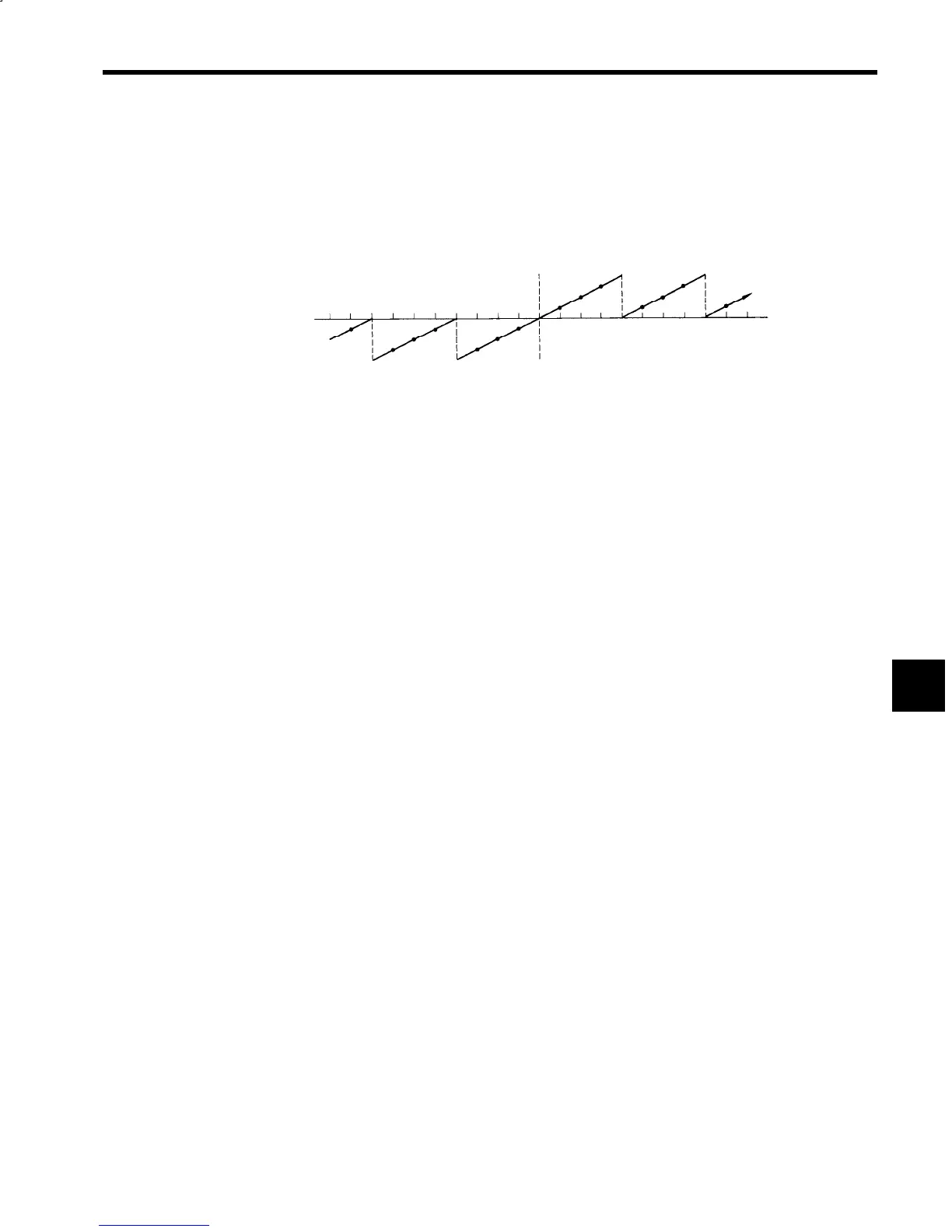

Fig 6.11 Stop Position Reference and Stop Position
