1.2 Identifying Components
This section provides the names of Converter and Inverter components.
1.2.1 Converter
The appearance of the Converter and the names of its components are shown below.
Nameplate
CHARGE LED
Lower Cover
Front Cover
A1/r
A2/t
R/L1
S/L2 T/L3
P1
N1
CHARGE
88
N1
P1
1CN
5CN
P
N
+
−
R
L1
S
L2
T
L3
A1
r
A2
t
P/¨
N/©
Mounting Base
Case
Upper Cover
4-Mounting Holes
Heatsink
Control Power
Supply Output
7-segment LED display
5CN
Main Circuit
DC Output
Control Power
Supply Input
Main Circuit
Power Supply Input
Grounding
Upper and Lower Covers Opened
1CN (Not used.)

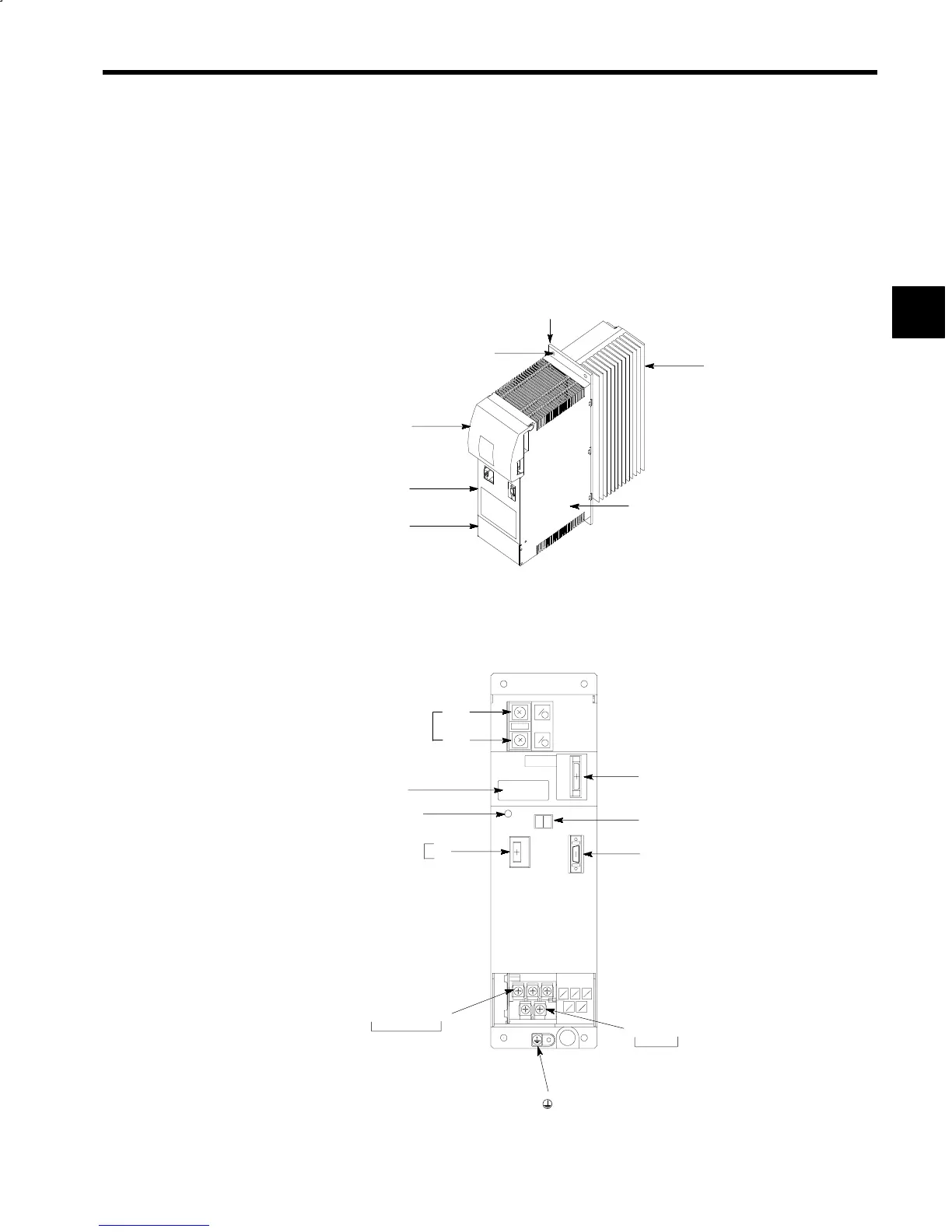

Fig 1.1 Appearance of Converter, Model CIMR-MR5A27P55 (200 V, 7.5 kW)
