YASKAWA VS-656MR5

Appendix

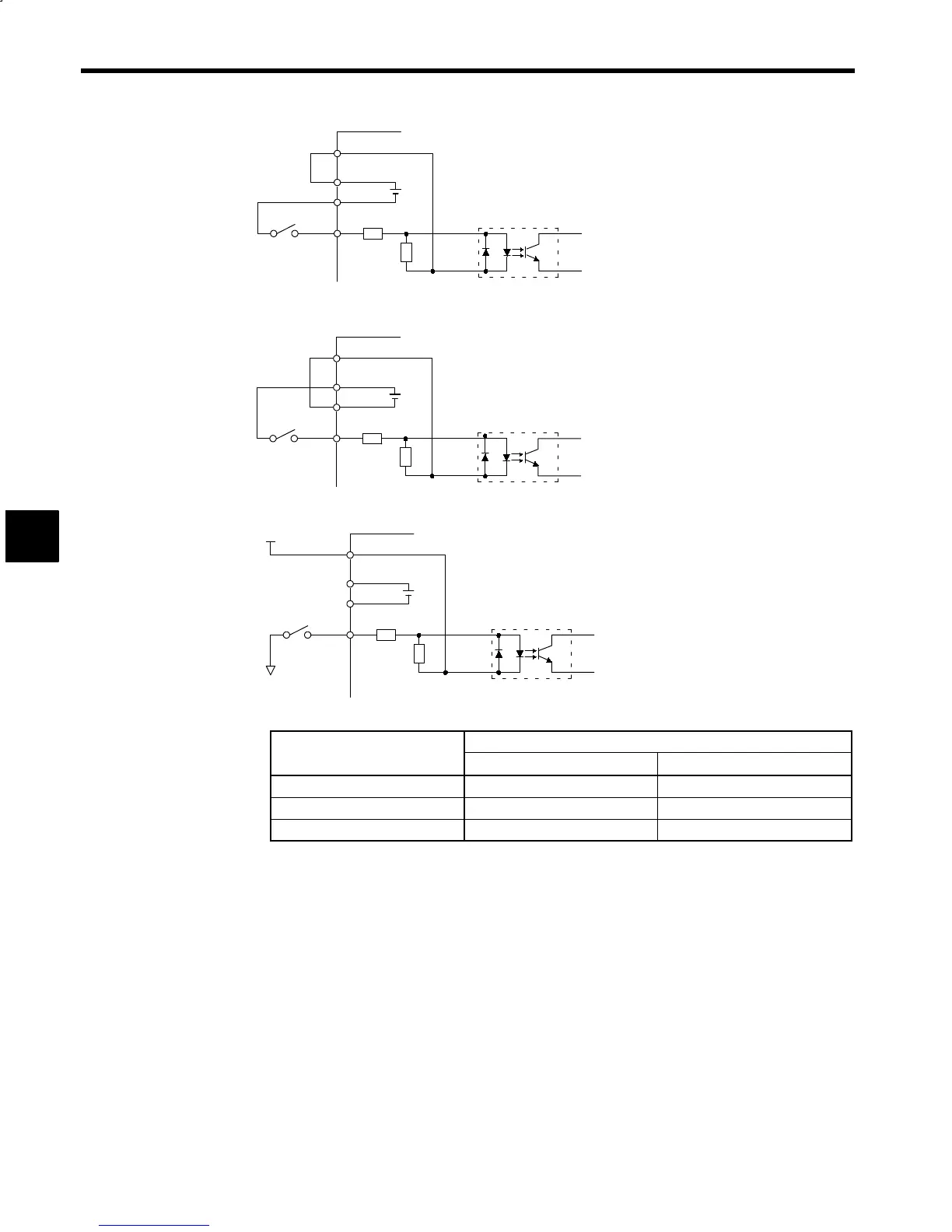

15.4.1 Sequence Input Signals
15 -20
EXTCOM
24VCOM
0VCOM
3.3 kΩ
390 Ω
(a) 0 V Common
EXTCOM
24VCOM
0VCOM
3.3 kΩ
390 Ω
(b) 24 V Common
EXTCOM
24VCOM
0VCOM
3.3 kΩ
390 Ω
0 V (or +24 V)
+24 V (or 0 V)
(c) External Common
Signal Name
Pin Number
1CN 6CN
EXTCOM
31 19, 20, 21
24VCOM
32 22, 23
0VCOM
33 24, 25
Fig 15.21 Input Method Selection
15
