YASKAWA VS-656MR5

Wiring

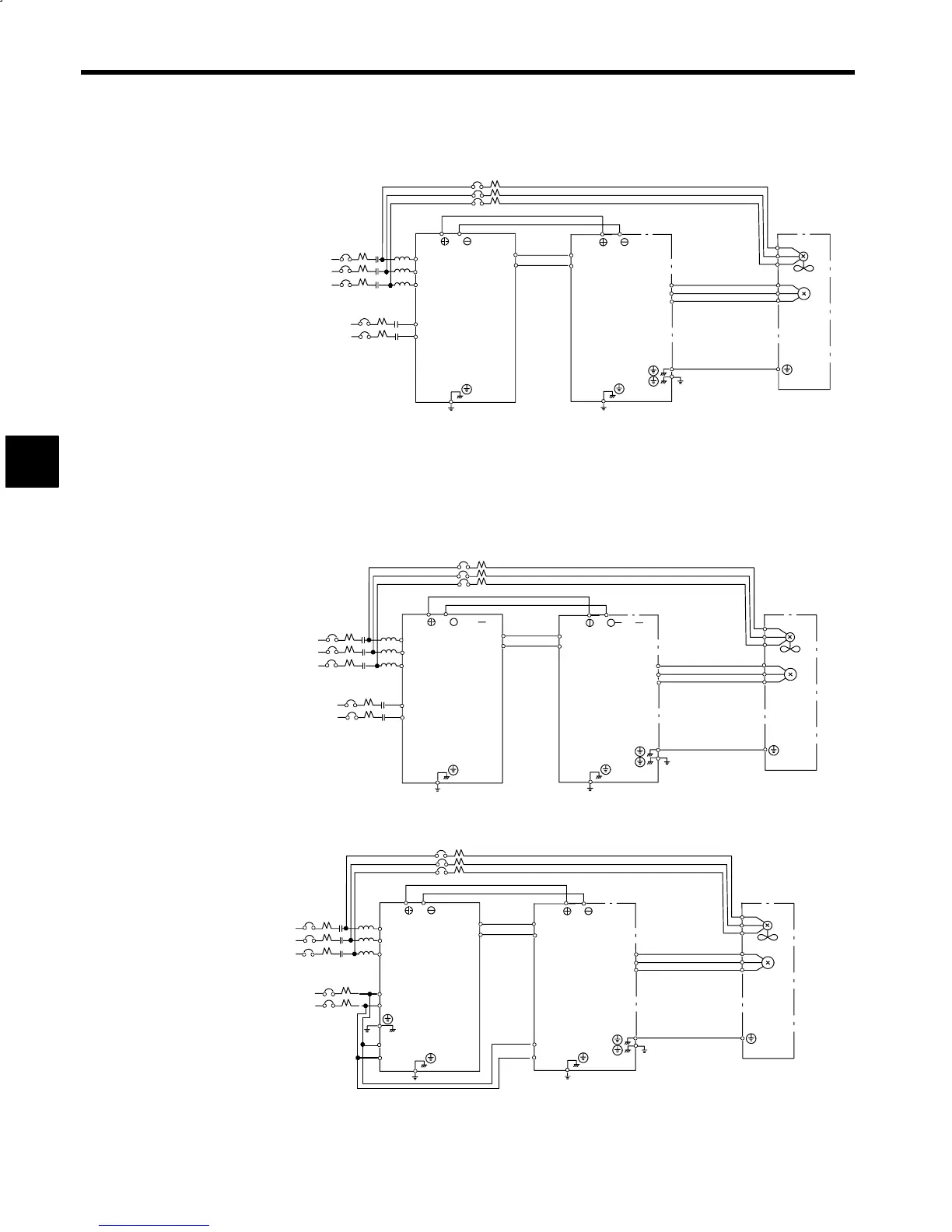

3.3.4 Main Circuit Connection Diagrams
3 -20
J 400 V Class External Heatsink Cooling Type
3-phase
400 VAC
Single-phase
200 VAC
Converter (VS-656MR5)
CIMR-MR5j45P55 to 40455
3-phase
400 VAC
Motor
Cooling fan
Inverter (VS-626M5)
CIMR-M5j45P55 to 40455
R
S
T
r
t
R/L1
S/L2
T/L3
A1/r
A2/t
VS−656MR5
P/ N/
VS−626M5
P/ N/
P1
N1
P1
N1
U/T1
V/T2
W/T3
Z1
Z2
Z3
IM
U
V
W
Note: No ground terminals are provided on the 45P5 through 47P5 models.
Fig 3.11 Main Circuit Connections for 400 V Class External Heatsink Cooling Type
