3.4.6 Precautions for Control Signal Wiring
3 -34
D
Use twisted shielded wires for motor encoder signal lines and connect both ends as shown below.
Shielded Sheath
Armor
To inverter shielded
sheath terminal
Insulate these parts
with insulating tape.
To encoder shielded
sheath terminal

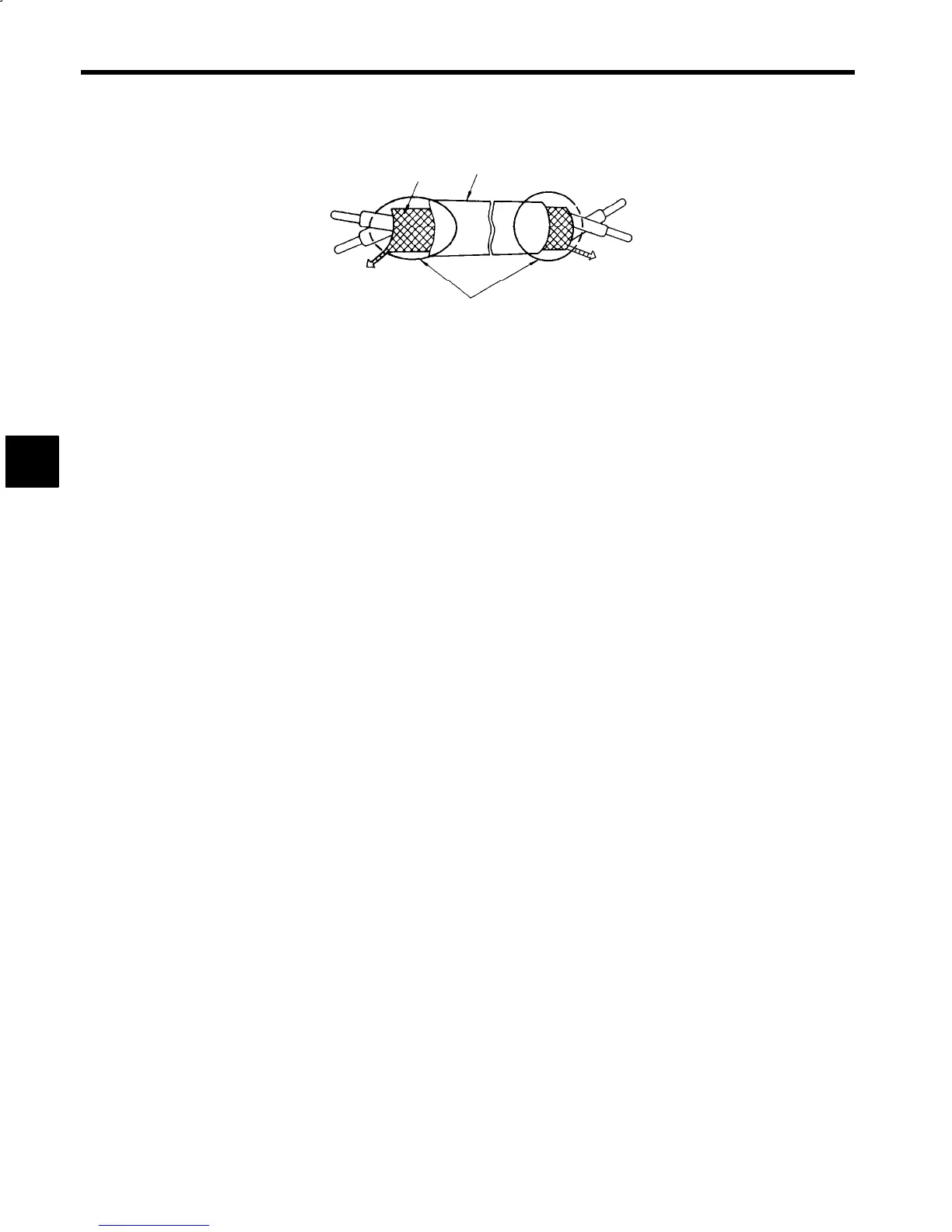

Fig 3.23 Shielded Wire Termination (Shielded at Both Ends)
