Chapter 3 PERFORMING MEASUREMENTS
3-10

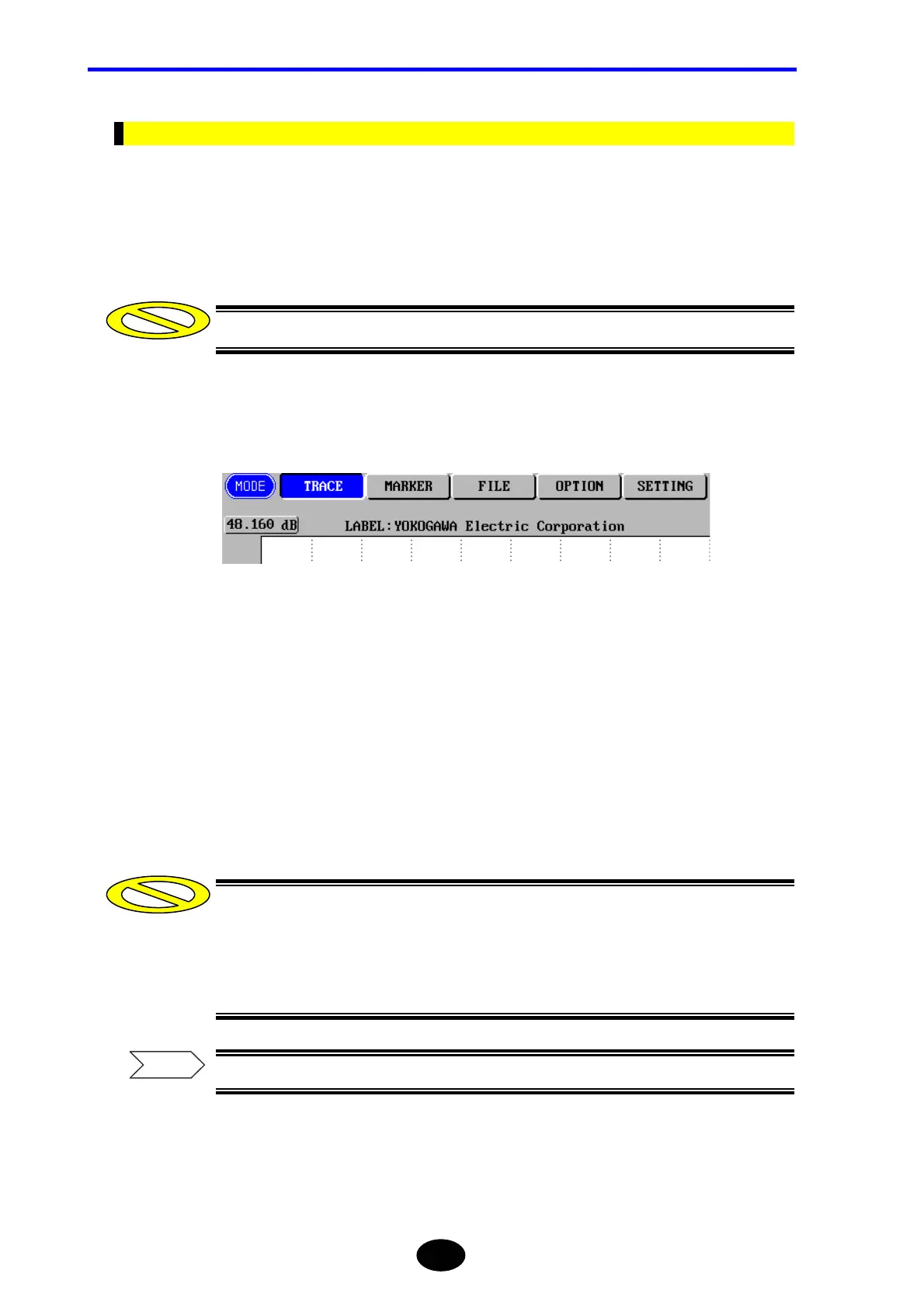

Displaying the Measurement Condition Change Window
This section explains how to display the window by which the measurement conditions
can be changed.
1. Make sure there is no measurement currently in progress.
If measurement is in progress, some items cannot be changed.
2. Press [MODE] to locate the cursor to “TRACE”.
3. Press [F1](MEASURE CONDITION).
The following conditions can be changed using [F1] to [F4].
• Wavelength
• Distance range
• Pulse width
• Attenuation
•The distance range, pulse width and attenuation cannot be changed if “AUTO
RANGE” has been selected for AUTO SET.
•The attenuation cannot be changed if “AUTO ATTN” has been selected for AUTO
SET.
For details on measurement condition auto setting, refer to page 3-14.
Caution
Caution
Refer
To Next Page
