Chapter 7 USING USEFUL FUNCTIONS
7-43

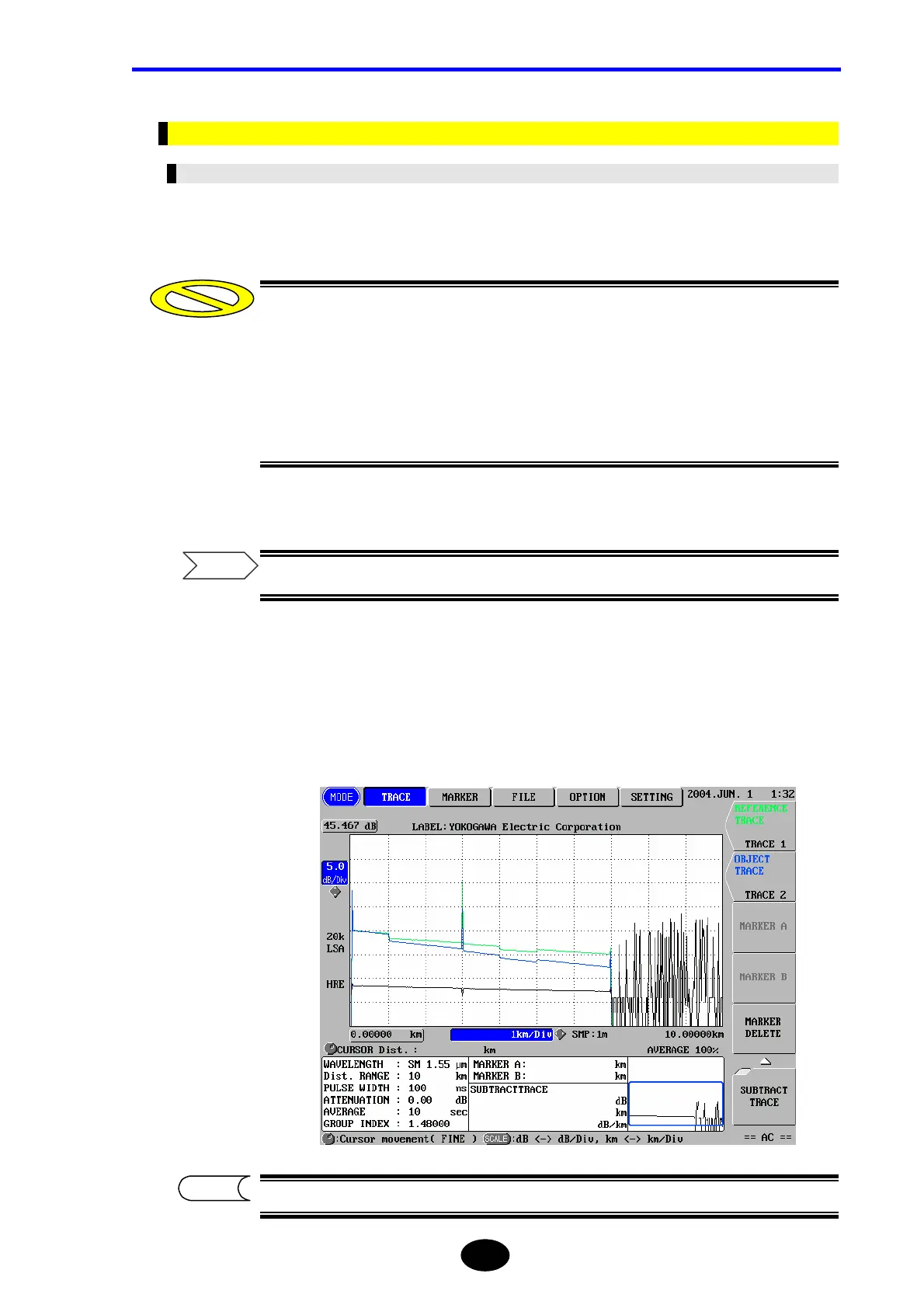

Displaying the Subtract Trace of Two Traces
Displaying the Subtract Trace
This section explains how to display the subtract trace of two traces (reference trace,
target trace).
The subtract trace cannot be displayed unless the following measurement
conditions are the same for both the reference and target traces.
•Distance range
•Sampling resolution
•Actual data size
1. Display the traces.
For the method of displaying two or more traces, refer to page 6-3.
2. Press [F4] (SUBTRACT TRACE)
*1
.
The subtract trace will be displayed.
*1: If the window (page 3-71) is currently displayed, the subtract trace can be
displayed by pressing [F5] (MULTI TRACE FUNCTION) instead of [F4]
(SUBTRACT TRACE).
The reference and object traces can be changed by pressing [F1] and [F2].
TIP
Refer
Caution
To Next Page
