• If the HOLD Key Is Pressed
The GS200 generates 4 V for the remaining 0.5 seconds as specified by the step
that was in the mid-execution state, generates 5 V for 1 second, and then continues
executing the rest of the program.
Operations When the Program Trigger Is Set to M.End (/MON option)
When measurement completes, the GS200 proceeds to the next step in the program and
changes the source level. If you set the program trigger to measurement end (M.End),
and the measurement trigger to source change completion (Ready), the program
executes the source and measurement operations of each step in the minimum time
required.
The RUN, STEP, and HOLD keys and external triggers are disabled. Additionally, the
program interval setting is ignored.

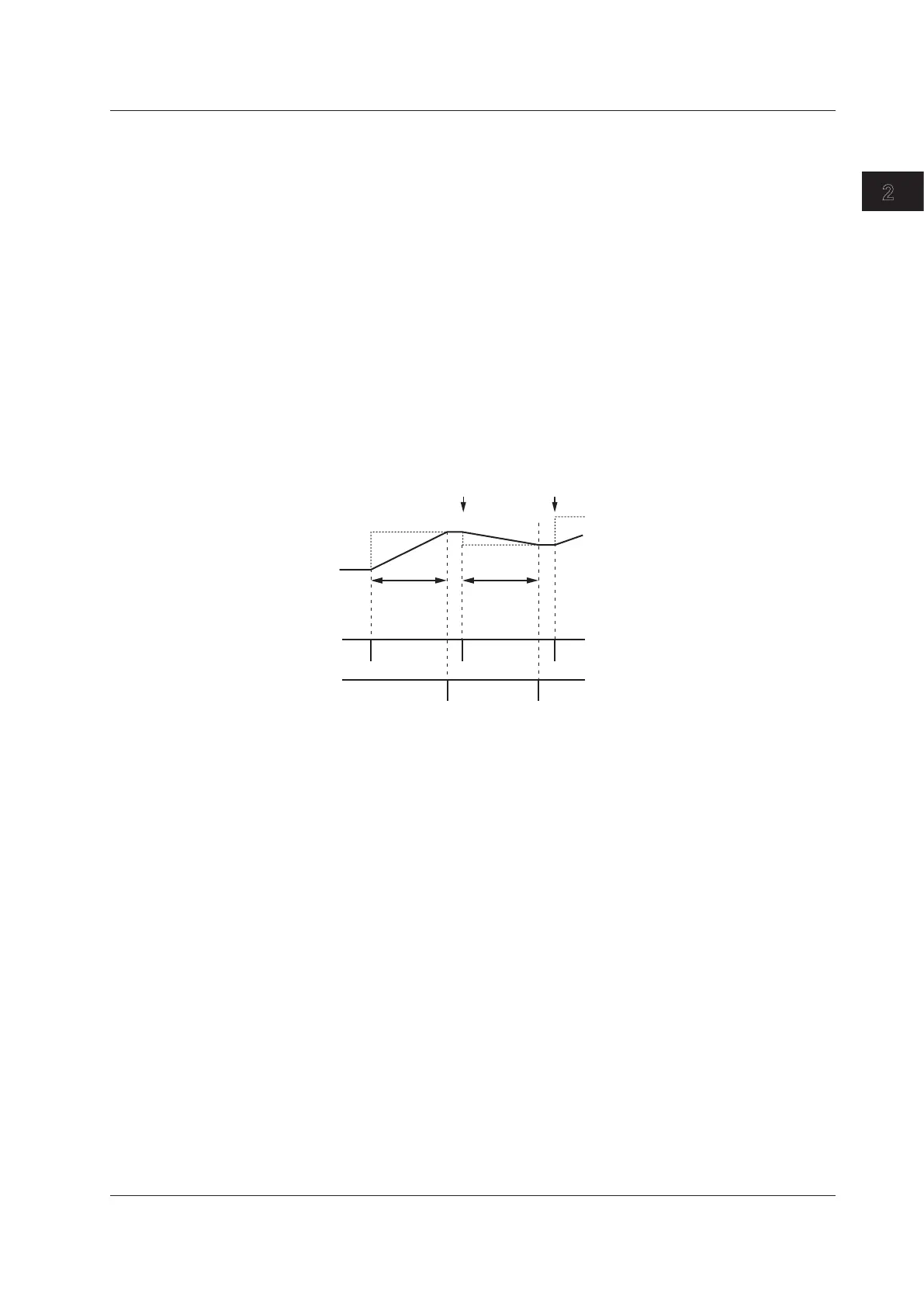

Changes to the Control Signals
The trigger busy (TrigBusy) and source change completion (Ready) signals change as
shown in the following example.
Ts: Program slope time
M.End
TrigBusy
Ready
Ts
M.End
Ts
The low pulse that indicates source change completion (Ready) is generated
10 ms after Ts elapses.
2.4 Programs
2-15
IM GS210-01EN
