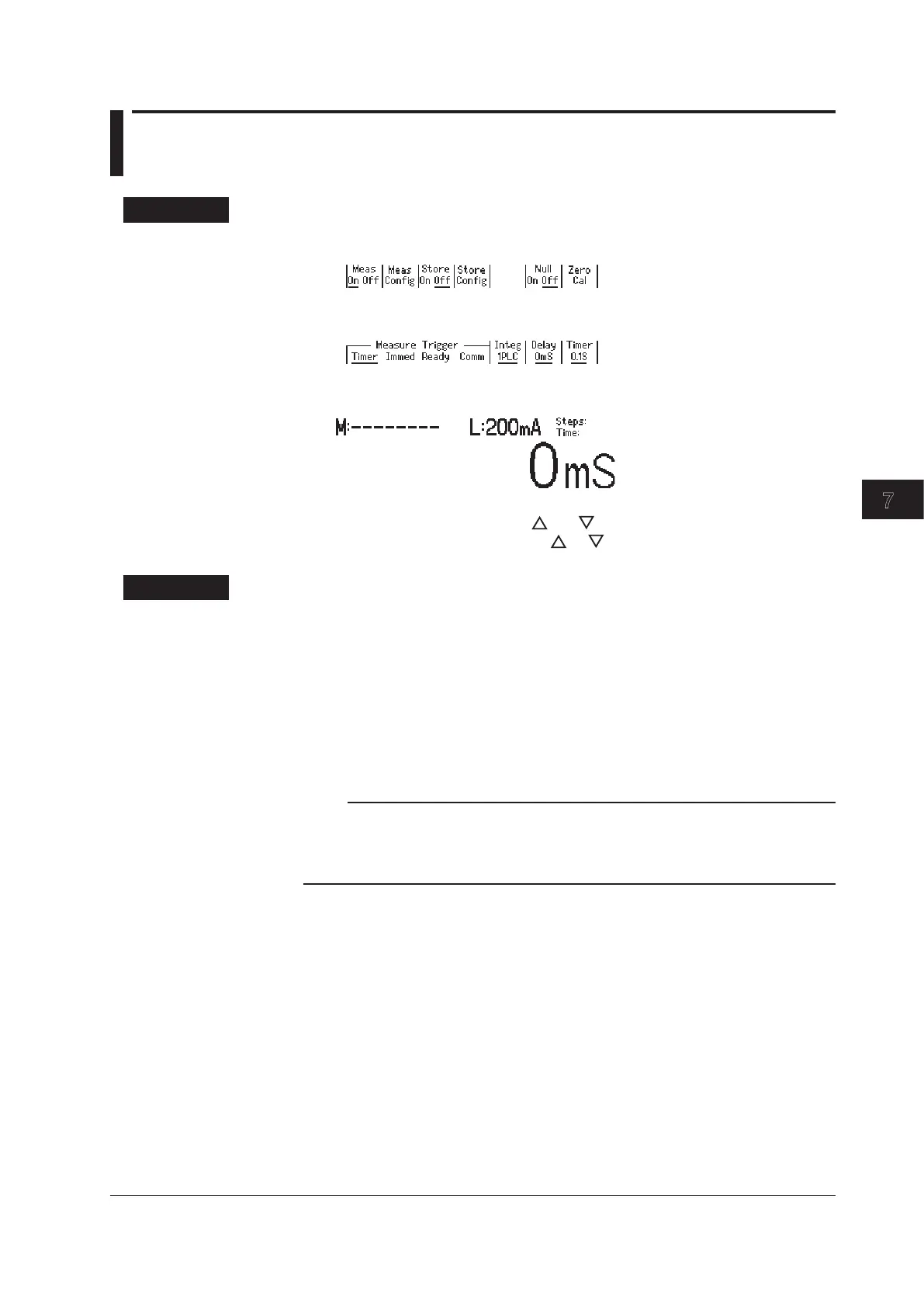

7.3 Setting the Measurement Delay
Procedure
1.
Press MEASURE to display the following menu.
2.
Press the Meas Config soft key to display the following menu.
3.
Press the Delay soft key to display the measurement delay setup screen.
4.
In up/down key mode, press the and keys to set the measurement delay. In
keypad mode, press NUM LOCK +
or to set the measurement delay.
Explanation
Measurement Delay
The measurement delay is the time that the GS200 waits from when the measurement
trigger is generated until measurement actually starts. Set this delay if you want to insert
a delay after the source level is changed until the measurement is actually started to
allow the DUT to stabilize. For details on the measurement delay, see section 2.5.
Range
0 ms to 999999 ms
Note
The time from when the source trigger is applied to when the source level stabilizes varies
depending on the load, source range, and limiter level. When you adjust the length of the
measurement delay, keep these in mind in addition to the time needed for the DUT to stabilize
after the source level is applied.
<<Corresponding Command Mnemonic>>
:SENSe:DELay
<time>
|MINimum|MAXimum
