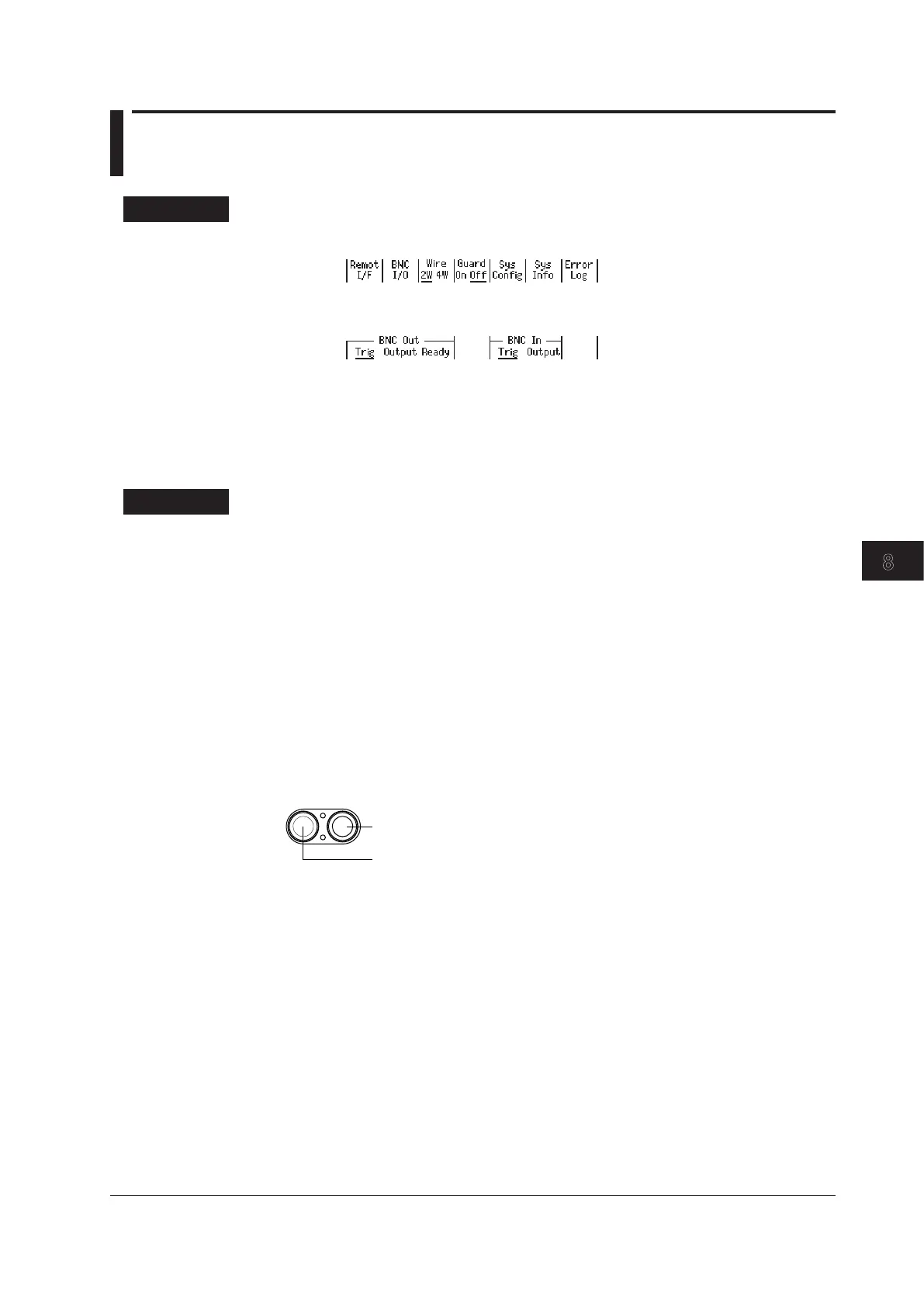

8.1 Synchronous Operation Using the BNC I/O
Terminals (IN and OUT)
Procedure
1.
Press UTILITY to display the following menu.
2.
Press the BNC I/O soft key to display the following menu.
3.
Set the BNC OUT terminal’s signal by selecting Trig, Output, or Ready on the
BNC Out menu.
4.
Set the BNC IN terminal’s signal by selecting Trig or Output on the BNC In menu.
Explanation
For details on the BNC I/O terminals, see section 2.7.
The GS200 can transmit or receive the following signals through the BNC I/O terminals
on the rear panel.
• Output terminal (OUT)
Trig: The TrigBusy signal (see section 2.4)
Output: An output signal (see section 5.5)
Ready: The source change completion signal (see section
2.6)
• Input terminal (IN)
Trig: The STEP trigger for program execution (see
section 6.4)
Output:
An output signal
BNC I/O Terminals
Input terminal
Output terminal
IN
OUT
