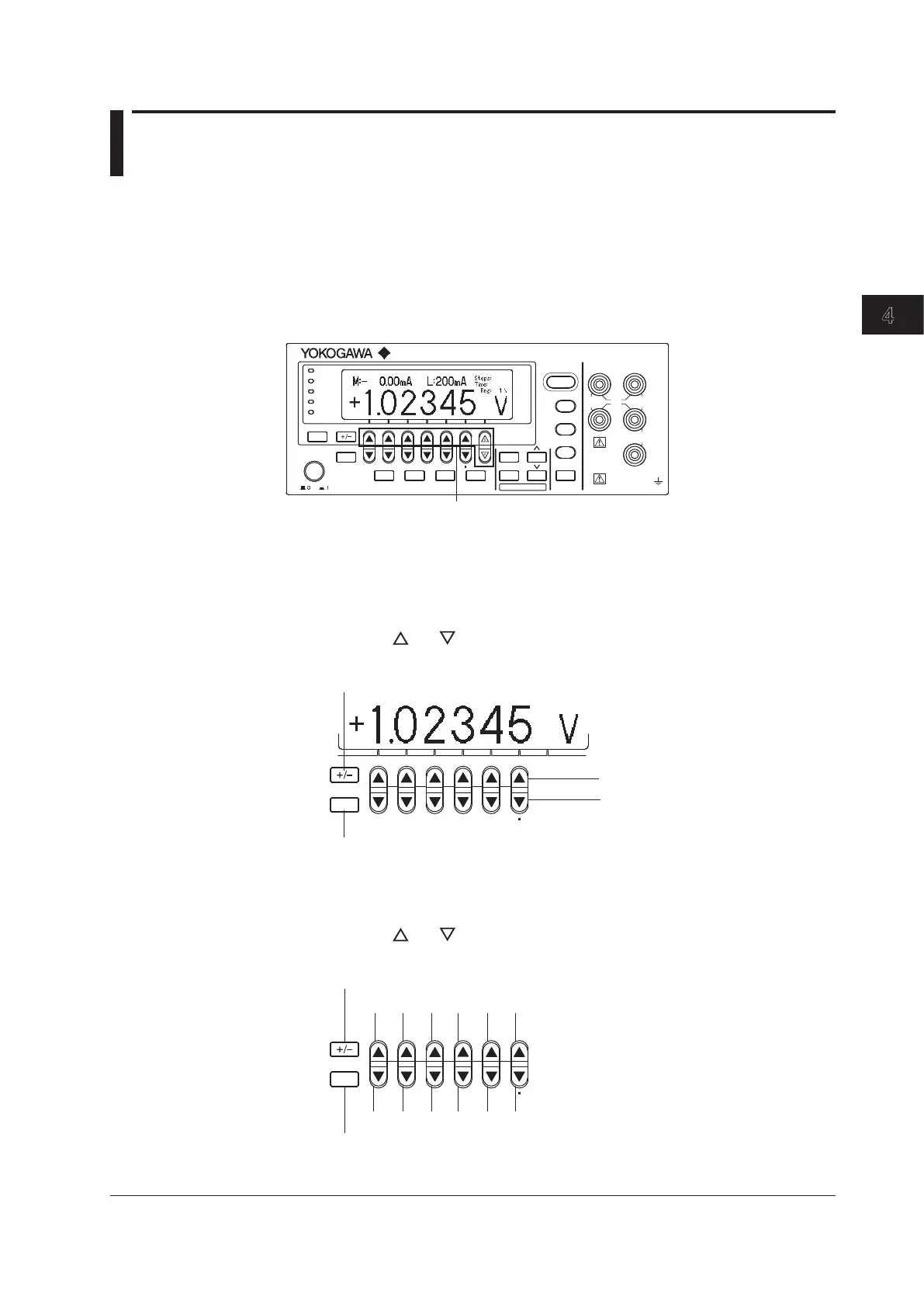

4.1 Basic Key Operations and How to Enter Values
Basic Key Operations
Setting Keys
Press a setting key such as UTILITY or MEASURE to display a soft key menu at the
bottom of the screen.
Soft Keys
Press a soft key to make a choice on the soft key menu or to execute an operation.
Soft keys
GS200
DC VOLTAGE/CURRENT SOURCE
SAMPLE
ERROR
REPEAT
STORE
REMOTE
ERROR
LOCAL
ESC
POWER
NUM
LOCK
1 2 3 4 5 BS RANGE
6 7 8 9 0
UTILITY SETUP LIMIT
MEASURE
PROGRAM
END
DEL
HOLD
STEP
RUN
PROGRAM
OUTPUT
V
mV
mA
SRQ
ENTER
SENSE OUTPUT
32V
MAX
0.5V
MAX
32V
200mA
MAX
Hi
Lo
42V
10mA
PEAK
G
G TERM 250 V PEAK TO
How to Enter Values
There are two modes for entering values: up/down key mode and keypad mode.
Entering Values in Up/Down Key Mode
1.
Press the and keys below each digit that is shown on the display to enter
the value.
Increases the corresponding digit
Press the +/– key to change the value’s sign.
Decreases the corresponding digit
The NUM LOCK key is off in up/down key mode.
NUM
LOCK
1 2 3 4 5 BS
6 7 8 9 0
Entering Values in Keypad Mode
1.
Press NUM LOCK. The NUM LOCK key illuminates.
2.
Press the and keys below the display to enter numbers 0 to 9 and the
period.
Press the +/– key to change the value’s sign.
The NUM LOCK key illuminates in keypad mode.
1
2
3
4
5
Deletes one character
6
7
8
9
0
. (decimal point)
NUM
LOCK
1 2 3 4 5 BS
6 7 8 9 0
Chapter 4 Common Settings
4-1
IM GS210-01EN
Common Settings
